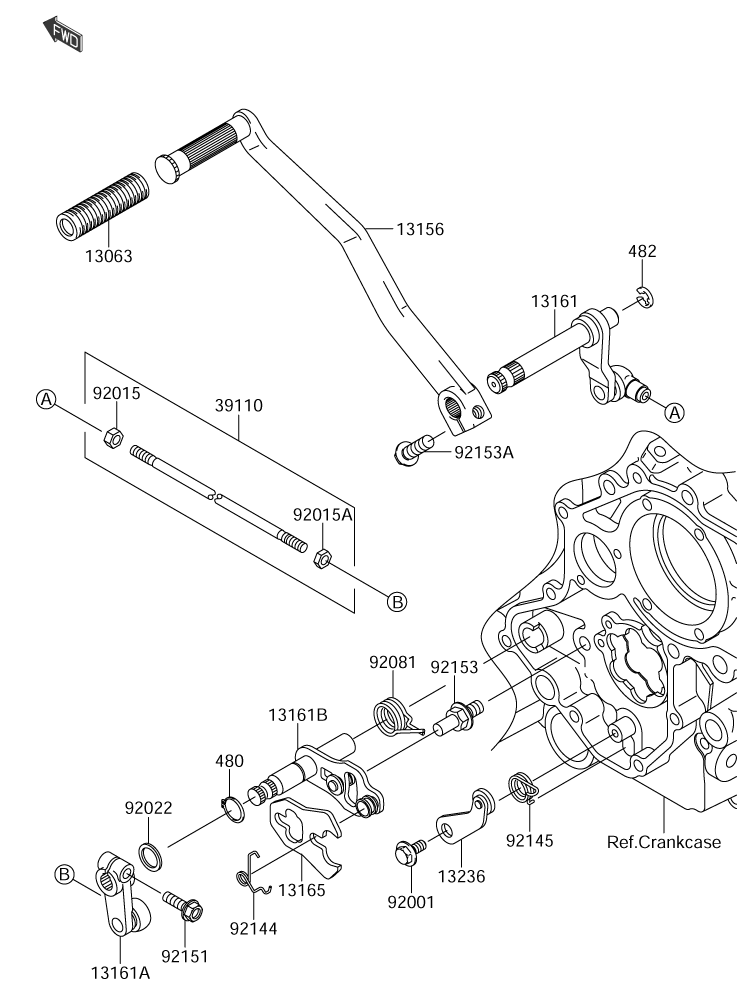

GEAR CHANGE MECHANISM для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
13063KK130-63002 DAMPER, PEDALDAMPER, PEDAL
-
13156K1315-60013 LEVER CHANGELEVER CHANGE
-
13161K1316-10006 LEVER COMP CHANGE SHAFTLEVER COMP CHANGE SHAFT
-
13161K1316-11253 LEVER COMP CHANGE SHAFTLEVER COMP CHANGE SHAFT
-
13161K1316-11254 LEVER COMP CHANGE SHAFTLEVER COMP CHANGE SHAFT
-
13165K1316-51120 PAWLPAWL
-
13236K1323-61126 LEVER COMP, POSITIONLEVER COMP, POSITION
-
39110K3911-01119 ROD ASSY TIEROD ASSY TIE
-
92001K9200-11715 BOLT, GEAR CHANGE LEVERBOLT, GEAR CHANGE LEVER
-
92015K9201-51443 NUT, 6MMNUT, 6MM
-
92015K9201-51444 NUT, LEFT HANDED, 6MMNUT, LEFT HANDED, 6MM
-
92022K9202-21224 WASHER, 13.2X20X0.5WASHER, 13.2X20X0.5
-
92081K9208-11869 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
-
92144K9214-41029 SPRINGSPRING
-
92145K9214-50008 SPRING, RETURNSPRING, RETURN
-
92151K9215-11226 BOLT, 6X20BOLT, 6X20
-
92153K9215-31076 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
92153K9215-31268 BOLT, 8X25BOLT, 8X25
-
480KK480-J1300 CIRCLIP TYPE C, 13MMCIRCLIP TYPE C, 13MM
-
482KK482-L0100 CIRCLIP TYPE E, 10MMCIRCLIP TYPE E, 10MM
