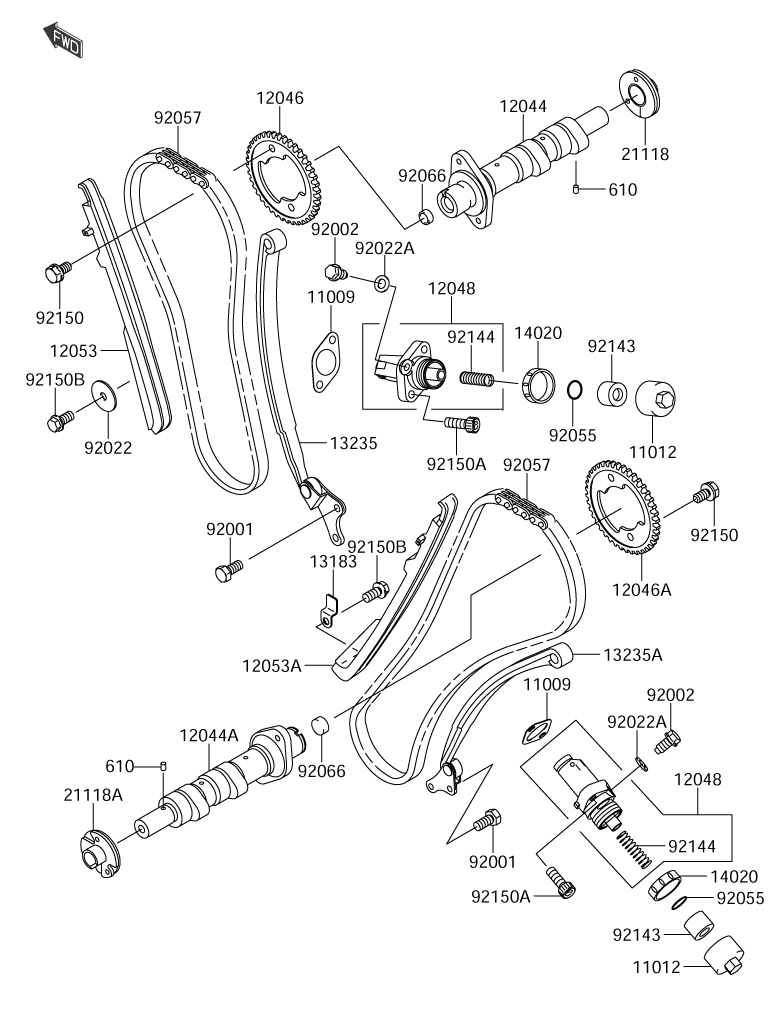

CAM CHAIN ASSY. W/ TENSIONER для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
11009K1100-91858 GASKET, TENSIONERGASKET, TENSIONER
-
11012K1101-21959 CAP, TENSIONERCAP, TENSIONER
-
12044K1204-41200 CAMSHAFT VALVE (FRONT)CAMSHAFT VALVE (FRONT)
-
12044K1204-41494 CAMSHAFT VALVE (REAR)CAMSHAFT VALVE (REAR)
-
12046K1204-61175 SPROCKET, CAMSHAFT (FRONT) (46 TEETH)SPROCKET, CAMSHAFT (FRONT) (46 TEETH)
-
12046K1204-61176 SPROCKET, CAMSHAFT (REAR) (46 TEETH)SPROCKET, CAMSHAFT (REAR) (46 TEETH)
-
12048K1204-81160 TENSIONER ASSYTENSIONER ASSY
-
12053K1205-31219 GUIDE CHAIN, TENSIONER (FRONT)GUIDE CHAIN, TENSIONER (FRONT)
-
12053K1205-31221 GUIDE CHAIN, TENSIONER (REAR)GUIDE CHAIN, TENSIONER (REAR)
-
13183K1318-31096 PLATEPLATE
-
13235K1323-51070 GUIDE COMP (FRONT)GUIDE COMP (FRONT)
-
13235K1323-51071 GUIDE COMP (REAR)GUIDE COMP (REAR)
-
14020K1402-01054 RETAINER, TENSIONERRETAINER, TENSIONER
-
21118K2111-81061 DECOMPRESSOR (FRONT)DECOMPRESSOR (FRONT)
-
21118K2111-81085 DECOMPRESSOR (REAR)DECOMPRESSOR (REAR)
-
92001K9200-11457 BOLT, 6X16BOLT, 6X16
-
92002K9200-21356 BOLT, FLANGED, 6X9.5BOLT, FLANGED, 6X9.5
-
92022K9202-21282 WASHER, 7X28X1.6WASHER, 7X28X1.6
-
92022KK920-22304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
92055K9205-51555 RING O, TENSIONERRING O, TENSIONER
-
92057K9205-71422 CHAIN, CAM, 92RH2010CHAIN, CAM, 92RH2010
-
92066K9206-61198 PLUGPLUG
-
92143K9214-31836 COLLAR, TENSIONERCOLLAR, TENSIONER
-
92144K9214-41921 SPRING, TENSIONERSPRING, TENSIONER
-
92150K9215-01725 BOLT, FLANGED, 6X11BOLT, FLANGED, 6X11
-
92150K9215-01795 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92150K9215-01868 BOLT, 6X12BOLT, 6X12
-
610KK610-A0406 ROLLER, 4X6ROLLER, 4X6
