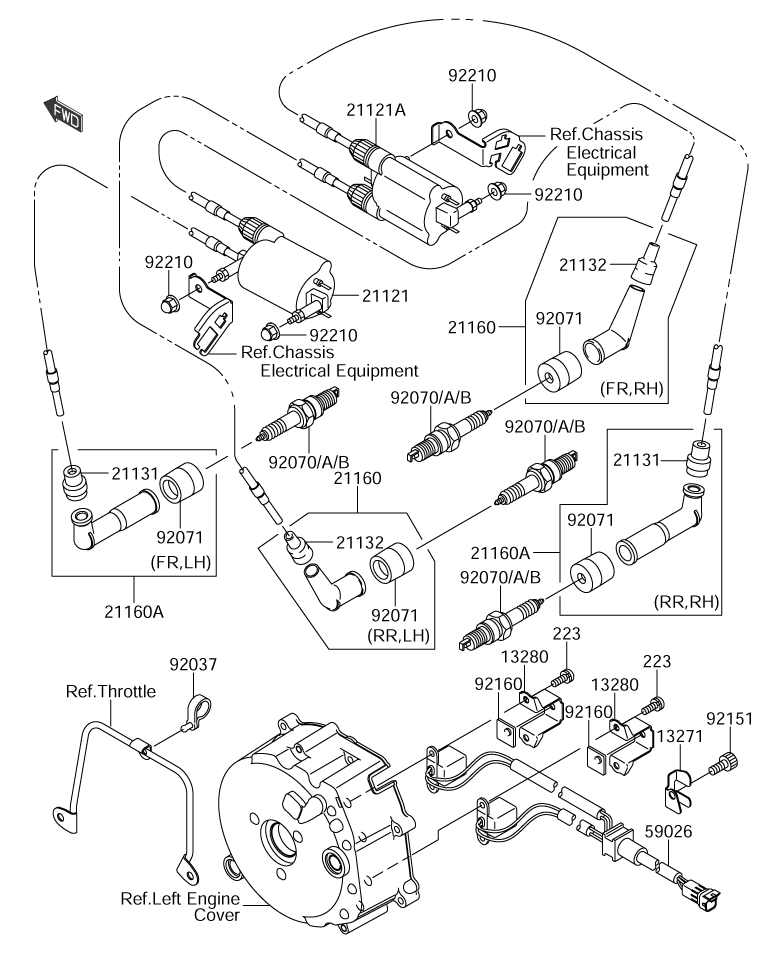

IGNITION SYSTEM для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
13271K1327-11339 PLATEPLATE
-
13280K1328-01255 HOLDERHOLDER
-
21121K2112-11302 COIL IGNITION (FRONT)COIL IGNITION (FRONT)
-
21121K2112-11303 COIL IGNITION (REAR)COIL IGNITION (REAR)
-
21131KK211-31005 GROMMET, HIGH TENSIONGROMMET, HIGH TENSION
-
21132KK211-32005 GROMMET, HIGH TENSIONGROMMET, HIGH TENSION
-
21160K2116-00004 CAP ASSY PLUGCAP ASSY PLUG
-
21160K2116-01091 CAP ASSY PLUGCAP ASSY PLUG
-
59026K5902-61158 COIL PULSINGCOIL PULSING
-
92037K9203-71290 CLAMP, SPEED, L=43CLAMP, SPEED, L=43
-
92070K9207-01125 PLUG SPARK, DPR7EA9(NGK) (OPT)PLUG SPARK, DPR7EA9(NGK) (OPT)
-
92070K9207-01138 PLUG SPARK, DPR6EA9(NGK)PLUG SPARK, DPR6EA9(NGK)
-
92070K9207-01250 PLUG SPARK, DPR5EA9(NGK) (OPT)PLUG SPARK, DPR5EA9(NGK) (OPT)
-
92071K9207-11184 GROMMET, PLUG CAPGROMMET, PLUG CAP
-
92151K9215-13704 BOLT, 6X10BOLT, 6X10
-
92160K9216-01091 DAMPERDAMPER
-
92210K9221-00003 NUT, CAP, 6MMNUT, CAP, 6MM
-
223KK223-B0516 SCREW PAN WS CROSSCREW PAN WS CROS
