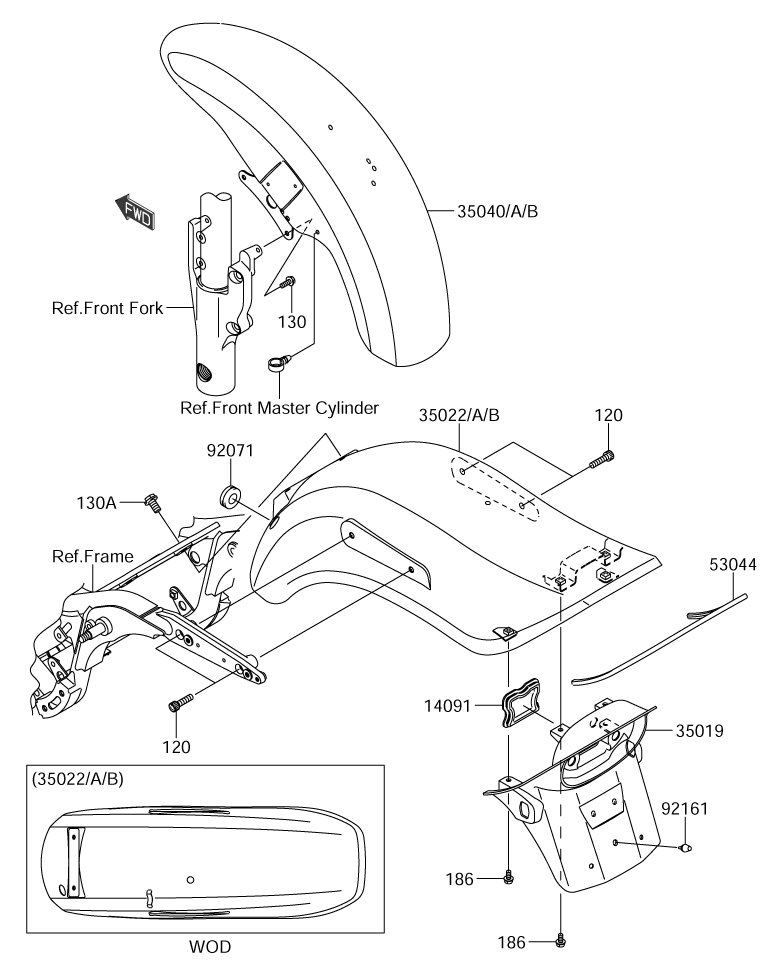

FENDER для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
14091K1409-10125 COVERCOVER
-
35019K3501-90019 FLAPFLAP
-
35022KK350-22001-6C4 FENDER COMP REAR, M.GRAYSTONEFENDER COMP REAR, M.GRAYSTONE
-
35022KK350-22001-6M4 FENDER COMP REAR, L.P.BLUEFENDER COMP REAR, L.P.BLUE
-
35022K3502-20016-660 FENDER COMP REAR, M.S.BLACKFENDER COMP REAR, M.S.BLACK
-
35040KK350-40105-3C4 FENDER COMP FRONT, M.GRAYSTONEFENDER COMP FRONT, M.GRAYSTONE
-
35040KK350-40105-3M4 FENDER COMP FRONT, L.P.BLUEFENDER COMP FRONT, L.P.BLUE
-
35040K3504-01053-660 FENDER COMP FRONT, M.S.BLACKFENDER COMP FRONT, M.S.BLACK
-
53044K5304-40002 TRIM, L=578TRIM, L=578
-
92071K9207-11265 GROMMETGROMMET
-
92161K9216-10091 DAMPERDAMPER
-
120KK120-S0830 BOLT SOCKET, 8X30, BLACKBOLT SOCKET, 8X30, BLACK
-
130KK130-J0616 BOLT FLANGED, 6X16, BLACKBOLT FLANGED, 6X16, BLACK
-
130KK130-J0816 BOLT FLANGED, 8X16, BLACKBOLT FLANGED, 8X16, BLACK
-
186KK186-J0614 BOLT UPSET WPBOLT UPSET WP
