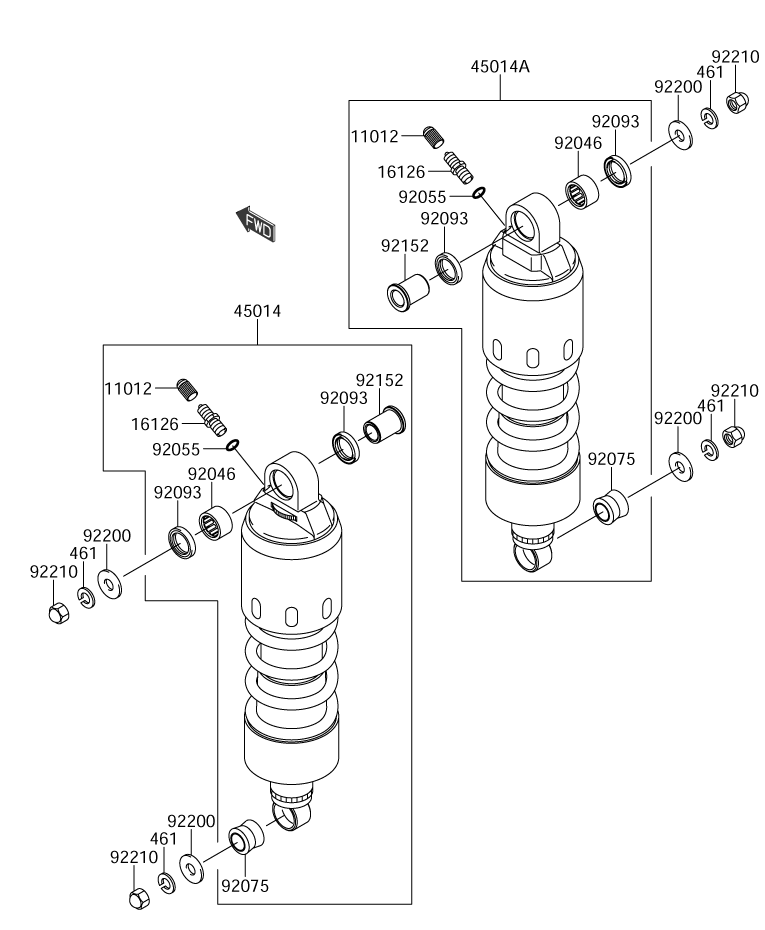

SUSPENSION/SHOCK ABSORBER для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
11012K1101-21283 CAPCAP
-
16126K1612-61043 VALVE, AIRVALVE, AIR
-
45014K4501-40029 SHOCKABSORBER (LEFT)SHOCKABSORBER (LEFT)
-
45014K4501-40030 SHOCKABSORBER (RIGHT)SHOCKABSORBER (RIGHT)
-
92046K9204-61296 BEARING NEEDLEBEARING NEEDLE
-
92055K9205-51130 RING ORING O
-
92075K9207-51387 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
-
92093K9209-31552 SEALSEAL
-
92152K9215-21336 COLLARCOLLAR
-
92200K9220-01565 WASHER, 10.5X26X2.5WASHER, 10.5X26X2.5
-
92210K9221-01288 NUT, CAP, 10MMNUT, CAP, 10MM
-
461KK461-S1000 WASHER SPRING, 10MMWASHER SPRING, 10MM
