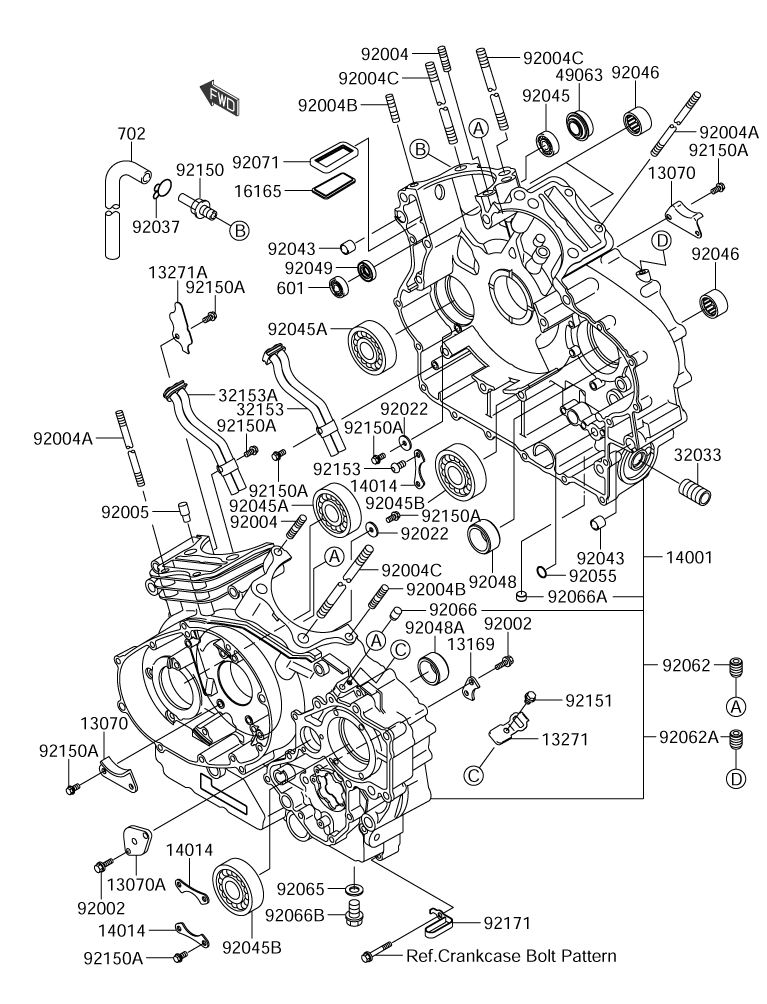

CRANKCASE для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
13070K1307-01168 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
13070K1307-01372 GUIDEGUIDE
-
13169KK131-69014 PLATE, GEAR CHANGE DRUMPLATE, GEAR CHANGE DRUM
-
13271K1327-10210 PLATEPLATE
-
13271K1327-11727 PLATEPLATE
-
14001K1400-15394 SET CRANKCASESET CRANKCASE
-
14014K1401-41084 PLATE POSITIONPLATE POSITION
-
16165K1616-51058 SEPARATORSEPARATOR
-
32033K3203-31535 PIPE, OIL FILTERPIPE, OIL FILTER
-
32153K3215-31262 PIPE CRANKCASE (RIGHT)PIPE CRANKCASE (RIGHT)
-
32153K3215-31263 PIPE CRANKCASE (LEFT)PIPE CRANKCASE (LEFT)
-
49063K4906-31057 SEAL MECHANICALSEAL MECHANICAL
-
92002K9200-21439 BOLT, 6X16BOLT, 6X16
-
92004K9200-40011 STUD, 8X25STUD, 8X25
-
92004K9200-41174 STUD, 8X231STUD, 8X231
-
92004K9200-41214 STUD, 8X25STUD, 8X25
-
92004K9200-41240 STUD, 12X250STUD, 12X250
-
92005K9200-51155 FITTINGFITTING
-
92022K9202-21517 WASHER, 6X19.5X2WASHER, 6X19.5X2
-
92037K9203-71835 CLAMPCLAMP
-
92043K9204-31266 PIN, 11X14X12.3PIN, 11X14X12.3
-
92045K9204-51151 BEARING BALL, 6001JRXLLU/5KBEARING BALL, 6001JRXLLU/5K
-
92045K9204-51183 BEARING BALL, TMB3/28JR2C3BEARING BALL, TMB3/28JR2C3
-
92045K9204-51190 BEARING BALL, 6306SH2BEARING BALL, 6306SH2
-
92046K9204-61292 BEARING NEEDLE, HK1212V11BEARING NEEDLE, HK1212V11
-
92048K9204-81103 RACERACE
-
92048K9204-81113 RACERACE
-
92049K9204-91228 SEAL OIL, AC037AE0SEAL OIL, AC037AE0
-
92055K9205-51373 RING O, 13.2X2.4RING O, 13.2X2.4
-
92062K9206-21078 NOZZLE, 6X8 (GREEN)NOZZLE, 6X8 (GREEN)
-
92062K9206-21089 NOZZLENOZZLE
-
92065KK920-65097 GASKET, 12X22X2GASKET, 12X22X2
-
92066K9206-61012 PLUG, OIL LINE, 7.2X8PLUG, OIL LINE, 7.2X8
-
92066K9206-61110 PLUGPLUG
-
92066K9206-61174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
92071K9207-11269 GROMMET, SEPARATORGROMMET, SEPARATOR
-
92150K9215-01161 BOLTBOLT
-
92150K9215-01868 BOLT, 6X12BOLT, 6X12
-
92151K9215-11416 BOLT, 6X8BOLT, 6X8
-
92153K9215-30344 BOLT, 6X12BOLT, 6X12
-
92171K9217-11273 CLAMPCLAMP
-
601KK601-A6001 BEARING BALLBEARING BALL
-
702K702A-04330 TUBE RUBBER, 4X330TUBE RUBBER, 4X330
