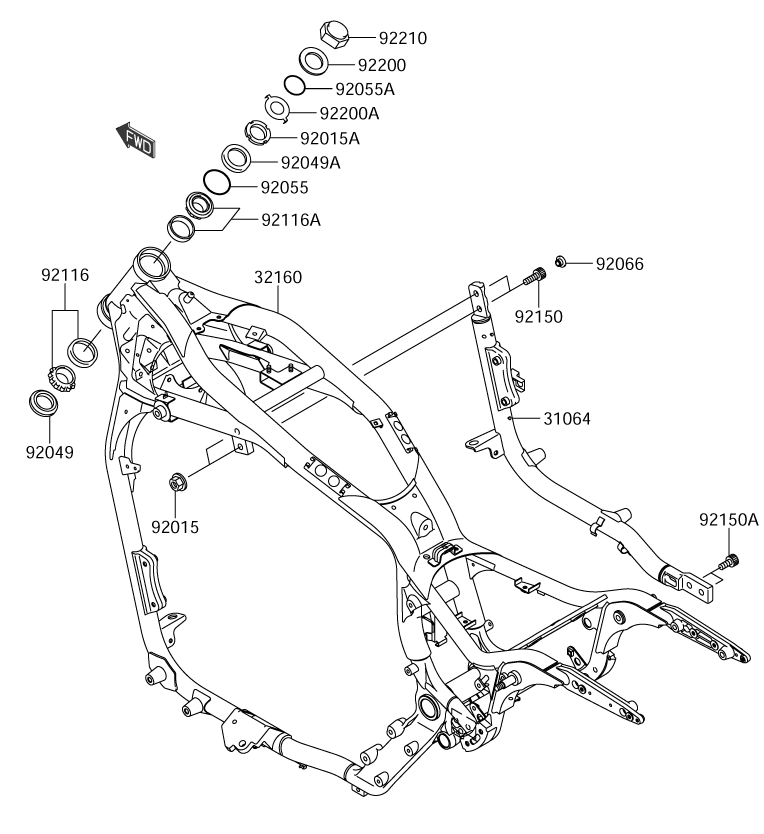

FRAME для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
31064K3106-41256 PIPE COMP, DOWN TUBE (RIGHT)PIPE COMP, DOWN TUBE (RIGHT)
-
32160K3216-00095 FRAME COMPFRAME COMP
-
92015K9201-51727 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015K9201-51848 NUT, STEERING STEM, 35MMNUT, STEERING STEM, 35MM
-
92049K9204-91383 SEAL OIL, XMHE 43 55 4JSEAL OIL, XMHE 43 55 4J
-
92049K9204-91483 SEAL OIL, MX043N2SEAL OIL, MX043N2
-
92055K9205-51452 RING O, 34.5X2.0RING O, 34.5X2.0
-
92055K9205-51459 RING O, ID=24.5RING O, ID=24.5
-
92066K9206-61562 PLUGPLUG
-
92116K9211-61072 BEARING ROLLER, 32907JR 2BEARING ROLLER, 32907JR 2
-
92116K9211-61074 BEARING ROLLER, 32907JR 3BEARING ROLLER, 32907JR 3
-
92150K9215-01690 BOLT, SOCKET, 10X30BOLT, SOCKET, 10X30
-
92150K9215-01942 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
92200K9220-00105 WASHER, 25.5X42X2.3WASHER, 25.5X42X2.3
-
92200K9220-01083 WASHER, CLAW, 25.5X40X2.3WASHER, CLAW, 25.5X40X2.3
-
92210K9221-01166 NUT, CAP, 25MMNUT, CAP, 25MM
