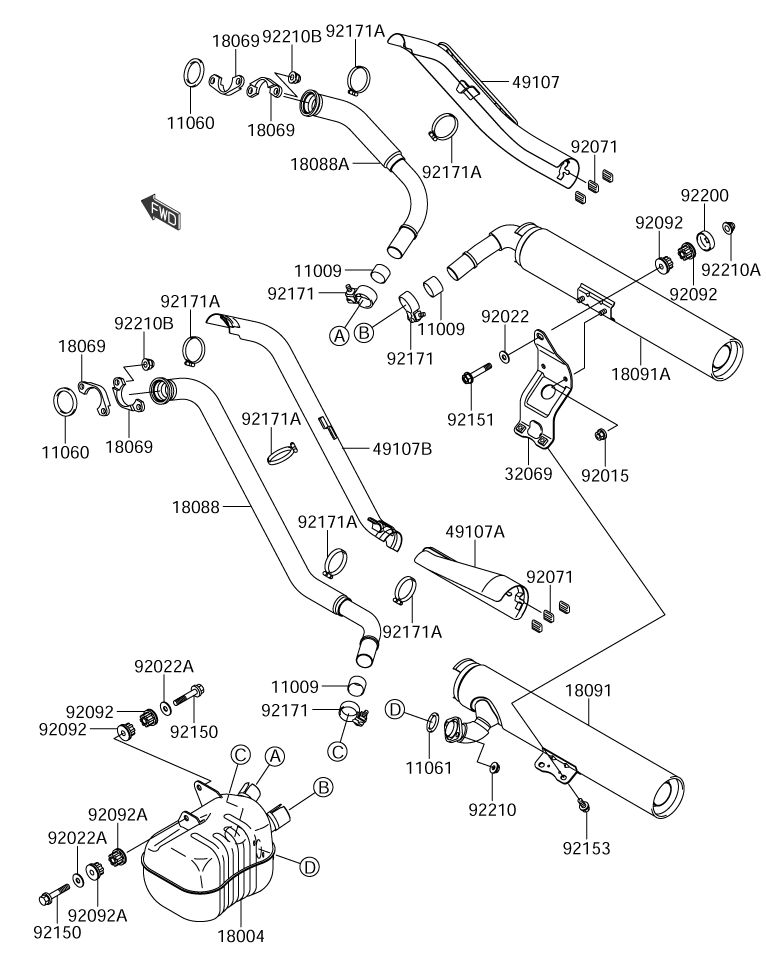

MUFFLER для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
11009K1100-91668 GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
11060K1106-01119 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
11061K1106-11069 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
18004K1800-40003 CHAMBER PREMUFFLERCHAMBER PREMUFFLER
-
18069K1806-91161 HOLDER EXHAUST PIPEHOLDER EXHAUST PIPE
-
18088K1808-81130 PIPE EXHAUST (FRONT)PIPE EXHAUST (FRONT)
-
18088K1808-81131 PIPE EXHAUST (REAR)PIPE EXHAUST (REAR)
-
18091K1809-10070 BODY COMP MUFFLER (LOWER)BODY COMP MUFFLER (LOWER)
-
18091K1809-10145 BODY COMP MUFFLERBODY COMP MUFFLER
-
32069K3206-90084 BRACKET MUFFLERBRACKET MUFFLER
-
49107K4910-70023 COVER EXHAUST PIPE (REAR)COVER EXHAUST PIPE (REAR)
-
49107K4910-71202 COVER EXHAUST PIPECOVER EXHAUST PIPE
-
49107K4910-71216 COVER EXHAUST PIPE (FRONT)COVER EXHAUST PIPE (FRONT)
-
92015K9201-51936 NUT, 8MMNUT, 8MM
-
92022KK920-22044 WASHER, 10.5X26X2.3WASHER, 10.5X26X2.3
-
92022K9202-21302 WASHER, 10.5X30X2.3 (BLACK)WASHER, 10.5X30X2.3 (BLACK)
-
92071K9207-11270 GROMMETGROMMET
-
92092K9209-21013 BUSHING RUBBER, MUFFLERBUSHING RUBBER, MUFFLER
-
92092K9209-21081 BUSHING RUBBERBUSHING RUBBER
-
92150K9215-01749 BOLT, 10X55BOLT, 10X55
-
92151K9215-11332 BOLT, FLANGED, 10X57BOLT, FLANGED, 10X57
-
92153K9215-30387 BOLT, FLANGED, 8X14BOLT, FLANGED, 8X14
-
92171K9217-10084 CLAMPCLAMP
-
92171K9217-10137 CLAMPCLAMP
-
92200K9220-01664 WASHER, 10.5X36X2WASHER, 10.5X36X2
-
92210K9221-00076 NUT, 8MMNUT, 8MM
-
92210K9221-01121 NUT, CAP, 10MMNUT, CAP, 10MM
-
92210K9221-01132 NUT, CAP, 8MMNUT, CAP, 8MM
