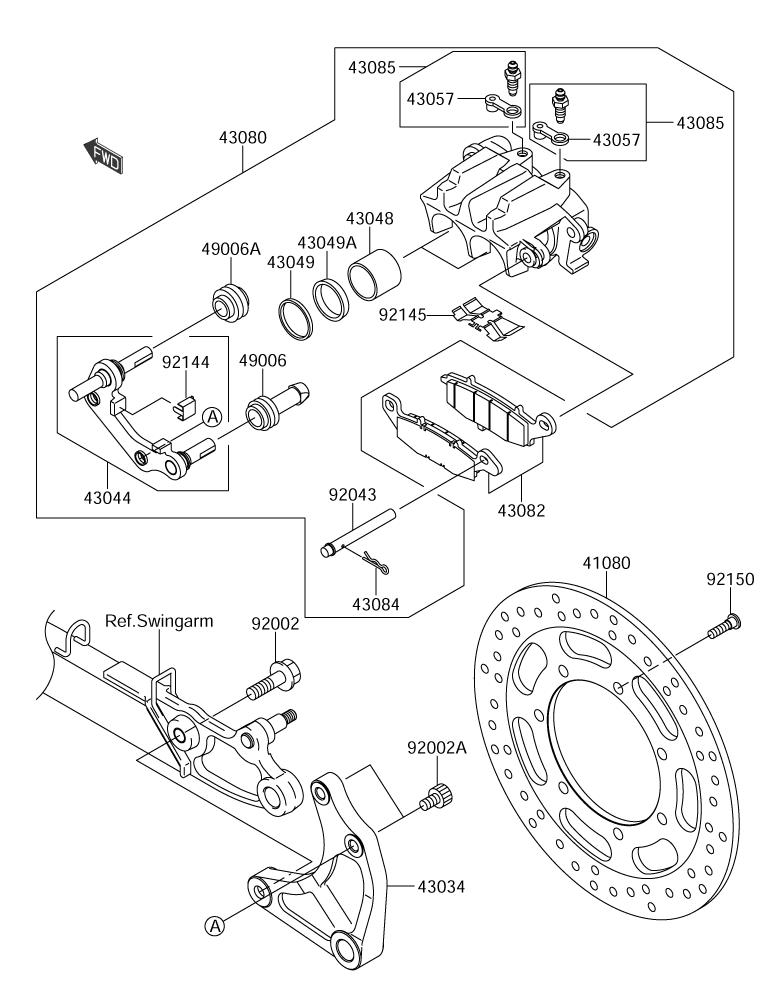

BRAKE PEDAL для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
41080KK410-80152-5FB DISC, C.GRAY (REAR)DISC, C.GRAY (REAR)
-
43034K4303-41173 HOLDER BRAKE, CALIPER (REAR)HOLDER BRAKE, CALIPER (REAR)
-
43044K4304-41134 HOLDER COMP CALIPER (REAR)HOLDER COMP CALIPER (REAR)
-
43048K4304-81094 PISTON CALIPERPISTON CALIPER
-
43049K4304-91068 PACKINGPACKING
-
43049K4304-91092 PACKING, PISTON SEALPACKING, PISTON SEAL
-
43057KK430-57003 CAP BREATHERCAP BREATHER
-
43080KK430-80509-8GN CALIPER SUB ASSY, SILVER (REAR)CALIPER SUB ASSY, SILVER (REAR)
-
43082K4308-21264 PAD ASSY BRAKEPAD ASSY BRAKE
-
43084KK430-84003 CLAMP, PADCLAMP, PAD
-
43085KK430-85001 BREATHER BRAKEBREATHER BRAKE
-
49006K4900-61094 BOOT, CALIPERBOOT, CALIPER
-
49006K4900-61095 BOOT, CALIPERBOOT, CALIPER
-
92002K9200-21510 BOLT, FLANGED, 12X40BOLT, FLANGED, 12X40
-
92002K9200-21713 BOLT, SOCKET, 10X17BOLT, SOCKET, 10X17
-
92043K9204-31640 PIN, PADPIN, PAD
-
92144K9214-41831 SPRING, STOPPERSPRING, STOPPER
-
92145K9214-51382 SPRING, PADSPRING, PAD
-
92150K9215-01771 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
