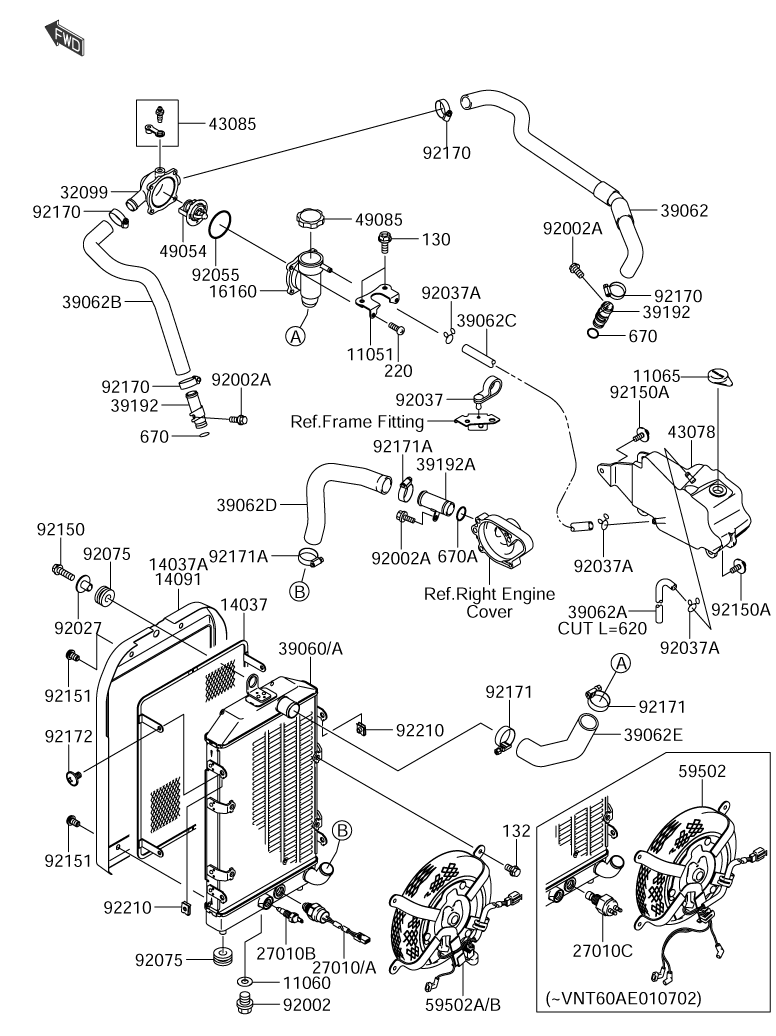

RADIATOR для Suzuki VZ1600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
11051K1105-11535 BRACKET, THERMOSTAT CASEBRACKET, THERMOSTAT CASE
-
11060K1106-01767 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
11065K1106-51093 CAP, COOLANTCAP, COOLANT
-
14037K1403-70014 SCREEN (INNER)SCREEN (INNER)
-
14037K1403-71301 SCREENSCREEN
-
14091K1409-10400 COVERCOVER
-
16160K1616-00038 BODYBODY
-
27010K2701-00024 SWITCH, FANSWITCH, FAN
-
27010K2701-01305 SWITCH, WARNINGSWITCH, WARNING
-
27010K2701-01364 SWITCH, FANSWITCH, FAN
-
32099K3209-91201 CASE, THERMOSTATCASE, THERMOSTAT
-
39060K3906-00002 RADIATORRADIATOR
-
39060K3906-00019 RADIATORRADIATOR
-
39062K3906-20030 HOSE COOLING, THERMO RR CASEHOSE COOLING, THERMO RR CASE
-
39062K3906-21144 HOSE COOLING, 5.5X10.5X1500HOSE COOLING, 5.5X10.5X1500
-
39062K3906-21785 HOSE COOLING,FRONTHEAD THERMOHOSE COOLING,FRONTHEAD THERMO
-
39062K3906-21796 HOSE COOLING, THERMO RESERHOSE COOLING, THERMO RESER
-
39062K3906-21850 HOSE COOLING, RADIATOR PUMPHOSE COOLING, RADIATOR PUMP
-
39062K3906-21892 HOSE COOLING, THERMO RADIATORHOSE COOLING, THERMO RADIATOR
-
39192K3919-21094 PIPE WATERPIPE WATER
-
39192K3919-21096 PIPE WATERPIPE WATER
-
43078K4307-81180 RESERVOIRRESERVOIR
-
43085KK430-85001 BREATHERBREATHER
-
49054K4905-41067 THERMOSTATTHERMOSTAT
-
49085K4908-50002 CAP ASSY PRESSURECAP ASSY PRESSURE
-
59502K5950-20004 FAN ASSYFAN ASSY
-
59502K5950-20013 FAN ASSYFAN ASSY
-
92002K9200-21311 BOLT, FLANGED, 10X10BOLT, FLANGED, 10X10
-
92002K9200-21569 BOLT, 6X12BOLT, 6X12
-
92027K9202-71450 COLLAR, L=13.1 (BLACK)COLLAR, L=13.1 (BLACK)
-
92037K9203-71163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037KK920-37147 CLAMP, TUBECLAMP, TUBE
-
92055KK920-55112 RING O, 53.5X2.6RING O, 53.5X2.6
-
92075K9207-51690 DAMPERDAMPER
-
92150K9215-01010 BOLT, 6X20BOLT, 6X20
-
92150K9215-01504 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
92151K9215-11809 BOLT, 6X10BOLT, 6X10
-
92170K9217-01032 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92171K9217-10179 CLAMPCLAMP
-
92171K9217-10261 CLAMPCLAMP
-
92172K9217-20005 SCREW, 6X10SCREW, 6X10
-
92210K9221-01125 NUTNUT
-
130KK130-J0616 BOLT FLANGED, 6X16, BLACKBOLT FLANGED, 6X16, BLACK
-
132KK132-J0610 BOLT FLANGED SMALL, 6X10BOLT FLANGED SMALL, 6X10
-
220KK220-D0514 SCREW PAN CROS, 5X14SCREW PAN CROS, 5X14
-
670KK670-B2014 O-RING, 14MMO-RING, 14MM
-
670KK670-B2018 O-RING, 18MMO-RING, 18MM
