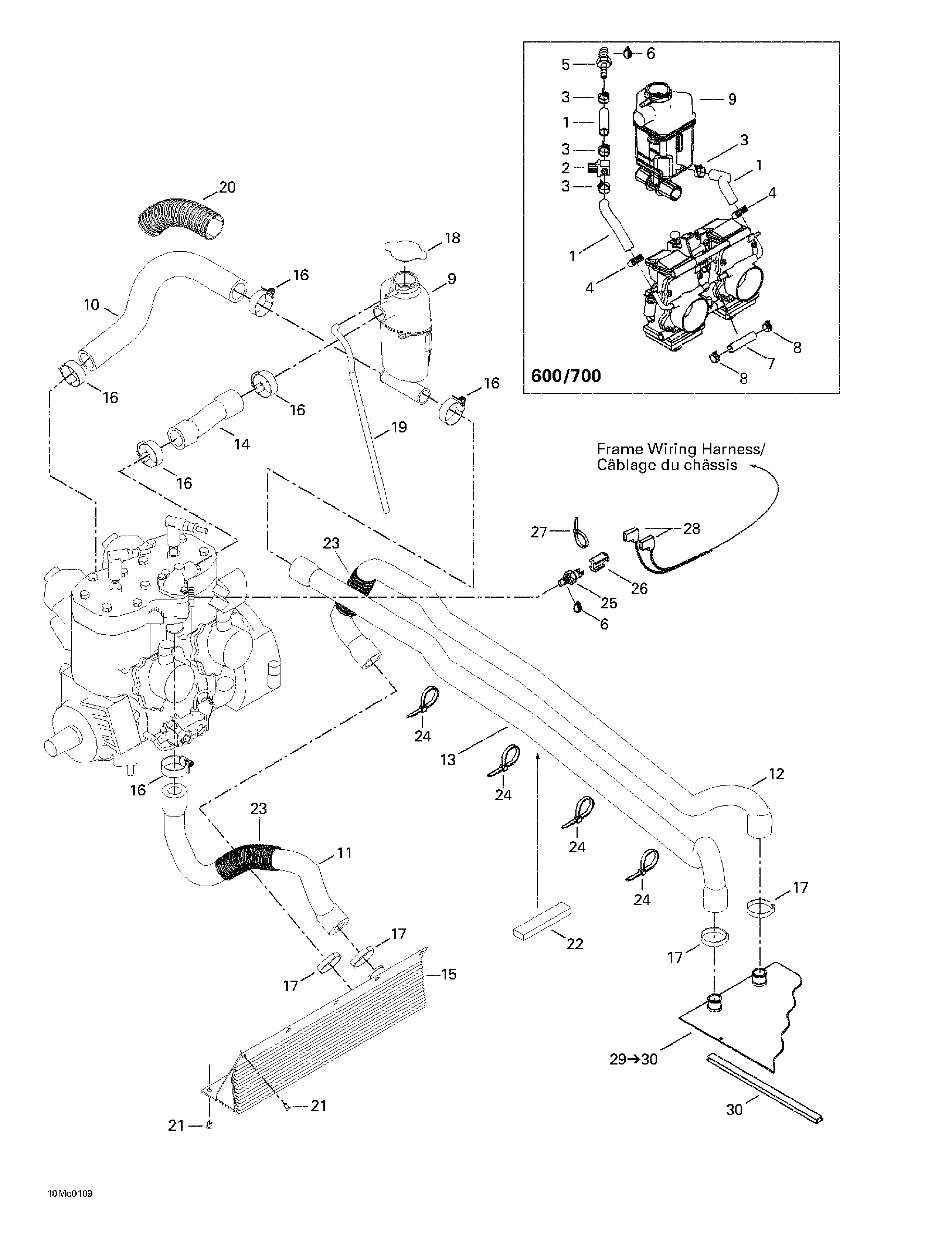

01- Cooling System для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1509000093 Hose 8 mm. Formula Deluxe 600. Formula Deluxe 700.Hose 8 mm. Formula Deluxe 600. Formula Deluxe 700.
-
2512059324 Valve 5/16''. Formula Deluxe 600. Formula Deluxe 700.Valve 5/16''. Formula Deluxe 600. Formula Deluxe 700.
-
3414655700 Spring Clamp. Formula Deluxe 600. Formula Deluxe 700.Spring Clamp. Formula Deluxe 600. Formula Deluxe 700.
-
4293650038 Tridon Gear Clamp. Formula Deluxe 600. Formula Deluxe 700.Tridon Gear Clamp. Formula Deluxe 600. Formula Deluxe 700.
-
5293710082 Straight Fitting. Formula Deluxe 600. Formula Deluxe 700.Straight Fitting. Formula Deluxe 600. Formula Deluxe 700.
-
6293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
7404161956 Hose. Formula Deluxe 600. Formula Deluxe 700.Hose. Formula Deluxe 600. Formula Deluxe 700.
-
8404161957 Clip. Formula Deluxe 600. Formula Deluxe 700.Clip. Formula Deluxe 600. Formula Deluxe 700.
-
9509000114 Tank-Coolant. Formula Deluxe 500.Tank-Coolant. Formula Deluxe 500.
-
509000115 Tank-Coolant. Formula Deluxe 600. Formula Deluxe 700.Tank-Coolant. Formula Deluxe 600. Formula Deluxe 700.
-
10509000001 Engine Inlet HoseEngine Inlet Hose
-
11509000046 Engine Outlet HoseEngine Outlet Hose
-
12509000003 Radiator Inlet HoseRadiator Inlet Hose
-
13509000004 Radiator Outlet HoseRadiator Outlet Hose
-
14509000112 Deviation HoseDeviation Hose
-
15517297100 Front RadiatorFront Radiator
-
16408800400 Tridon Gear ClampTridon Gear Clamp
-
17509000045 Oetiker Gear ClampOetiker Gear Clamp
-
18414684700 Pressure CapPressure Cap
-
19415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
20415084700 Protective ShieldProtective Shield
-
21390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22293200003 SealSeal
-
23409902200 Tubing 25 mm. Formula Deluxe 700.Tubing 25 mm. Formula Deluxe 700.
-
24293750008 Tie Rap 350 mmTie Rap 350 mm
-
25512047000 Temperature Sensor (Standard). Formula Deluxe 500. Formula Deluxe 600.Temperature Sensor (Standard). Formula Deluxe 500. Formula Deluxe 600.
-
414728700 Temperature Sensor (GSE-GS). Formula Deluxe 600. Formula Deluxe 700.Temperature Sensor (GSE-GS). Formula Deluxe 600. Formula Deluxe 700.
-
26515175297 Connector PlugConnector Plug
-
27293750002 Tie Rap 130 mmTie Rap 130 mm
-
28409010300 Female TerminalFemale Terminal
-
29517296300 Rear Radiator. Includes 29 - 30.Rear Radiator. Includes 29 - 30.
-
30518321655 Radiator ProtectorRadiator Protector
