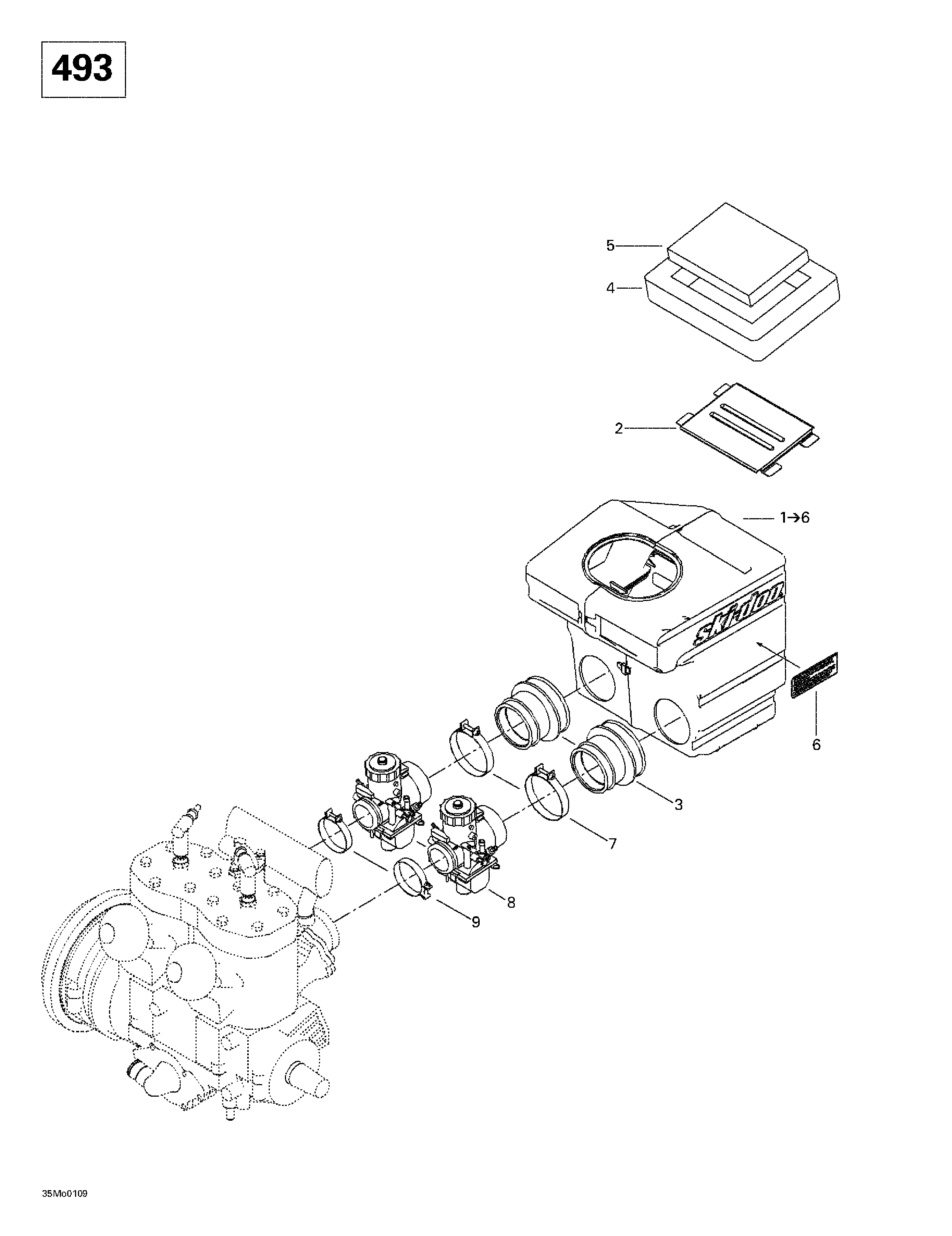

02- Air Intake System (493) для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1508000153 Air Intake Ass'y. Includes 1 - 6. Formula Deluxe 500.Air Intake Ass'y. Includes 1 - 6. Formula Deluxe 500.
-
2508000004 Intake Grill. Formula Deluxe 500.Intake Grill. Formula Deluxe 500.
-
3508000073 Air Intake Adaptor (38 mm). Formula Deluxe 500.Air Intake Adaptor (38 mm). Formula Deluxe 500.
-
4508000099 Lower Foam. Formula Deluxe 500.Lower Foam. Formula Deluxe 500.
-
5508000154 Air Filter. Formula Deluxe 500.Air Filter. Formula Deluxe 500.
-
6516000130 Caution Label. Formula Deluxe 500.Caution Label. Formula Deluxe 500.
-
7508000046 Clamp. Formula Deluxe 500.Clamp. Formula Deluxe 500.
-
8403138581 VM 38-429 Carburetor. Formula Deluxe 500.VM 38-429 Carburetor. Formula Deluxe 500.
-
9512059005 Clamp. Formula Deluxe 500.Clamp. Formula Deluxe 500.
