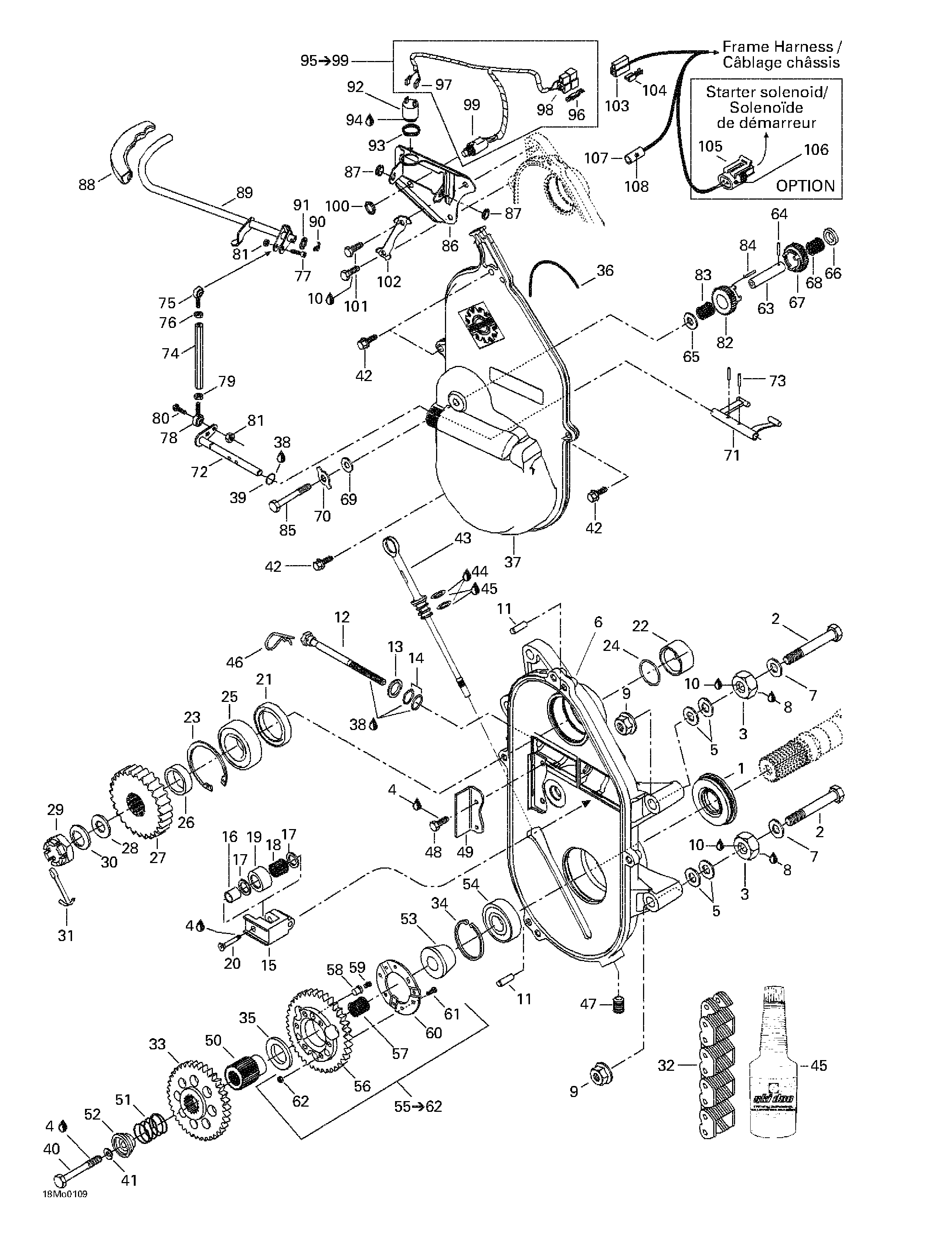

05- Transmission для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001

№

Артикул

Название
1

504151918 Oil Seal Ass'y

Oil Seal Ass'y

7 740 ₽
2

207108044 Hex. Screw M10 x 80

Hex. Screw M10 x 80

680 ₽
3

504083800 Spacer

Spacer

590 ₽
4

293800005 Loctite 271, 10 ml

Loctite 271, 10 ml

2 300 ₽
5

504073700 Washer

Washer

230 ₽
6

504151776 Chaincase

Chaincase

0 ₽
7

503183800 Washer

Washer

310 ₽
8

293800023 Loctite 767, Antiseize Lubricant, 454 g

Loctite 767, Antiseize Lubricant, 454 g

0 ₽
9

233201414 Elastic Flanged Stop Nut M10

Elastic Flanged Stop Nut M10

810 ₽
10

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
11

732620001 Cylinder Pin M6 x 20

Cylinder Pin M6 x 20

180 ₽
12

732601314 Tensioner Adjustment Screw

Tensioner Adjustment Screw

2 450 ₽
13

234001410 Flat Washer 10 mm

Flat Washer 10 mm

420 ₽
14

414484400 O-Ring

O-Ring

2 440 ₽
15

504151951 Chain Tensioner

Chain Tensioner

3 470 ₽
16

504080200 Spacer

Spacer

1 660 ₽
17

504080300 Washer

Washer

910 ₽
18

405403000 Needle Bearing

Needle Bearing

2 390 ₽
19

414531300 Roller

Roller

4 600 ₽
20

732601144 Screw

Screw

3 020 ₽
21

504151927 Seal. Formula Deluxe 500.

Seal. Formula Deluxe 500.

1 930 ₽
415049300 Seal. Formula Deluxe 600. Formula Deluxe 700.

Seal. Formula Deluxe 600. Formula Deluxe 700.

1 130 ₽
22

507031500 Spacer. Formula Deluxe 600. Formula Deluxe 700.

Spacer. Formula Deluxe 600. Formula Deluxe 700.

990 ₽
23

371901700 Circlip

Circlip

660 ₽
24

414876700 O-Ring. Formula Deluxe 600. Formula Deluxe 700.

O-Ring. Formula Deluxe 600. Formula Deluxe 700.

440 ₽
25

504152006 Ball Bearing 6205

Ball Bearing 6205

1 580 ₽
26

504147200 Shim

Shim

1 990 ₽
27

504074700 22 Teeth Sprocket (Narrow). Formula Deluxe 500.

22 Teeth Sprocket (Narrow). Formula Deluxe 500.

0 ₽
504139700 24 Teeth Sprocket (Large). Formula Deluxe 600.

24 Teeth Sprocket (Large). Formula Deluxe 600.

11 010 ₽
504084300 25 Teeth Sprocket (Large). Formula Deluxe 700.

25 Teeth Sprocket (Large). Formula Deluxe 700.

8 110 ₽
28

504152049 Spacer. Formula Deluxe 500.

Spacer. Formula Deluxe 500.

250 ₽
29

232210414 Castellated Nut M16. Formula Deluxe 500.

Castellated Nut M16. Formula Deluxe 500.

330 ₽
250000012 Castellated Nut M20. Formula Deluxe 600. Formula Deluxe 700.

Castellated Nut M20. Formula Deluxe 600. Formula Deluxe 700.

680 ₽
30

417000900 Spring Washer. Formula Deluxe 500.

Spring Washer. Formula Deluxe 500.

730 ₽
31

371801300 Cotter Pin. Formula Deluxe 500.

Cotter Pin. Formula Deluxe 500.

110 ₽
371006300 Cotter Pin. Formula Deluxe 600. Formula Deluxe 700.

Cotter Pin. Formula Deluxe 600. Formula Deluxe 700.

70 ₽
32

504151859 Drive Chain (74 Links) (Narrow). Formula Deluxe 500.

Drive Chain (74 Links) (Narrow). Formula Deluxe 500.

7 310 ₽
504151856 Drive Chain (76 Links) (Large). Formula Deluxe 600. Formula Deluxe 700.

Drive Chain (76 Links) (Large). Formula Deluxe 600. Formula Deluxe 700.

11 470 ₽
33

504096800 Sliding Gear (56 Tooth)

Sliding Gear (56 Tooth)

32 200 ₽
34

415064300 Circlip (Interior)

Circlip (Interior)

570 ₽
35

504094300 Washer

Washer

410 ₽
36

415046400 O-Ring

O-Ring

6 830 ₽
37

504151845 Cover Chaincase

Cover Chaincase

16 360 ₽
38

219700417 Synthetic Grease, 400g

Synthetic Grease, 400g

0 ₽
39

414773200 O-Ring

O-Ring

280 ₽
40

207005044 Hex Screw M10 x 50

Hex Screw M10 x 50

1 230 ₽
41

234100602 Lock Washer 10 mm

Lock Washer 10 mm

130 ₽
42

210263080 Hex. Flanged Screw M6 x 30

Hex. Flanged Screw M6 x 30

280 ₽
43

504151750 Filler Cap Ass'y

Filler Cap Ass'y

1 100 ₽
44

414969400 O-Ring

O-Ring

700 ₽
45

413803300 Synthetic Chaincase Oil,. (12 x 355 ml)

Synthetic Chaincase Oil,. (12 x 355 ml)

2 280 ₽
46

414575600 Hair Pin

Hair Pin

720 ₽
47

504151921 Plug

Plug

1 530 ₽
48

210251180 Hex. Forming Screw M5 x 11

Hex. Forming Screw M5 x 11

210 ₽
49

504152036 Slider Chain

Slider Chain

2 930 ₽
50

504097700 Coupling Shaft

Coupling Shaft

13 550 ₽
51

504096600 Release Spring

Release Spring

840 ₽
52

504151964 Cap

Cap

3 600 ₽
53

504076300 Retaining Ring

Retaining Ring

2 400 ₽
54

504152005 Ball Bearing

Ball Bearing

14 840 ₽
55

581095900 Sprocket Ass'y (44 Teeth). Includes 55 - 62. Formula Deluxe 500.

Sprocket Ass'y (44 Teeth). Includes 55 - 62. Formula Deluxe 500.

14 610 ₽
581096800 Sprocket Ass'y (44 Teeth). Formula Deluxe 600. Formula Deluxe 700.

Sprocket Ass'y (44 Teeth). Formula Deluxe 600. Formula Deluxe 700.

32 660 ₽
56

504088200 Sprocket (44 Teeth). Formula Deluxe 500.

Sprocket (44 Teeth). Formula Deluxe 500.

13 970 ₽
504084400 Sprocket (44 Teeth). Formula Deluxe 600. Formula Deluxe 700.

Sprocket (44 Teeth). Formula Deluxe 600. Formula Deluxe 700.

0 ₽
57

414772600 Needle Bearing

Needle Bearing

1 970 ₽
58

504076800 Drive Pin

Drive Pin

9 280 ₽
59

414772700 Spring

Spring

410 ₽
60

504076100 Retaining Ring

Retaining Ring

800 ₽
61

207152044 Hex. Screw M5 x 20

Hex. Screw M5 x 20

90 ₽
62

233551416 Nut Lock Hex. M5

Nut Lock Hex. M5

330 ₽
63

504083100 Reverse Shaft

Reverse Shaft

4 180 ₽
64

250400010 Spring Pin

Spring Pin

160 ₽
65

504077300 Spacer

Spacer

540 ₽
66

504078700 Trust Ring

Trust Ring

6 020 ₽
67

581098200 Sprocket Ass'y (19 Teeth). Includes 67 - 68. Formula Deluxe 500.

Sprocket Ass'y (19 Teeth). Includes 67 - 68. Formula Deluxe 500.

10 950 ₽
581096900 Sprock Ass'y, 19 Teeth. Formula Deluxe 600. Formula Deluxe 700.

Sprock Ass'y, 19 Teeth. Formula Deluxe 600. Formula Deluxe 700.

27 750 ₽
68

414773100 Needle Bearing

Needle Bearing

1 380 ₽
69

504082900 Washer

Washer

700 ₽
70

504087700 Lock Tab

Lock Tab

450 ₽
71

504075800 Fork

Fork

11 360 ₽
72

504151806 Fork Axle

Fork Axle

1 870 ₽
73

414772500 Spring Pin M5 x 20

Spring Pin M5 x 20

210 ₽
74

504151814 Tie Rod (Bar)

Tie Rod (Bar)

1 810 ₽
75

414773400 Ball Joint R.H

Ball Joint R.H

4 030 ₽
76

232061414 Nut M6

Nut M6

190 ₽
77

205062560 Socket Head Screw M6 x 25

Socket Head Screw M6 x 25

610 ₽
78

414773500 Ball Joint L.H

Ball Joint L.H

4 430 ₽
79

232066414 Hex. Nut M6

Hex. Nut M6

140 ₽
80

207162044 Hex. Screw M6 x 20

Hex. Screw M6 x 20

280 ₽
81

232561414 Elastic Stop Nut M6

Elastic Stop Nut M6

50 ₽
82

581122200 Sprocket Ass'y (19 Teeth). Includes 82 - 83.

Sprocket Ass'y (19 Teeth). Includes 82 - 83.

16 210 ₽
83

414805000 Needle Bearing

Needle Bearing

1 730 ₽
84

570048600 Alignement Rod

Alignement Rod

4 550 ₽
85

207089044 Hex. Screw M8 x 90

Hex. Screw M8 x 90

1 210 ₽
86

504151823 Reverse Support

Reverse Support

3 400 ₽
87

504151818 Flanged Bushing

Flanged Bushing

700 ₽
88

570064600 Grip

Grip

1 130 ₽
89

504151810 Welded Handle

Welded Handle

5 010 ₽
90

371800800 Cotter Pin

Cotter Pin

50 ₽
91

503189264 Washer

Washer

250 ₽
92

414805102 DC Horn

DC Horn

6 670 ₽
93

414805101 Plastic Nut

Plastic Nut

380 ₽
94

296000309 Sealant Silicone, Clear. 300 ml

Sealant Silicone, Clear. 300 ml

4 510 ₽
95

515175318 Switch Ass'y. Includes 95 - 99.

Switch Ass'y. Includes 95 - 99.

4 740 ₽
96

409210000 Male Terminal

Male Terminal

660 ₽
97

409010300 Female Terminal

Female Terminal

1 590 ₽
98

409204500 Male Terminal Housing (2 Circuits)

Male Terminal Housing (2 Circuits)

420 ₽
100

250100012 Brass Nut

Brass Nut

170 ₽
101

207103544 Hex. Screw M10 x 35

Hex. Screw M10 x 35

150 ₽
102

507029900 Locking Tab

Locking Tab

0 ₽
103

409204600 Female Terminal Housing (2 Circuits)

Female Terminal Housing (2 Circuits)

500 ₽
104

561503100 Female Terminal

Female Terminal

520 ₽
105

278001113 Female Terminal Housing (2 Circuits)

Female Terminal Housing (2 Circuits)

5 390 ₽
106

278001114 Female Terminal

Female Terminal

1 160 ₽
107

415079200 Hose

Hose

940 ₽
