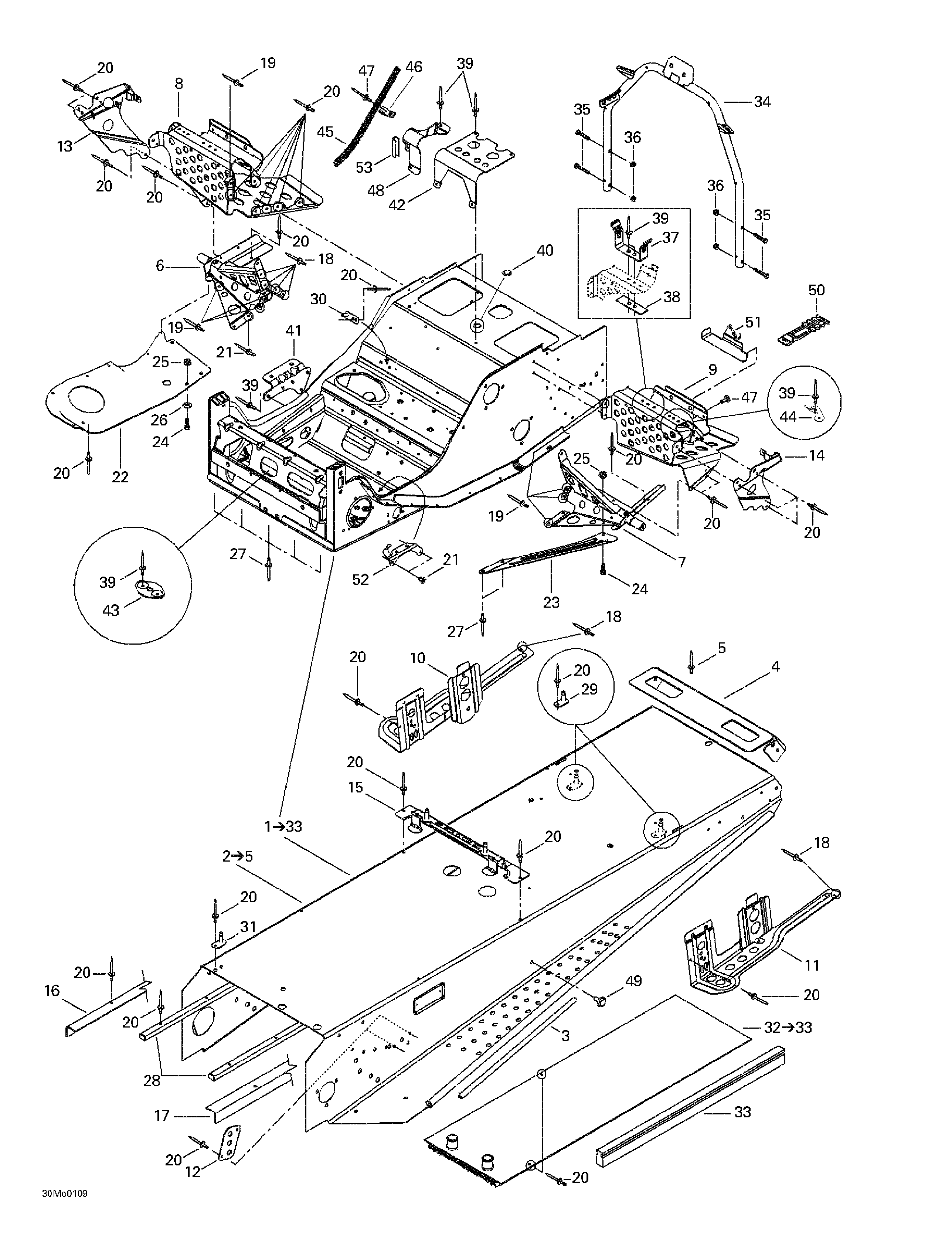

09- Frame And Accessories для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1518322488 Frame (Full Moon (B-211)). Includes 1 - 33.Frame (Full Moon (B-211)). Includes 1 - 33.
-
2518322534 Forming Frame (Full Moon (B-211)). Includes 2 - 5.Forming Frame (Full Moon (B-211)). Includes 2 - 5.
-
3518304746 Footrest ReinforcementFootrest Reinforcement
-
4518321303 Rear CapRear Cap
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6518320506 R.H. Footrest SupportR.H. Footrest Support
-
7518320507 L.H. Footrest SupportL.H. Footrest Support
-
8518322393 R.H. FootrestR.H. Footrest
-
9518322394 L.H. FootrestL.H. Footrest
-
10518319742 R.H. Slide BracketR.H. Slide Bracket
-
11518319743 L.H. Slide BracketL.H. Slide Bracket
-
12518201321 Reinforcement PlateReinforcement Plate
-
13518321305 R.H. Footrest ReinforcementR.H. Footrest Reinforcement
-
14518321307 L.H. Footrest ReinforcementL.H. Footrest Reinforcement
-
15518321510 Fuel Tank BracketFuel Tank Bracket
-
16518321561 R.H. Frame ReinforcementR.H. Frame Reinforcement
-
17518321562 L.H. Frame ReinforcementL.H. Frame Reinforcement
-
18390909200 Rivet AVEXRivet AVEX
-
19390909100 Rivet AVEXRivet AVEX
-
20390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
21390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
22518319760 R.H. Bottom Pan PlateR.H. Bottom Pan Plate
-
23518322119 L.H. Reinforcement PlateL.H. Reinforcement Plate
-
24207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
25233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
26391301700 Flat WasherFlat Washer
-
28518321543 Frame ProtectorFrame Protector
-
29518319730 Seat BracketSeat Bracket
-
30518322391 Double BracketDouble Bracket
-
31518321604 GuideGuide
-
32517296300 Rear Radiator. Includes 32 - 33.Rear Radiator. Includes 32 - 33.
-
33518321655 Radiator ProtectorRadiator Protector
-
34518321957 Handle SupportHandle Support
-
35207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
36233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37518202100 Pulley Guard BracketPulley Guard Bracket
-
38518207500 ReinforcementReinforcement
-
39390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
40414859400 CapCap
-
41518206300 Muffler SupportMuffler Support
-
42518310400 Air Intake SupportAir Intake Support
-
43518201307 Plate BracketPlate Bracket
-
44518322031 Tool Kit BracketTool Kit Bracket
-
45518321569 Rope GuideRope Guide
-
46518321570 ClipClip
-
47390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
48518319762 Hose SupportHose Support
-
49518321954 Fastener PanelFastener Panel
-
50570069700 LatchLatch
-
51518321999 Tool Kit SupportTool Kit Support
-
52515175254 Cable SupportCable Support
-
53271000110 TrimTrim
