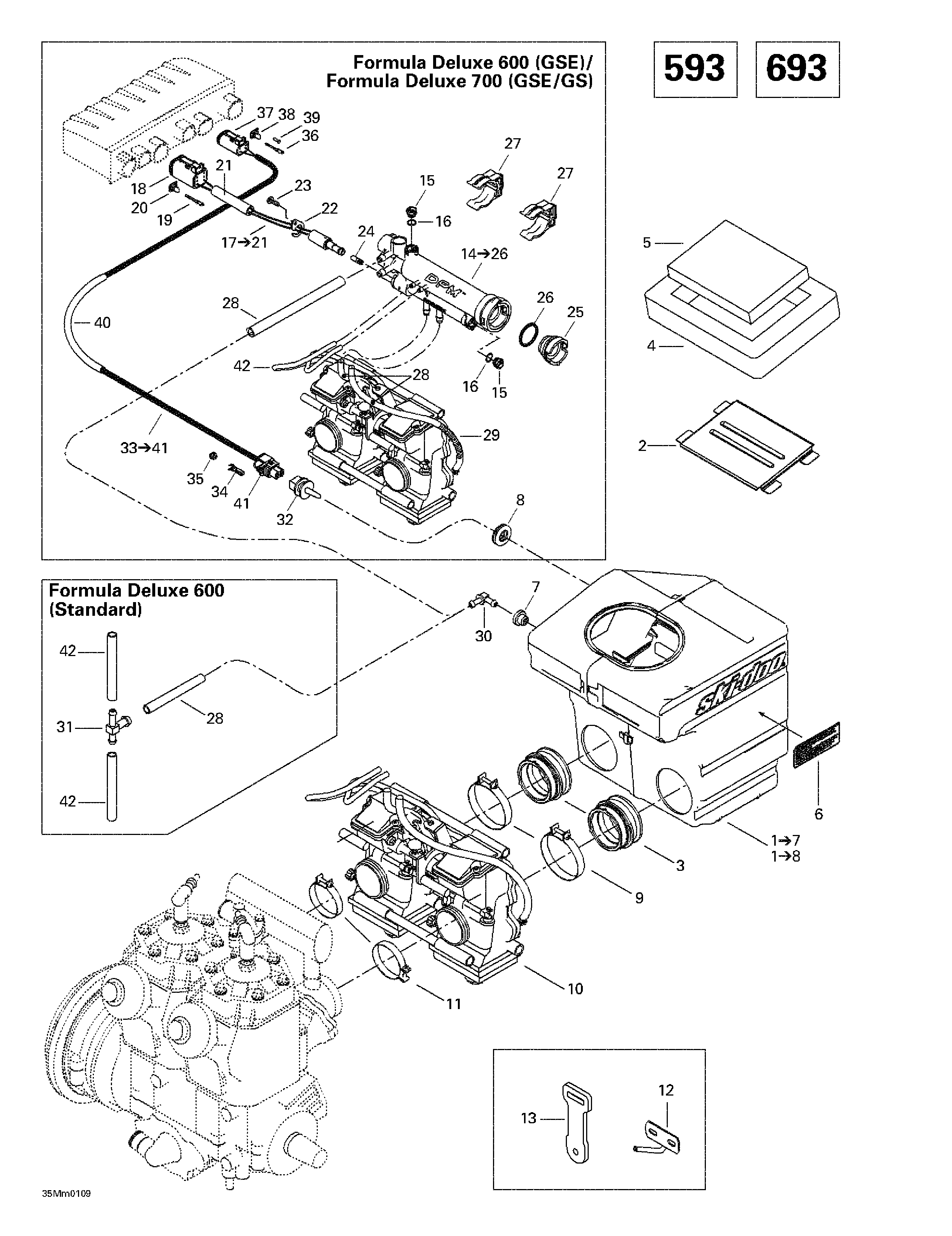

02- Air Intake System (593, 693) для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1508000139 Air Intake Ass'y (Standard). Includes 1 - 7. Formula Deluxe 600.Air Intake Ass'y (Standard). Includes 1 - 7. Formula Deluxe 600.
-
1508000140 Air Intake Ass'y (GSE). Includes 1 - 8. Formula Deluxe 600.Air Intake Ass'y (GSE). Includes 1 - 8. Formula Deluxe 600.
-
1508000169 Air Intake Ass'y (GSE/GS). Includes 1 - 8. Formula Deluxe 700.Air Intake Ass'y (GSE/GS). Includes 1 - 8. Formula Deluxe 700.
-
2508000004 Intake Grill. Formula Deluxe 600. Formula Deluxe 700.Intake Grill. Formula Deluxe 600. Formula Deluxe 700.
-
3508000092 Air Intake Adaptor (40 mm). Formula Deluxe 600. Formula Deluxe 700.Air Intake Adaptor (40 mm). Formula Deluxe 600. Formula Deluxe 700.
-
4508000099 Lower Foam. Formula Deluxe 600. Formula Deluxe 700.Lower Foam. Formula Deluxe 600. Formula Deluxe 700.
-
5508000154 Air Filter. Formula Deluxe 600. Formula Deluxe 700.Air Filter. Formula Deluxe 600. Formula Deluxe 700.
-
6516000130 Caution Label. Formula Deluxe 600. Formula Deluxe 700.Caution Label. Formula Deluxe 600. Formula Deluxe 700.
-
7513032908 Grommet. Formula Deluxe 600. Formula Deluxe 700.Grommet. Formula Deluxe 600. Formula Deluxe 700.
-
8570065500 Grommet. Formula Deluxe 600. Formula Deluxe 700.Grommet. Formula Deluxe 600. Formula Deluxe 700.
-
9508000162 Clamp. Formula Deluxe 600. Formula Deluxe 700.Clamp. Formula Deluxe 600. Formula Deluxe 700.
-
10403138670 Carburetor Kit TM 40 B-112. Formula Deluxe 600.Carburetor Kit TM 40 B-112. Formula Deluxe 600.
-
403138671 Carburetor Kit TM 40 B-115. Formula Deluxe 700.Carburetor Kit TM 40 B-115. Formula Deluxe 700.
-
11512059305 Clamp. Formula Deluxe 600. Formula Deluxe 700.Clamp. Formula Deluxe 600. Formula Deluxe 700.
-
12512059369 Carburetor Bracket. Formula Deluxe 600. Formula Deluxe 700.Carburetor Bracket. Formula Deluxe 600. Formula Deluxe 700.
-
13512059372 Carburetor Latch. Formula Deluxe 600. Formula Deluxe 700.Carburetor Latch. Formula Deluxe 600. Formula Deluxe 700.
-
14512059342 Pressure Manifold Ass'y (GSE). Includes 14 - 26. Formula Deluxe 600.Pressure Manifold Ass'y (GSE). Includes 14 - 26. Formula Deluxe 600.
-
14512059408 Pressure Manifold Ass'y (GSE/GS). Includes 14 - 26. Formula Deluxe 700.Pressure Manifold Ass'y (GSE/GS). Includes 14 - 26. Formula Deluxe 700.
-
15512058921 Cap. Formula Deluxe 600. Formula Deluxe 700.Cap. Formula Deluxe 600. Formula Deluxe 700.
-
16512058925 O-Ring. Formula Deluxe 600. Formula Deluxe 700.O-Ring. Formula Deluxe 600. Formula Deluxe 700.
-
17515175271 Pressure Manifold Harness. Includes 17 - 21. Formula Deluxe 600. Formula Deluxe 700.Pressure Manifold Harness. Includes 17 - 21. Formula Deluxe 600. Formula Deluxe 700.
-
18409015400 Female Terminal Housing (6 Circuits). Formula Deluxe 600. Formula Deluxe 700.Female Terminal Housing (6 Circuits). Formula Deluxe 600. Formula Deluxe 700.
-
19409015100 Female Terminal. Formula Deluxe 600. Formula Deluxe 700.Female Terminal. Formula Deluxe 600. Formula Deluxe 700.
-
20409014900 (Female) Secondary Lock (6 Circuits) (Deutsch). Formula Deluxe 600. Formula Deluxe 700.(Female) Secondary Lock (6 Circuits) (Deutsch). Formula Deluxe 600. Formula Deluxe 700.
-
21415079900 Tubing 10 mm. Formula Deluxe 600. Formula Deluxe 700.Tubing 10 mm. Formula Deluxe 600. Formula Deluxe 700.
-
22415061600 Solenoid Lock. Formula Deluxe 600. Formula Deluxe 700.Solenoid Lock. Formula Deluxe 600. Formula Deluxe 700.
-
23241140060 Screw K40 x 10. Formula Deluxe 600. Formula Deluxe 700.Screw K40 x 10. Formula Deluxe 600. Formula Deluxe 700.
-
24404161825 Starter Jet. Formula Deluxe 600. Formula Deluxe 700.Starter Jet. Formula Deluxe 600. Formula Deluxe 700.
-
25512058949 Cap. Formula Deluxe 600. Formula Deluxe 700.Cap. Formula Deluxe 600. Formula Deluxe 700.
-
26512058950 O-Ring. Formula Deluxe 600. Formula Deluxe 700.O-Ring. Formula Deluxe 600. Formula Deluxe 700.
-
27512058919 Support. Formula Deluxe 600. Formula Deluxe 700.Support. Formula Deluxe 600. Formula Deluxe 700.
-
28415080200 Line. Formula Deluxe 600. Formula Deluxe 700.Line. Formula Deluxe 600. Formula Deluxe 700.
-
29409901700 Tubing. Formula Deluxe 600. Formula Deluxe 700.Tubing. Formula Deluxe 600. Formula Deluxe 700.
-
30414580600 Elbow Male Connector. Formula Deluxe 600. Formula Deluxe 700.Elbow Male Connector. Formula Deluxe 600. Formula Deluxe 700.
-
31572045500 T'' Connector`Formula Deluxe 600.``T'' Connector`Formula Deluxe 600.``
-
32270600000 Air Sensor. Formula Deluxe 600. Formula Deluxe 700.Air Sensor. Formula Deluxe 600. Formula Deluxe 700.
-
33515175589 Temperature Harness. Includes 33 - 41. Formula Deluxe 600. Formula Deluxe 700.Temperature Harness. Includes 33 - 41. Formula Deluxe 600. Formula Deluxe 700.
-
34278000998 Female Terminal. Formula Deluxe 600. Formula Deluxe 700.Female Terminal. Formula Deluxe 600. Formula Deluxe 700.
-
35278000999 Seal. Formula Deluxe 600. Formula Deluxe 700.Seal. Formula Deluxe 600. Formula Deluxe 700.
-
36409015100 Female Terminal. Formula Deluxe 600. Formula Deluxe 700.Female Terminal. Formula Deluxe 600. Formula Deluxe 700.
-
37515175245 Female Terminal Housing (4 Circuits). Formula Deluxe 600. Formula Deluxe 700.Female Terminal Housing (4 Circuits). Formula Deluxe 600. Formula Deluxe 700.
-
38515175246 Female Lock (4 Circuits). Formula Deluxe 600. Formula Deluxe 700.Female Lock (4 Circuits). Formula Deluxe 600. Formula Deluxe 700.
-
39515175303 Plug. Formula Deluxe 600. Formula Deluxe 700.Plug. Formula Deluxe 600. Formula Deluxe 700.
-
40515175332 Tubing. Formula Deluxe 600. Formula Deluxe 700.Tubing. Formula Deluxe 600. Formula Deluxe 700.
-
41515175588 Female Terminal Housing (2 Circuits). Formula Deluxe 600. Formula Deluxe 700.Female Terminal Housing (2 Circuits). Formula Deluxe 600. Formula Deluxe 700.
-
42404161904 Hose. Formula Deluxe 600. Formula Deluxe 700.Hose. Formula Deluxe 600. Formula Deluxe 700.
