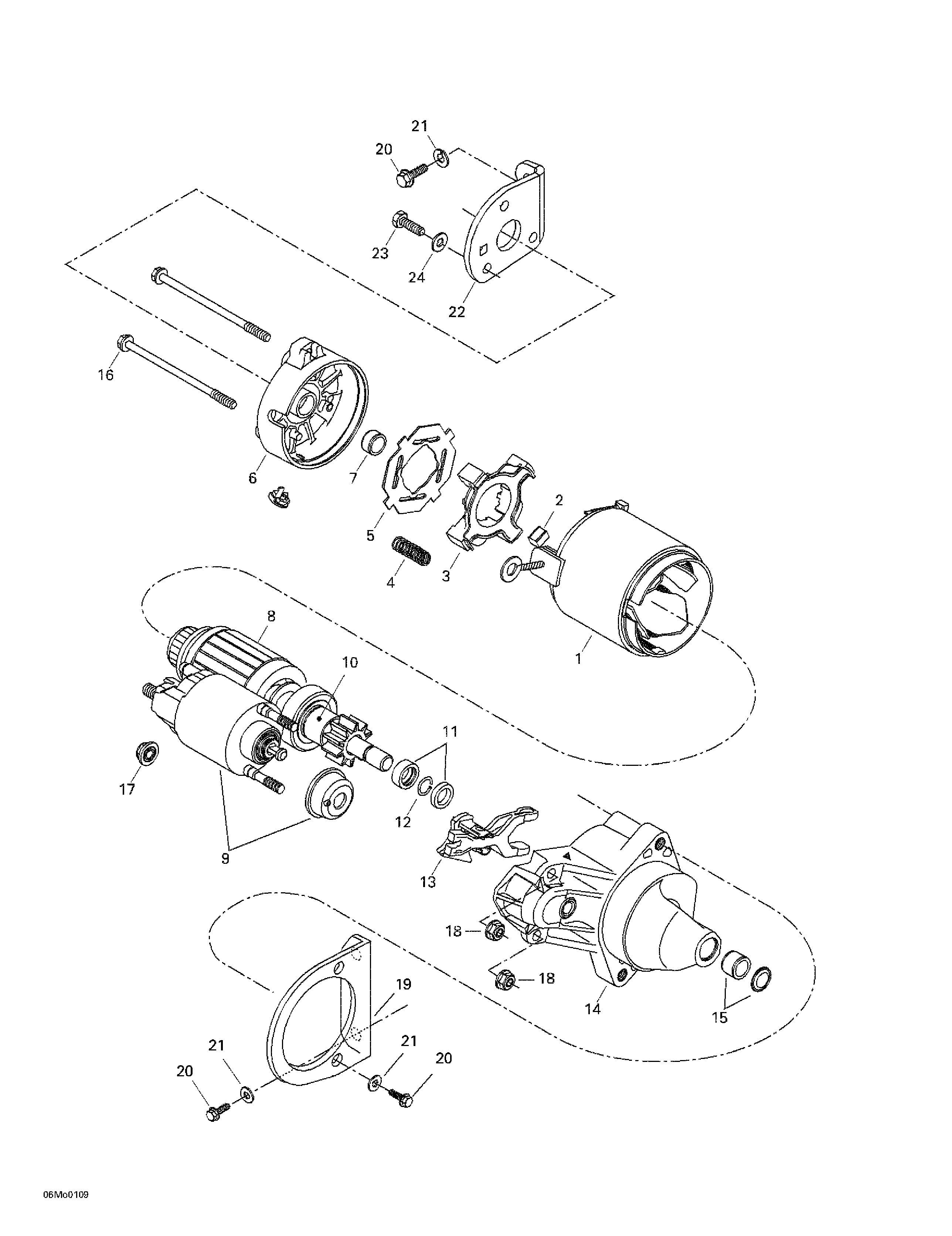

04- Electric Starter для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1515175565 Starter. Includes 1 - 18.Starter. Includes 1 - 18.
-
1410213106 Starter HousingStarter Housing
-
2410213107 Brush KitBrush Kit
-
3410209700 Brush HolderBrush Holder
-
4410209800 Brush SpringBrush Spring
-
5410209900 InsulatorInsulator
-
7410210100 Bushing BrassBushing Brass
-
8410210200 Armature Ass'yArmature Ass'y
-
9410210300 Switch Ass'ySwitch Ass'y
-
10410210400 Starter ClutchStarter Clutch
-
11410212500 NutNut
-
12410212600 CirclipCirclip
-
13410213109 LeverLever
-
14410213113 HousingHousing
-
15410210900 Bushing BrassBushing Brass
-
16410213112 BoltBolt
-
17410211100 NutNut
-
18410211200 NutNut
-
19515175142 Starter Bracket (PTO)Starter Bracket (PTO)
-
20207582044 Hex. Flanged Screw M8 x 20 (Scotch Grip)Hex. Flanged Screw M8 x 20 (Scotch Grip)
-
21250200008 Flat Washer 8 mmFlat Washer 8 mm
-
22515175441 Starter Bracket (MAG)Starter Bracket (MAG)
-
23207361644 Hex. Screw M6 x 16 (Scotch Grip)Hex. Screw M6 x 16 (Scotch Grip)
-
24234061410 Flat Washer 6 mmFlat Washer 6 mm
