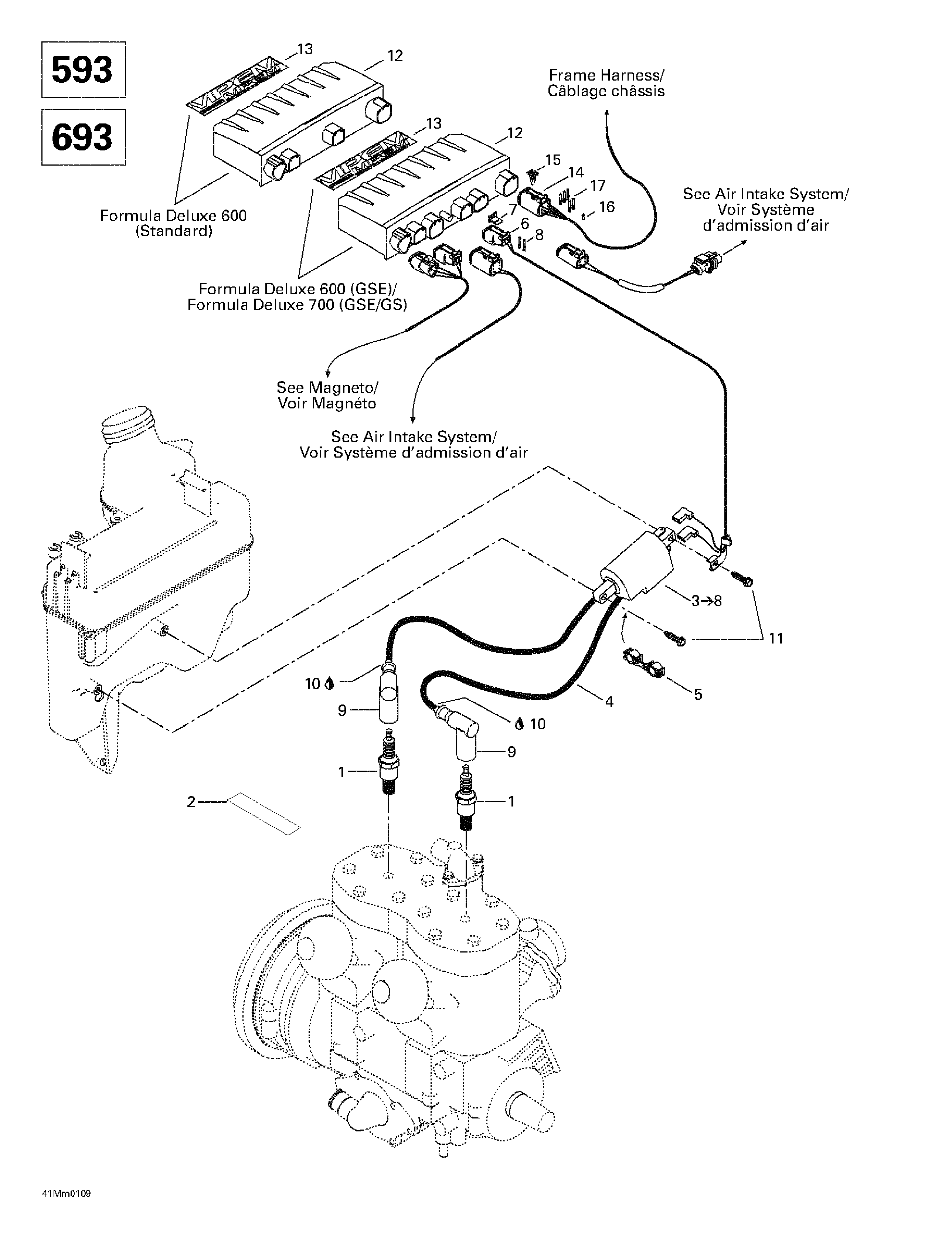

03- Ignition (593, 693) для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1414961100 Spark Plug (NGK BR9ES). Formula Deluxe 600. Formula Deluxe 700.Spark Plug (NGK BR9ES). Formula Deluxe 600. Formula Deluxe 700.
-
2516000986 Spark Plug Decal. Formula Deluxe 600. Formula Deluxe 700.Spark Plug Decal. Formula Deluxe 600. Formula Deluxe 700.
-
3512059039 Ignition Coil. Includes 3 - 8. Formula Deluxe 600. Formula Deluxe 700.Ignition Coil. Includes 3 - 8. Formula Deluxe 600. Formula Deluxe 700.
-
4278001268 Spark Plug Wire. Formula Deluxe 600. Formula Deluxe 700.Spark Plug Wire. Formula Deluxe 600. Formula Deluxe 700.
-
5410914600 Plastic Clip. Formula Deluxe 600. Formula Deluxe 700.Plastic Clip. Formula Deluxe 600. Formula Deluxe 700.
-
6409207300 Female Terminal Housing (2 circuits). Formula Deluxe 600. Formula Deluxe 700.Female Terminal Housing (2 circuits). Formula Deluxe 600. Formula Deluxe 700.
-
7409207100 Female Lock (2 circuits). Formula Deluxe 600. Formula Deluxe 700.Female Lock (2 circuits). Formula Deluxe 600. Formula Deluxe 700.
-
8278000632 Female Terminal. Formula Deluxe 600. Formula Deluxe 700.Female Terminal. Formula Deluxe 600. Formula Deluxe 700.
-
9278000237 Spark Plug Protector. Formula Deluxe 600. Formula Deluxe 700.Spark Plug Protector. Formula Deluxe 600. Formula Deluxe 700.
-
10293550004 Dielectric Grease, 150 g. Formula Deluxe 600. Formula Deluxe 700.Dielectric Grease, 150 g. Formula Deluxe 600. Formula Deluxe 700.
-
11250000005 Hex. Tapping Screw. Formula Deluxe 600. Formula Deluxe 700.Hex. Tapping Screw. Formula Deluxe 600. Formula Deluxe 700.
-
12512059300 Calibration Module (Standard). Formula Deluxe 600.Calibration Module (Standard). Formula Deluxe 600.
-
512059298 Calibration Module (GSE). Formula Deluxe 600.Calibration Module (GSE). Formula Deluxe 600.
-
512059385 Calibration Module (GSE/GS). Formula Deluxe 700.Calibration Module (GSE/GS). Formula Deluxe 700.
-
13516000245 Electrical Box Decal. Formula Deluxe 600. Formula Deluxe 700.Electrical Box Decal. Formula Deluxe 600. Formula Deluxe 700.
-
14278000736 Female Terminal Housing (6 circuits). Formula Deluxe 600. Formula Deluxe 700.Female Terminal Housing (6 circuits). Formula Deluxe 600. Formula Deluxe 700.
-
15278000737 (Female) Secondary Lock (6 Circuits) (Deutsch). Formula Deluxe 600. Formula Deluxe 700.(Female) Secondary Lock (6 Circuits) (Deutsch). Formula Deluxe 600. Formula Deluxe 700.
-
16293000052 Plug. Formula Deluxe 600. Formula Deluxe 700.Plug. Formula Deluxe 600. Formula Deluxe 700.
-
17278000632 Female Terminal. Formula Deluxe 600. Formula Deluxe 700.Female Terminal. Formula Deluxe 600. Formula Deluxe 700.
