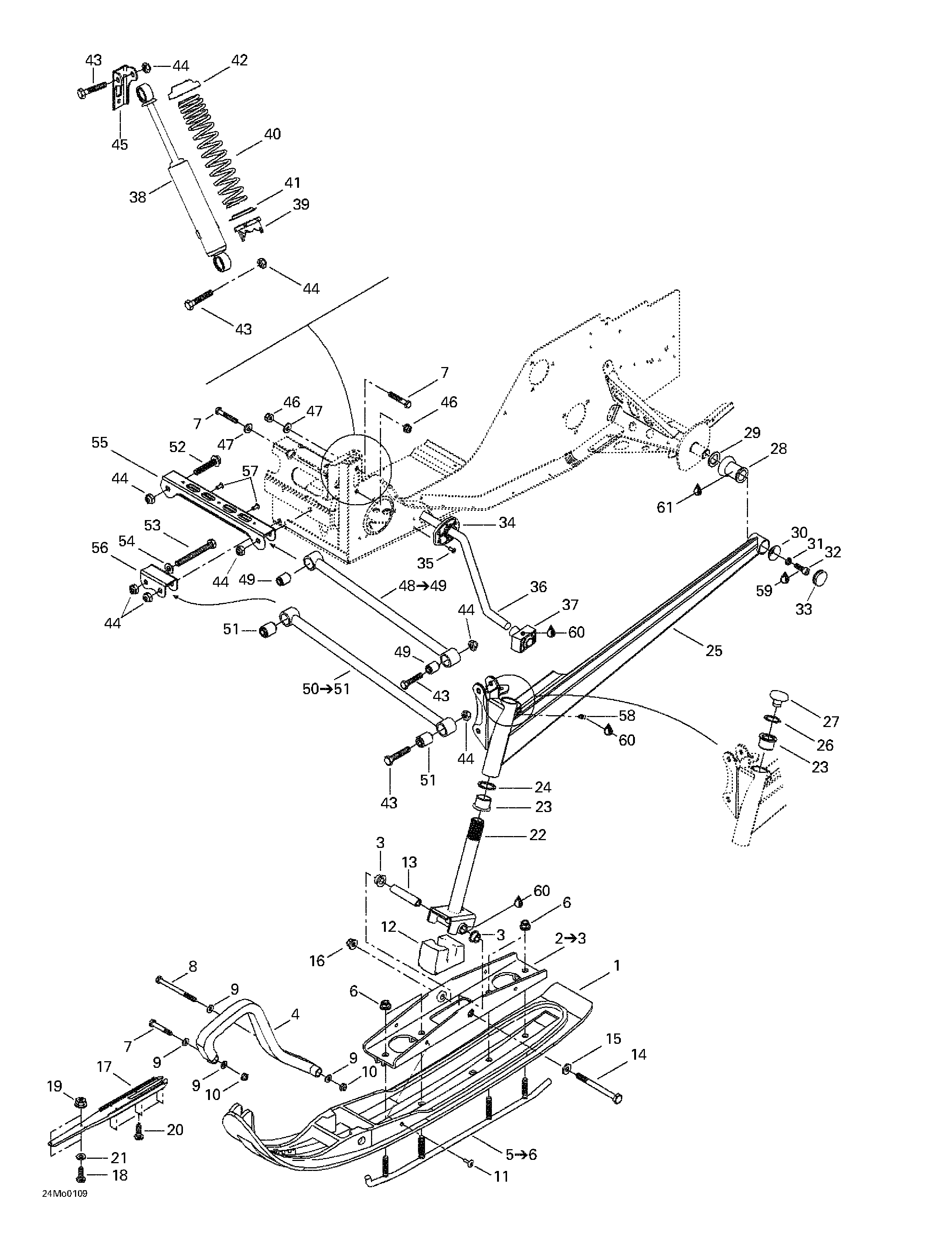

07- Front Suspension And Ski для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1505070189 Ski LinerSki Liner
-
505070190 Ski Liner (Europe). Formula Deluxe 600. Formula Deluxe 700.Ski Liner (Europe). Formula Deluxe 600. Formula Deluxe 700.
-
2505070055 Bridge Ass'y. Includes 2 - 3.Bridge Ass'y. Includes 2 - 3.
-
3505070001 BushingBushing
-
4572101000 Plastic HandlePlastic Handle
-
5860501900 Carbide Runner Kit. Includes 5 - 6.Carbide Runner Kit. Includes 5 - 6.
-
6233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
7207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
8230080044 Hex. Screw M8 x 100Hex. Screw M8 x 100
-
9234081410 Flat Washer 8 mmFlat Washer 8 mm
-
10232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
11390911100 Pop Rivet 1/4''Pop Rivet 1/4''
-
12506151233 Ski StopperSki Stopper
-
13506133300 SpacerSpacer
-
14250000001 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
15732900049 WasherWasher
-
16732610084 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
17505070232 Proactive ControlProactive Control
-
18250000015 Socket Screw M5 x 25Socket Screw M5 x 25
-
19233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
20250000016 Phillips ScrewPhillips Screw
-
21234061410 Flat Washer 6 mmFlat Washer 6 mm
-
22506151234 Ski LegSki Leg
-
23505070003 CushionCushion
-
24505070004 WasherWasher
-
25505070645 R.H. Swing ArmR.H. Swing Arm
-
505070646 L.H. Swing ArmL.H. Swing Arm
-
26371910400 CirclipCirclip
-
27572091300 CapCap
-
28570062200 DamperDamper
-
29503146700 WasherWasher
-
30506115800 CupCup
-
31234181401 Lock Washer 8 mmLock Washer 8 mm
-
32205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
33572045900 CapCap
-
34505070139 BushingBushing
-
35390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
36505070563 StabilisatorStabilisator
-
37505070121 Ball Joint BlockBall Joint Block
-
38505070680 Front Shock Ass'yFront Shock Ass'y
-
39503183700 CamCam
-
40505070686 SpringSpring
-
41503187500 Spring GuideSpring Guide
-
42503140600 Spring StopperSpring Stopper
-
43207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
44233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
45518317518 R.H. Shock BracketR.H. Shock Bracket
-
518317519 L.H. Shock BracketL.H. Shock Bracket
-
46233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
47506151245 WasherWasher
-
48505070580 Upper Arm Ass'y. Includes 48 - 49.Upper Arm Ass'y. Includes 48 - 49.
-
49505070025 BushingBushing
-
50505070402 Lower Arm Ass'y. Includes 50 - 51.Lower Arm Ass'y. Includes 50 - 51.
-
51505070025 BushingBushing
-
52207605544 Hex. Flanged Screw M10 x 55Hex. Flanged Screw M10 x 55
-
53207009544 Hex. Screw M10 x 95Hex. Screw M10 x 95
-
54234001410 Flat Washer 10 mmFlat Washer 10 mm
-
55505070010 Upper Arm BracketUpper Arm Bracket
-
56505070011 Lower Arm BracketLower Arm Bracket
-
57390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
58408200700 Grease FittingGrease Fitting
-
59293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
60219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
61293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
