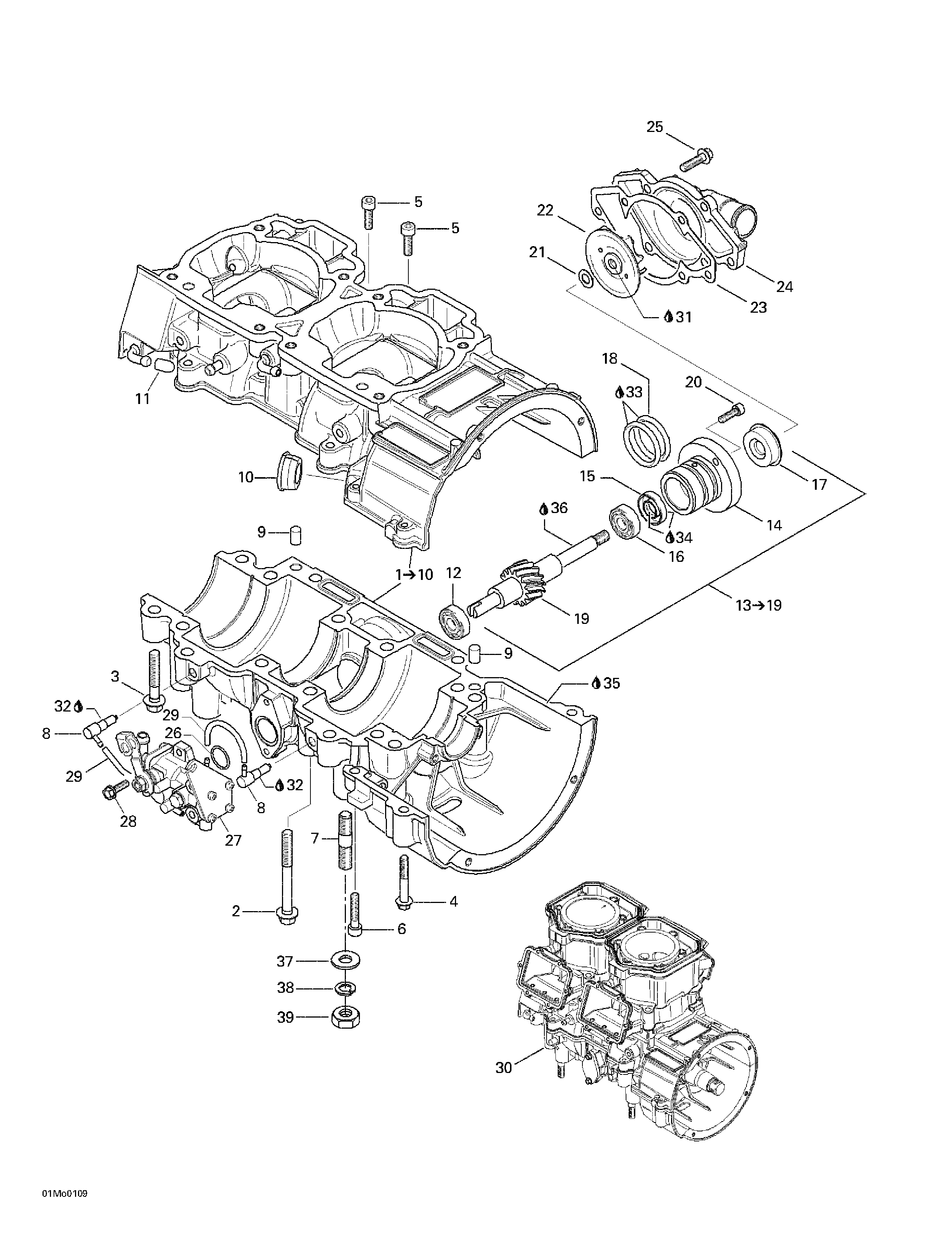

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1420888761 Crankcase Ass'y. Includes 1 - 10. Formula Deluxe 500. Formula Deluxe 600.Crankcase Ass'y. Includes 1 - 10. Formula Deluxe 500. Formula Deluxe 600.
-
420888275 Crankcase Ass'y. Formula Deluxe 700.Crankcase Ass'y. Formula Deluxe 700.
-
2420640836 Hex. Collar Screw M8 x 75Hex. Collar Screw M8 x 75
-
3420640431 Hex. Collar Screw M8 x 45Hex. Collar Screw M8 x 45
-
4420640311 Hex. Collar Screw M6 x 45Hex. Collar Screw M6 x 45
-
5205062044 Socket Head Screw M6 x 20. Formula Deluxe 500. Formula Deluxe 600.Socket Head Screw M6 x 20. Formula Deluxe 500. Formula Deluxe 600.
-
420840401 Socket Head Screw M6 x 22. Formula Deluxe 700.Socket Head Screw M6 x 22. Formula Deluxe 700.
-
6205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
7420941644 Stud M10 x 23Stud M10 x 23
-
8420956510 Check ValveCheck Valve
-
9290632010 Dowel PinDowel Pin
-
10420860965 Cable GrommetCable Grommet
-
11420960770 CapCap
-
12420232100 Ball BearingBall Bearing
-
13420837421 Water Pump/Oil Pump Ass'y. Includes 13 - 19.Water Pump/Oil Pump Ass'y. Includes 13 - 19.
-
15420230195 Oil SealOil Seal
-
16420232100 Ball BearingBall Bearing
-
17420650370 Rotary SealRotary Seal
-
18420950890 O-RingO-Ring
-
20420840511 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
21420227945 WasherWasher
-
22420222505 Water ImpellerWater Impeller
-
23420931810 GasketGasket
-
24420922630 Water Pump HousingWater Pump Housing
-
25420240031 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
26420230400 O-RingO-Ring
-
27420888260 Oil Pump Ass'y. Formula Deluxe 500.Oil Pump Ass'y. Formula Deluxe 500.
-
420888425 Oil Pump Ass'y. Formula Deluxe 600.Oil Pump Ass'y. Formula Deluxe 600.
-
420888422 Oil Pump Ass'y. Formula Deluxe 700.Oil Pump Ass'y. Formula Deluxe 700.
-
28420941925 Screw M5 x 16Screw M5 x 16
-
29414413800 Oil LineOil Line
-
30420049302 Short Block Ass'y. Formula Deluxe 500.Short Block Ass'y. Formula Deluxe 500.
-
420059302 Short Block Ass'y. Formula Deluxe 600.Short Block Ass'y. Formula Deluxe 600.
-
420069304 Short Block Ass'y. Formula Deluxe 700.Short Block Ass'y. Formula Deluxe 700.
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
32413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
33413707000 Molykote 111Molykote 111
-
34420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
35420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
36413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
37234001410 Flat Washer 10 mmFlat Washer 10 mm
-
38234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
39232006414 Hex. Nut M10Hex. Nut M10
