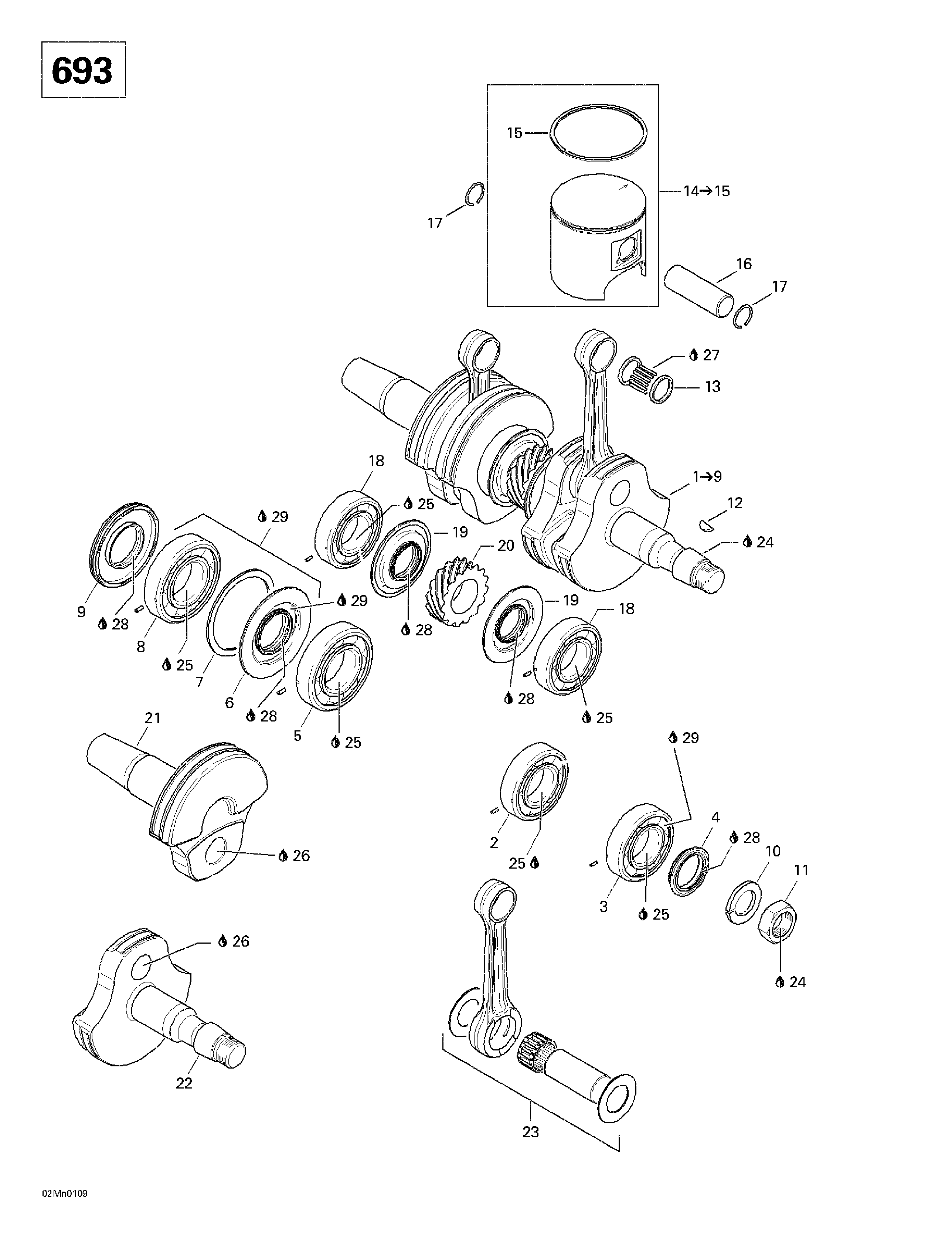

01- Crankshaft And Pistons (693) для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1420888285 Crankshaft Ass'y. Includes 1 - 9. Formula Deluxe 700.Crankshaft Ass'y. Includes 1 - 9. Formula Deluxe 700.
-
2420832635 Ball Bearing 6207. Formula Deluxe 700.Ball Bearing 6207. Formula Deluxe 700.
-
3420832575 Ball Bearing 6207. Formula Deluxe 700.Ball Bearing 6207. Formula Deluxe 700.
-
4420931790 Oil Seal. Formula Deluxe 700.Oil Seal. Formula Deluxe 700.
-
5420832600 Ball Bearing 6208. Formula Deluxe 700.Ball Bearing 6208. Formula Deluxe 700.
-
6420931910 Oil Seal. Formula Deluxe 700.Oil Seal. Formula Deluxe 700.
-
7420926190 Washer. Formula Deluxe 700.Washer. Formula Deluxe 700.
-
8420832600 Ball Bearing 6208. Formula Deluxe 700.Ball Bearing 6208. Formula Deluxe 700.
-
9420931280 Oil Seal. Formula Deluxe 700.Oil Seal. Formula Deluxe 700.
-
10420945759 Lock Washer 22 mm. Formula Deluxe 700.Lock Washer 22 mm. Formula Deluxe 700.
-
11420842230 Nut M22. Formula Deluxe 700.Nut M22. Formula Deluxe 700.
-
12420246015 Woodfuff Key. Formula Deluxe 700.Woodfuff Key. Formula Deluxe 700.
-
13420832425 Needle Bearing. Formula Deluxe 700.Needle Bearing. Formula Deluxe 700.
-
14420888296 Piston Ass'y (1 Ring 77.88 mm). Includes 14 - 15. Formula Deluxe 700.Piston Ass'y (1 Ring 77.88 mm). Includes 14 - 15. Formula Deluxe 700.
-
15420815225 Semi-Trapez Ring. Formula Deluxe 700.Semi-Trapez Ring. Formula Deluxe 700.
-
16420916370 Gudgeon Pin. Formula Deluxe 700.Gudgeon Pin. Formula Deluxe 700.
-
17420845102 Piston Circlip. Formula Deluxe 700.Piston Circlip. Formula Deluxe 700.
-
18420832575 Ball Bearing 6207. Formula Deluxe 700.Ball Bearing 6207. Formula Deluxe 700.
-
19420931455 Oil Seal. Formula Deluxe 700.Oil Seal. Formula Deluxe 700.
-
20420834355 Central Gear 15 Teeth. Formula Deluxe 700.Central Gear 15 Teeth. Formula Deluxe 700.
-
21420818708 Crankshaft (PTO side). Formula Deluxe 700.Crankshaft (PTO side). Formula Deluxe 700.
-
22420818738 Crankshaft (MAG side). Formula Deluxe 700.Crankshaft (MAG side). Formula Deluxe 700.
-
23420888288 Rod Repair Kit (MAG side). Formula Deluxe 700.Rod Repair Kit (MAG side). Formula Deluxe 700.
-
420888289 Rod Repair Kit (PTO side). Formula Deluxe 700.Rod Repair Kit (PTO side). Formula Deluxe 700.
-
24293800060 Loctite 243, 10 ml. Formula Deluxe 700.Loctite 243, 10 ml. Formula Deluxe 700.
-
25293800023 Loctite 767, Antiseize Lubricant, 454 g. Formula Deluxe 700.Loctite 767, Antiseize Lubricant, 454 g. Formula Deluxe 700.
-
26413711400 Loctite 648, 10 ml. Formula Deluxe 700.Loctite 648, 10 ml. Formula Deluxe 700.
-
27413802900 Injection Oil (12 x 1 Liter). Formula Deluxe 700.Injection Oil (12 x 1 Liter). Formula Deluxe 700.
-
28420899271 Petamo Grease, GHY133N, 400 g. Formula Deluxe 700.Petamo Grease, GHY133N, 400 g. Formula Deluxe 700.
-
29293550021 Isoflex Grease, 45 g. Formula Deluxe 700.Isoflex Grease, 45 g. Formula Deluxe 700.
