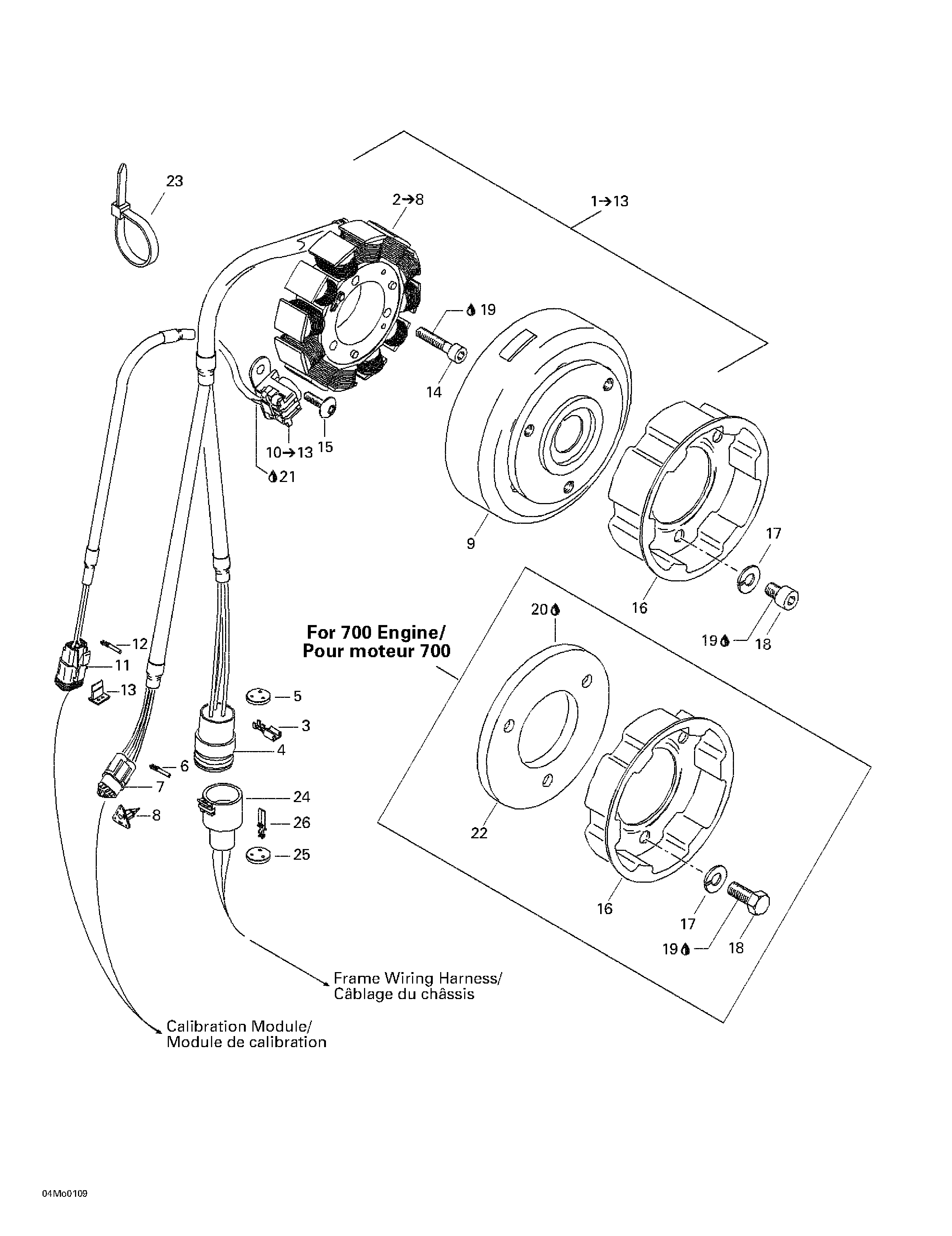

03- Magneto (12V, 290W) для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
2410922934 Stator Plate Ass'y. Includes 2 - 8.Stator Plate Ass'y. Includes 2 - 8.
-
3409011900 Female TerminalFemale Terminal
-
4409208200 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
5409208500 SealSeal
-
6278000632 Female TerminalFemale Terminal
-
7409207400 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
8409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
9410922933 FlywheelFlywheel
-
10410922925 Pick-up Ass'y. Includes 10 - 13.Pick-up Ass'y. Includes 10 - 13.
-
11409207300 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
12278000632 Female TerminalFemale Terminal
-
13409207100 Female Lock (2 circuits)Female Lock (2 circuits)
-
14205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
15420640321 Screw M5 x 16Screw M5 x 16
-
16420852419 Starting Pulley. Formula Deluxe 500. Formula Deluxe 600.Starting Pulley. Formula Deluxe 500. Formula Deluxe 600.
-
420852530 Starting Pulley. Formula Deluxe 700.Starting Pulley. Formula Deluxe 700.
-
17420945752 Lock Washer 8 mmLock Washer 8 mm
-
18420841520 Socket Head Screw M8 x 12. Formula Deluxe 500. Formula Deluxe 600.Socket Head Screw M8 x 12. Formula Deluxe 500. Formula Deluxe 600.
-
207182044 Hex. Screw M8 x 20. Formula Deluxe 700.Hex. Screw M8 x 20. Formula Deluxe 700.
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
20413711400 Loctite 648, 10 ml. Formula Deluxe 700.Loctite 648, 10 ml. Formula Deluxe 700.
-
22420866756 Flywheel. Formula Deluxe 700.Flywheel. Formula Deluxe 700.
-
23293750001 Tie Rap 94 mmTie Rap 94 mm
-
24409207900 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
25409208500 Seal (3 circuits)Seal (3 circuits)
-
26409011100 Male TerminalMale Terminal
