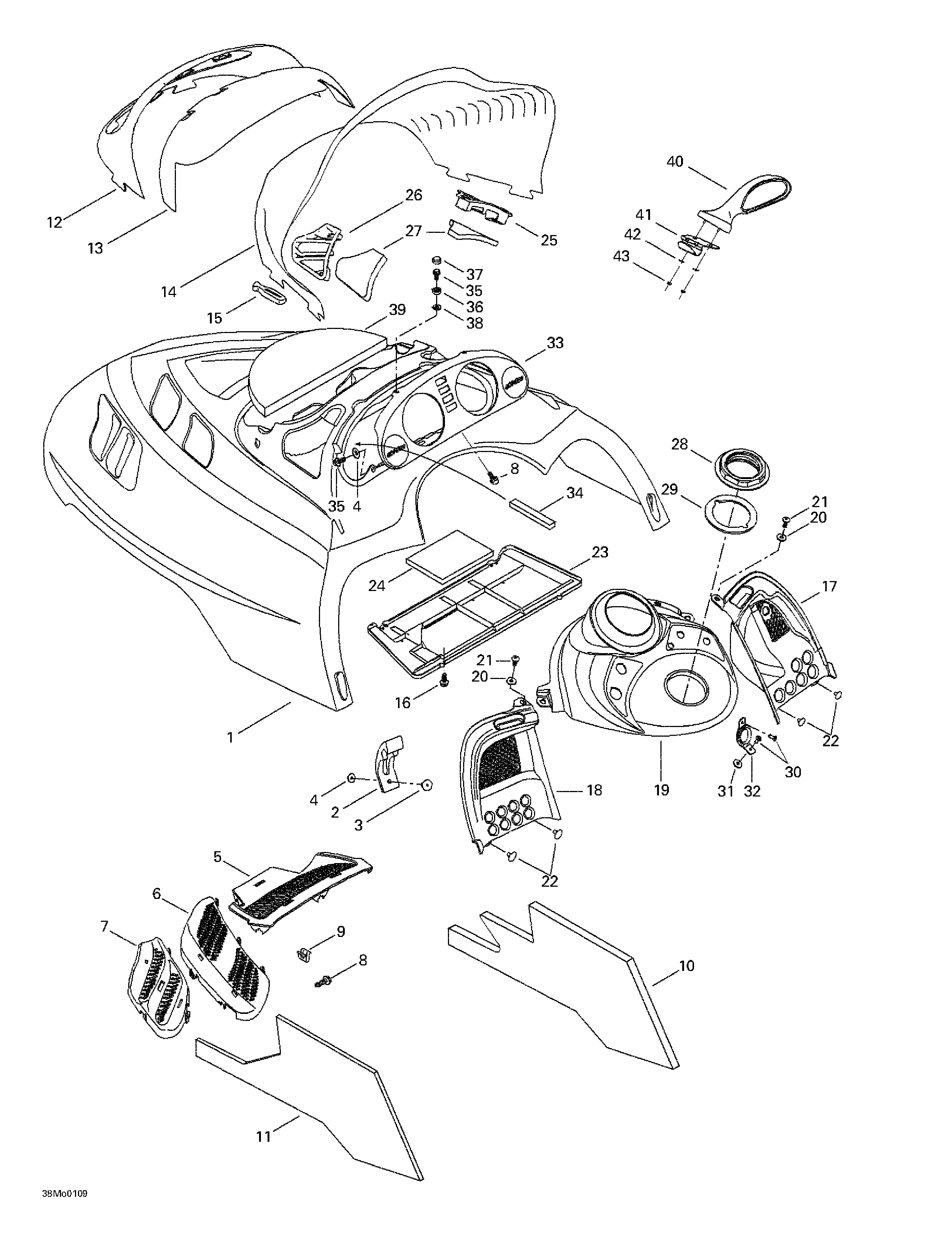

09- Cab, Console для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1517302469 Hood (Metallic Radical Red (B-215))Hood (Metallic Radical Red (B-215))
-
517302507 Hood (Pearl Cloud (B-210))Hood (Pearl Cloud (B-210))
-
2570027100 Hood LatchHood Latch
-
3390906800 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517124300 WasherWasher
-
5517302026 Center Grill (Black)Center Grill (Black)
-
6517302028 R.H. Intermediate Grill (Black)R.H. Intermediate Grill (Black)
-
517302031 L.H. Intermediate Grill (Black)L.H. Intermediate Grill (Black)
-
7517302034 R.H. Side Grill (Black)R.H. Side Grill (Black)
-
517302036 L.H. Side Grill (Black)L.H. Side Grill (Black)
-
8732601210 Hex. Tapping ScrewHex. Tapping Screw
-
9517302183 ClipClip
-
10517302490 R.H. Side FoamR.H. Side Foam
-
11517302491 L.H. Side FoamL.H. Side Foam
-
12517302158 Headlamp MouldingHeadlamp Moulding
-
13517302003 Windshield SupportWindshield Support
-
14517302022 WindshieldWindshield
-
15570023800 Windshield LatchWindshield Latch
-
16243141640 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
17517302434 R.H. ConsoleR.H. Console
-
18517302006 L.H. ConsoleL.H. Console
-
19517302464 Center Console (Black) (Standard/GS)Center Console (Black) (Standard/GS)
-
517302517 Center Console (Black) (GSE). Formula Deluxe 600. Formula Deluxe 700.Center Console (Black) (GSE). Formula Deluxe 600. Formula Deluxe 700.
-
20391301600 WasherWasher
-
21732600030 ScrewScrew
-
22390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
23517302413 Air Intake PlateAir Intake Plate
-
24517302425 Secondary FoamSecondary Foam
-
25517302024 R.H. Air Intake GrillR.H. Air Intake Grill
-
26517302025 L.H. Air Intake GrillL.H. Air Intake Grill
-
27517302151 Air Intake FoamAir Intake Foam
-
28517302043 Console NutConsole Nut
-
29293250029 GasketGasket
-
30390409400 Pop Rivet 5/32''Pop Rivet 5/32''
-
31517302286 Rubber StopperRubber Stopper
-
32517302129 Rope GuideRope Guide
-
33572098604 Indicator Support (Standard). Formula Deluxe 500. Formula Deluxe 600.Indicator Support (Standard). Formula Deluxe 500. Formula Deluxe 600.
-
517302479 Indicator Support (GSE). Formula Deluxe 600. Formula Deluxe 700.Indicator Support (GSE). Formula Deluxe 600. Formula Deluxe 700.
-
572098600 Indicator Support (GS). Formula Deluxe 700.Indicator Support (GS). Formula Deluxe 700.
-
34517302420 Foam (Standard). Formula Deluxe 500. Formula Deluxe 600.Foam (Standard). Formula Deluxe 500. Formula Deluxe 600.
-
35241140060 Hex. Flanged Screw K40 x 10Hex. Flanged Screw K40 x 10
-
36414436800 Retainer CapRetainer Cap
-
37414436900 Snap Cap (Black)Snap Cap (Black)
-
38234042600 Flat Washer 4 mmFlat Washer 4 mm
-
39517302317 Center Foam. (Canada/United States Only)Center Foam. (Canada/United States Only)
-
40517302471 R.H. MirrorR.H. Mirror
-
517302472 L.H. MirrorL.H. Mirror
-
41517302539 Retainer PlateRetainer Plate
-
42517124300 WasherWasher
-
43232541414 Elastic Stop Nut M4Elastic Stop Nut M4
