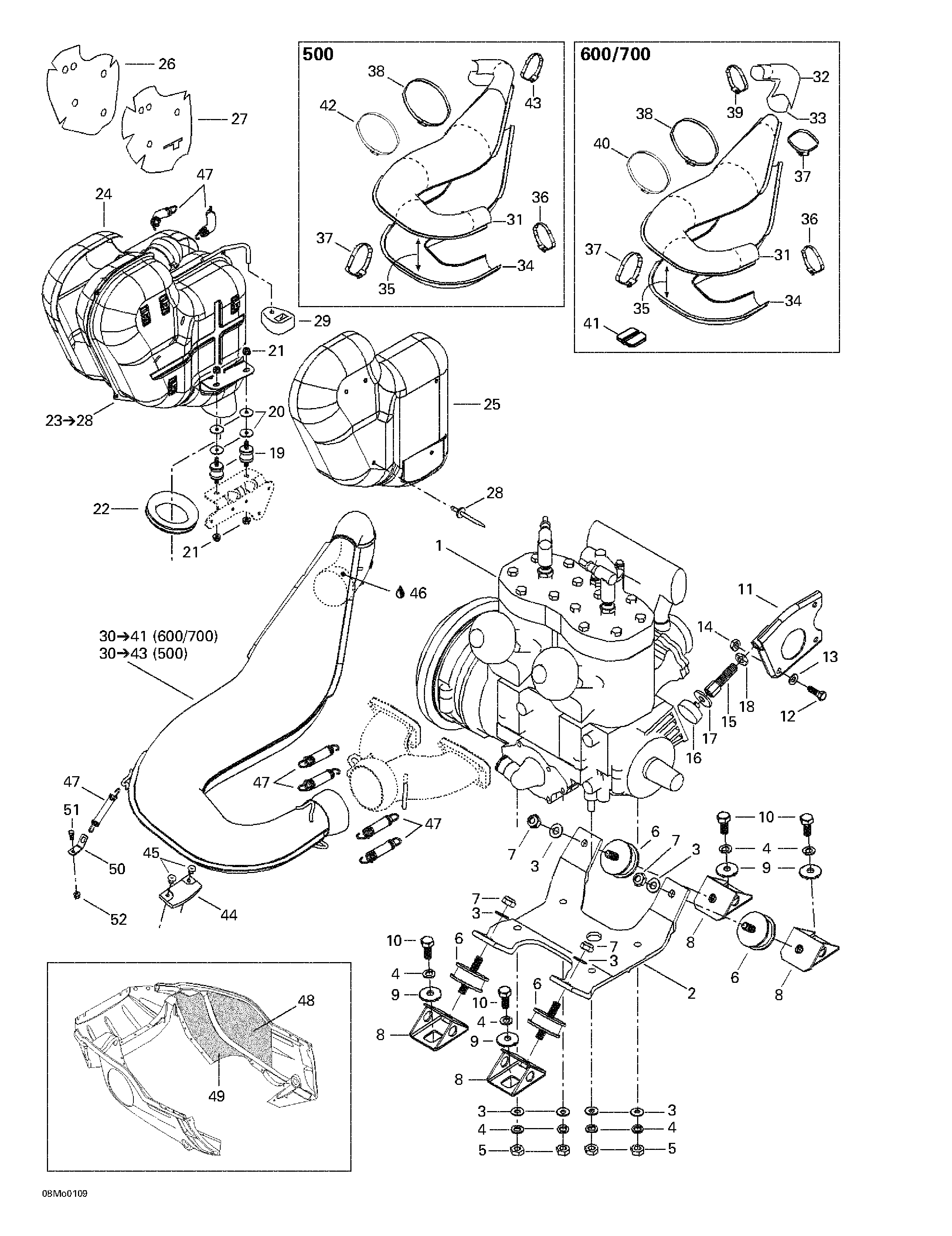

01- Engine Support And Muffler для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1400409420 > Engine. Formula Deluxe 500.> Engine. Formula Deluxe 500.
-
400509722 > Engine. Formula Deluxe 600.> Engine. Formula Deluxe 600.
-
400604019 > Engine. Formula Deluxe 700.> Engine. Formula Deluxe 700.
-
2512058000 Engine SupportEngine Support
-
3234001410 Flat Washer 10 mmFlat Washer 10 mm
-
4234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
5232006414 Hex. Nut M10Hex. Nut M10
-
6570127700 Rubber MountRubber Mount
-
7233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
8512050900 Engine SupportEngine Support
-
9512056700 Lock WasherLock Washer
-
10207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
11512058500 Support PlateSupport Plate
-
12207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
13234081410 Flat Washer 8 mmFlat Washer 8 mm
-
14232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
15512058800 Stopper ScrewStopper Screw
-
16512059056 StopperStopper
-
17512059057 WasherWasher
-
18732610019 R.H. Hex. Jam Nut M12R.H. Hex. Jam Nut M12
-
19514052994 Rubber MountRubber Mount
-
20514052891 Isolating WasherIsolating Washer
-
21233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
22570039000 Exhaust Grommet. Formula Deluxe 500. Formula Deluxe 600.Exhaust Grommet. Formula Deluxe 500. Formula Deluxe 600.
-
514053064 Exhaust Grommet. Formula Deluxe 700.Exhaust Grommet. Formula Deluxe 700.
-
23514053159 Muffler Ass'y. Includes 23 - 28. Formula Deluxe 500.Muffler Ass'y. Includes 23 - 28. Formula Deluxe 500.
-
514053212 Muffler Ass'y. Formula Deluxe 600.Muffler Ass'y. Formula Deluxe 600.
-
514053161 Muffler Ass'y. Formula Deluxe 700.Muffler Ass'y. Formula Deluxe 700.
-
24514053160 R.H. Heat ShieldR.H. Heat Shield
-
25514052733 L.H. Heat ShieldL.H. Heat Shield
-
26514052734 R.H. Insulating WoollR.H. Insulating Wooll
-
27514052844 L.H. Insulating WoollL.H. Insulating Wooll
-
28390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
29514052704 Rubber BumperRubber Bumper
-
30514053162 Tuned Pipe Ass'y. Includes 30 - 43. Formula Deluxe 500.Tuned Pipe Ass'y. Includes 30 - 43. Formula Deluxe 500.
-
30514053198 Tuned Pipe Ass'y. Includes 30 - 41. Formula Deluxe 600.Tuned Pipe Ass'y. Includes 30 - 41. Formula Deluxe 600.
-
30514053171 Tuned Pipe Ass'y. Includes 30 - 41. Formula Deluxe 700.Tuned Pipe Ass'y. Includes 30 - 41. Formula Deluxe 700.
-
31514053167 Upper Enveloppe. Formula Deluxe 500.Upper Enveloppe. Formula Deluxe 500.
-
514053192 Upper Enveloppe. Formula Deluxe 600. Formula Deluxe 700.Upper Enveloppe. Formula Deluxe 600. Formula Deluxe 700.
-
32514053193 Rear Upper Enveloppe. Formula Deluxe 600. Formula Deluxe 700.Rear Upper Enveloppe. Formula Deluxe 600. Formula Deluxe 700.
-
33514053196 Rear Lower Enveloppe. Formula Deluxe 600. Formula Deluxe 700.Rear Lower Enveloppe. Formula Deluxe 600. Formula Deluxe 700.
-
34514053168 Lower Enveloppe. Formula Deluxe 500.Lower Enveloppe. Formula Deluxe 500.
-
514053194 Lower Enveloppe. Formula Deluxe 600. Formula Deluxe 700.Lower Enveloppe. Formula Deluxe 600. Formula Deluxe 700.
-
35514052716 Insulating Wooll. Formula Deluxe 500.Insulating Wooll. Formula Deluxe 500.
-
514053197 Insulating Wooll. Formula Deluxe 600. Formula Deluxe 700.Insulating Wooll. Formula Deluxe 600. Formula Deluxe 700.
-
36514053074 Norma Gear ClampNorma Gear Clamp
-
37514052924 Norma Gear Clamp. Formula Deluxe 500.Norma Gear Clamp. Formula Deluxe 500.
-
514053224 Norma Gear Clamp. Formula Deluxe 600. Formula Deluxe 700.Norma Gear Clamp. Formula Deluxe 600. Formula Deluxe 700.
-
38514052735 Norma Gear ClampNorma Gear Clamp
-
39293650090 Norma Gear Clamp. Formula Deluxe 600. Formula Deluxe 700.Norma Gear Clamp. Formula Deluxe 600. Formula Deluxe 700.
-
40514052902 Norma Gear Clamp. Formula Deluxe 600. Formula Deluxe 700.Norma Gear Clamp. Formula Deluxe 600. Formula Deluxe 700.
-
41514053180 Rubber Pad. Formula Deluxe 600. Formula Deluxe 700.Rubber Pad. Formula Deluxe 600. Formula Deluxe 700.
-
42514052962 Norma Gear Clamp. Formula Deluxe 500.Norma Gear Clamp. Formula Deluxe 500.
-
43514052859 Norma Gear Clamp. Formula Deluxe 500.Norma Gear Clamp. Formula Deluxe 500.
-
44570044100 Rubber PadRubber Pad
-
45390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
46413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
47415107100 SpringSpring
-
48514052718 Reflective SheetReflective Sheet
-
49514052719 Reflective SheetReflective Sheet
-
50514053026 Spring BracketSpring Bracket
-
51207151244 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
52233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
