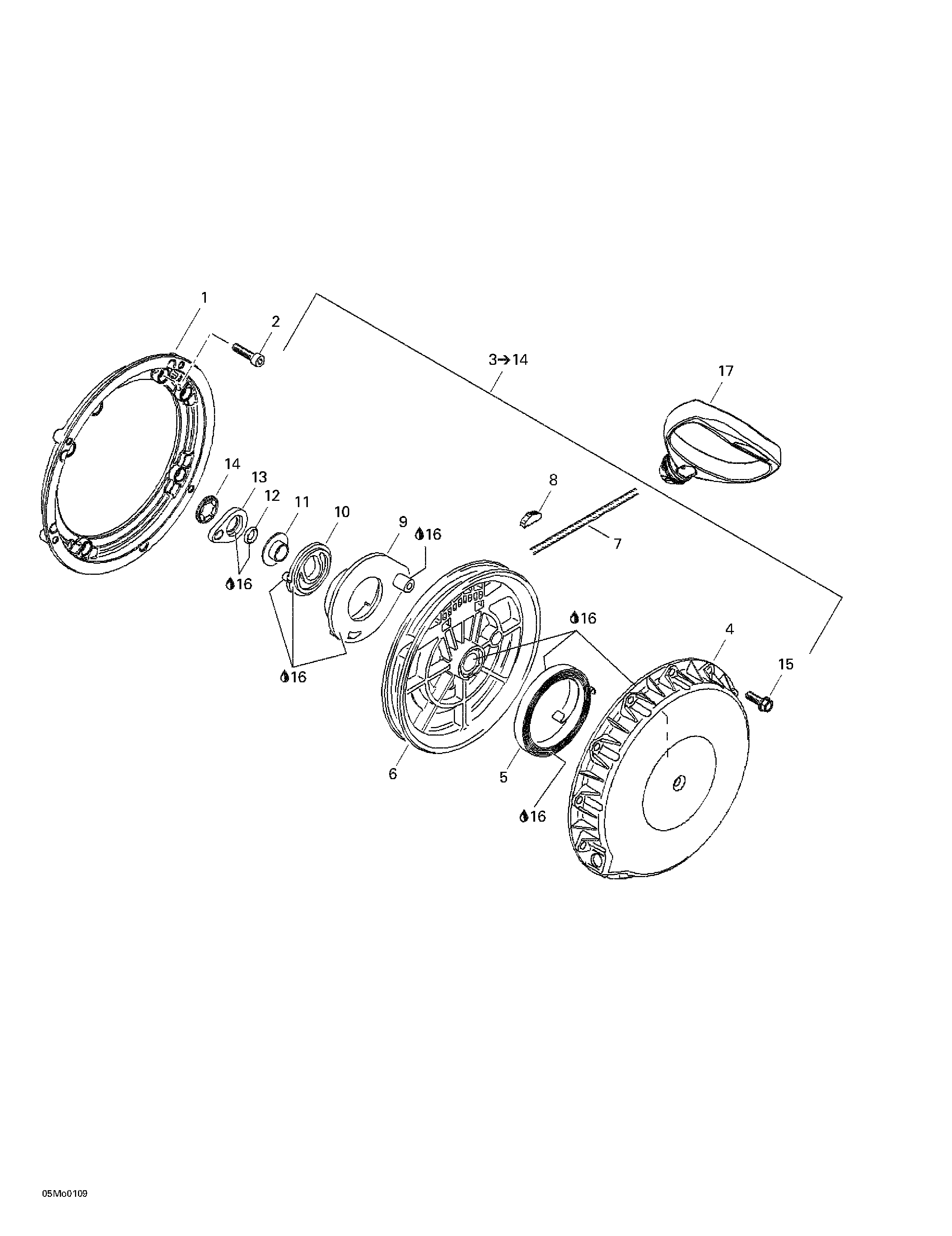

04- Rewind Starter для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1420810865 Connecting FlangeConnecting Flange
-
2420241236 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
3420887445 Rewind Starter Ass'y. Includes 3 - 14.Rewind Starter Ass'y. Includes 3 - 14.
-
4420811400 Starter HousingStarter Housing
-
5420939115 Rewind SpringRewind Spring
-
6420852285 Rope SheaveRope Sheave
-
7412500100 Starter Rope 2200 mmStarter Rope 2200 mm
-
8420852070 Key ClampKey Clamp
-
9420852297 PawlPawl
-
10420852303 Pawl LockPawl Lock
-
11420847925 Stage SleeveStage Sleeve
-
12420250400 O-RingO-Ring
-
13420852520 Lock RingLock Ring
-
14420845560 Locking ElementLocking Element
-
15420941256 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
16420899763 Molykote PG 54, 10 gMolykote PG 54, 10 g
-
17572084400 Starter GripStarter Grip
