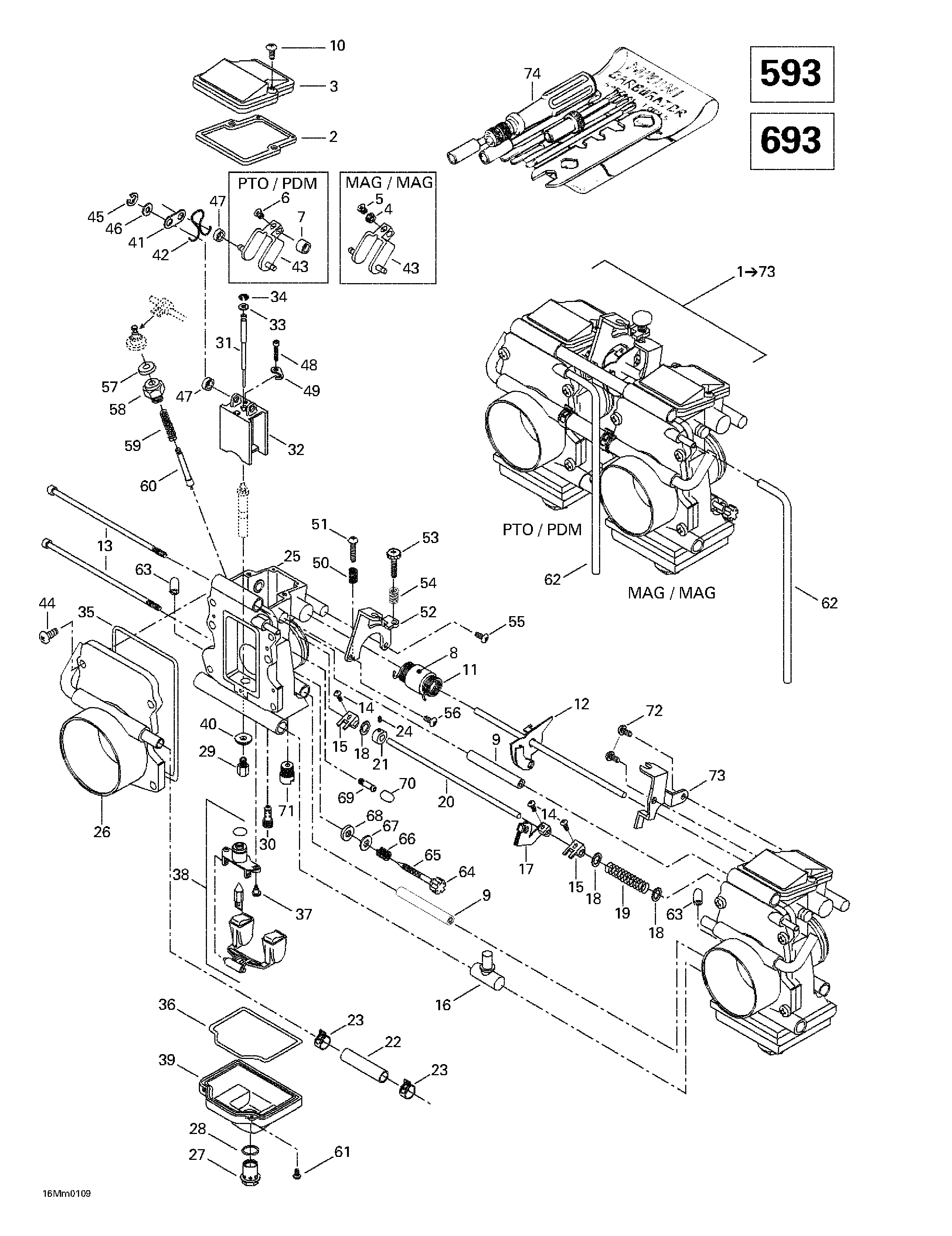

02- Carburetors (593, 693) для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1403138670 Carburetor Kit TM-40-B112. Includes 1 - 73. Formula Deluxe 600.Carburetor Kit TM-40-B112. Includes 1 - 73. Formula Deluxe 600.
-
403138671 Carburetor Kit TM-40-B115. Formula Deluxe 700.Carburetor Kit TM-40-B115. Formula Deluxe 700.
-
2404161940 Gasket. Formula Deluxe 600. Formula Deluxe 700.Gasket. Formula Deluxe 600. Formula Deluxe 700.
-
3404161939 Cover. Formula Deluxe 600. Formula Deluxe 700.Cover. Formula Deluxe 600. Formula Deluxe 700.
-
4404161937 Ring (MAG). Formula Deluxe 600. Formula Deluxe 700.Ring (MAG). Formula Deluxe 600. Formula Deluxe 700.
-
5404161936 Screw (MAG). Formula Deluxe 600. Formula Deluxe 700.Screw (MAG). Formula Deluxe 600. Formula Deluxe 700.
-
6404161928 Screw (PTO). Formula Deluxe 600. Formula Deluxe 700.Screw (PTO). Formula Deluxe 600. Formula Deluxe 700.
-
7404161926 Ring (PTO). Formula Deluxe 600. Formula Deluxe 700.Ring (PTO). Formula Deluxe 600. Formula Deluxe 700.
-
8404161925 Ring. Formula Deluxe 600. Formula Deluxe 700.Ring. Formula Deluxe 600. Formula Deluxe 700.
-
9404161924 Ring. Formula Deluxe 600. Formula Deluxe 700.Ring. Formula Deluxe 600. Formula Deluxe 700.
-
10404161923 Screw. Formula Deluxe 600. Formula Deluxe 700.Screw. Formula Deluxe 600. Formula Deluxe 700.
-
11404161915 Spring. Formula Deluxe 600. Formula Deluxe 700.Spring. Formula Deluxe 600. Formula Deluxe 700.
-
12404161914 Throttle Shaft. Formula Deluxe 600. Formula Deluxe 700.Throttle Shaft. Formula Deluxe 600. Formula Deluxe 700.
-
13404161911 Screw. Formula Deluxe 600. Formula Deluxe 700.Screw. Formula Deluxe 600. Formula Deluxe 700.
-
14404161910 Screw. Formula Deluxe 600. Formula Deluxe 700.Screw. Formula Deluxe 600. Formula Deluxe 700.
-
15404161909 Lever. Formula Deluxe 600. Formula Deluxe 700.Lever. Formula Deluxe 600. Formula Deluxe 700.
-
16404161905 Nipple. Formula Deluxe 600. Formula Deluxe 700.Nipple. Formula Deluxe 600. Formula Deluxe 700.
-
17404161901 Starter Lever. Formula Deluxe 600. Formula Deluxe 700.Starter Lever. Formula Deluxe 600. Formula Deluxe 700.
-
18404161894 Packing. Formula Deluxe 600. Formula Deluxe 700.Packing. Formula Deluxe 600. Formula Deluxe 700.
-
19404103500 Spring. Formula Deluxe 600. Formula Deluxe 700.Spring. Formula Deluxe 600. Formula Deluxe 700.
-
20404161952 Shaft. Formula Deluxe 600. Formula Deluxe 700.Shaft. Formula Deluxe 600. Formula Deluxe 700.
-
21404161951 Ring. Formula Deluxe 600. Formula Deluxe 700.Ring. Formula Deluxe 600. Formula Deluxe 700.
-
22404161956 Hose. Formula Deluxe 600. Formula Deluxe 700.Hose. Formula Deluxe 600. Formula Deluxe 700.
-
23404161957 Clip. Formula Deluxe 600. Formula Deluxe 700.Clip. Formula Deluxe 600. Formula Deluxe 700.
-
24404161949 Screw. Formula Deluxe 600. Formula Deluxe 700.Screw. Formula Deluxe 600. Formula Deluxe 700.
-
26404161959 Funnel (PTO). Formula Deluxe 600. Formula Deluxe 700.Funnel (PTO). Formula Deluxe 600. Formula Deluxe 700.
-
404161958 Funnel (MAG). Formula Deluxe 600. Formula Deluxe 700.Funnel (MAG). Formula Deluxe 600. Formula Deluxe 700.
-
27404161955 Drain Screw. Formula Deluxe 600. Formula Deluxe 700.Drain Screw. Formula Deluxe 600. Formula Deluxe 700.
-
28404161945 O-Ring. Formula Deluxe 600. Formula Deluxe 700.O-Ring. Formula Deluxe 600. Formula Deluxe 700.
-
29404108200 Main Jet 500. Formula Deluxe 600.Main Jet 500. Formula Deluxe 600.
-
404115100 Main Jet 520. Formula Deluxe 700.Main Jet 520. Formula Deluxe 700.
-
30404108600 Pilot Jet 20. Formula Deluxe 600.Pilot Jet 20. Formula Deluxe 600.
-
404161944 Pilot Jet 17.5. Formula Deluxe 700.Pilot Jet 17.5. Formula Deluxe 700.
-
31404161954 Needle J8-9hfy02-53. Formula Deluxe 600.Needle J8-9hfy02-53. Formula Deluxe 600.
-
404161953 Needle J8-9zly3-58. Formula Deluxe 700.Needle J8-9zly3-58. Formula Deluxe 700.
-
32404161950 Valve Piston 2.0. Formula Deluxe 600. Formula Deluxe 700.Valve Piston 2.0. Formula Deluxe 600. Formula Deluxe 700.
-
33404137600 Packing. Formula Deluxe 600. Formula Deluxe 700.Packing. Formula Deluxe 600. Formula Deluxe 700.
-
34404152200 E-Ring. Formula Deluxe 600. Formula Deluxe 700.E-Ring. Formula Deluxe 600. Formula Deluxe 700.
-
35404161935 O-Ring. Formula Deluxe 600. Formula Deluxe 700.O-Ring. Formula Deluxe 600. Formula Deluxe 700.
-
36404161961 O-Ring. Formula Deluxe 700.O-Ring. Formula Deluxe 700.
-
404161934 O-Ring. Formula Deluxe 600.O-Ring. Formula Deluxe 600.
-
37404161933 Screw. Formula Deluxe 600. Formula Deluxe 700.Screw. Formula Deluxe 600. Formula Deluxe 700.
-
38404161932 Float. Formula Deluxe 600. Formula Deluxe 700.Float. Formula Deluxe 600. Formula Deluxe 700.
-
39404161931 Float Body Ass'y. Formula Deluxe 600.Float Body Ass'y. Formula Deluxe 600.
-
404161960 Float Body Ass'y. Formula Deluxe 700.Float Body Ass'y. Formula Deluxe 700.
-
40404161862 Washer. Formula Deluxe 600. Formula Deluxe 700.Washer. Formula Deluxe 600. Formula Deluxe 700.
-
41404161930 Plate. Formula Deluxe 600. Formula Deluxe 700.Plate. Formula Deluxe 600. Formula Deluxe 700.
-
42404161929 Clip. Formula Deluxe 600. Formula Deluxe 700.Clip. Formula Deluxe 600. Formula Deluxe 700.
-
43404161927 Lever (PTO). Formula Deluxe 600. Formula Deluxe 700.Lever (PTO). Formula Deluxe 600. Formula Deluxe 700.
-
404161938 Lever (MAG). Formula Deluxe 600. Formula Deluxe 700.Lever (MAG). Formula Deluxe 600. Formula Deluxe 700.
-
44404161923 Screw. Formula Deluxe 600. Formula Deluxe 700.Screw. Formula Deluxe 600. Formula Deluxe 700.
-
45404138300 E-Ring. Formula Deluxe 600. Formula Deluxe 700.E-Ring. Formula Deluxe 600. Formula Deluxe 700.
-
46404161922 Washer. Formula Deluxe 600. Formula Deluxe 700.Washer. Formula Deluxe 600. Formula Deluxe 700.
-
47404161921 Ring. Formula Deluxe 600. Formula Deluxe 700.Ring. Formula Deluxe 600. Formula Deluxe 700.
-
48404161920 Screw. Formula Deluxe 600. Formula Deluxe 700.Screw. Formula Deluxe 600. Formula Deluxe 700.
-
49404161919 Plate. Formula Deluxe 600. Formula Deluxe 700.Plate. Formula Deluxe 600. Formula Deluxe 700.
-
50404161918 Spring (PTO). Formula Deluxe 600. Formula Deluxe 700.Spring (PTO). Formula Deluxe 600. Formula Deluxe 700.
-
51404161917 Screw (PTO). Formula Deluxe 600. Formula Deluxe 700.Screw (PTO). Formula Deluxe 600. Formula Deluxe 700.
-
52404161916 Bracket (PTO). Formula Deluxe 600. Formula Deluxe 700.Bracket (PTO). Formula Deluxe 600. Formula Deluxe 700.
-
53404137500 Adjustment Screw (PTO). Formula Deluxe 600. Formula Deluxe 700.Adjustment Screw (PTO). Formula Deluxe 600. Formula Deluxe 700.
-
54404161913 Spring (PTO). Formula Deluxe 600. Formula Deluxe 700.Spring (PTO). Formula Deluxe 600. Formula Deluxe 700.
-
55404161912 Screw (PTO). Formula Deluxe 600. Formula Deluxe 700.Screw (PTO). Formula Deluxe 600. Formula Deluxe 700.
-
56404136100 Screw (PTO). Formula Deluxe 600. Formula Deluxe 700.Screw (PTO). Formula Deluxe 600. Formula Deluxe 700.
-
57404140000 Cap. Formula Deluxe 600. Formula Deluxe 700.Cap. Formula Deluxe 600. Formula Deluxe 700.
-
58404136900 Guide-Holder. Formula Deluxe 600. Formula Deluxe 700.Guide-Holder. Formula Deluxe 600. Formula Deluxe 700.
-
59404161908 Spring. Formula Deluxe 600. Formula Deluxe 700.Spring. Formula Deluxe 600. Formula Deluxe 700.
-
60404161907 Plunger Assy. Formula Deluxe 600. Formula Deluxe 700.Plunger Assy. Formula Deluxe 600. Formula Deluxe 700.
-
61404161906 Screw. Formula Deluxe 600. Formula Deluxe 700.Screw. Formula Deluxe 600. Formula Deluxe 700.
-
62404161904 Hose. Formula Deluxe 600. Formula Deluxe 700.Hose. Formula Deluxe 600. Formula Deluxe 700.
-
63270500095 Cap. Formula Deluxe 600.Cap. Formula Deluxe 600.
-
64404161899 Cap. Formula Deluxe 600. Formula Deluxe 700.Cap. Formula Deluxe 600. Formula Deluxe 700.
-
65404161898 Adjuster. Formula Deluxe 600. Formula Deluxe 700.Adjuster. Formula Deluxe 600. Formula Deluxe 700.
-
66404161897 Spring. Formula Deluxe 600. Formula Deluxe 700.Spring. Formula Deluxe 600. Formula Deluxe 700.
-
67404161896 Washer. Formula Deluxe 600. Formula Deluxe 700.Washer. Formula Deluxe 600. Formula Deluxe 700.
-
68404161895 Packing. Formula Deluxe 600. Formula Deluxe 700.Packing. Formula Deluxe 600. Formula Deluxe 700.
-
69404153400 Nipple. Formula Deluxe 600. Formula Deluxe 700.Nipple. Formula Deluxe 600. Formula Deluxe 700.
-
70404154900 Cap. Formula Deluxe 600. Formula Deluxe 700.Cap. Formula Deluxe 600. Formula Deluxe 700.
-
71404161900 Jet 331-1.1. Formula Deluxe 600.Jet 331-1.1. Formula Deluxe 600.
-
72404161903 Screw (MAG). Formula Deluxe 600. Formula Deluxe 700.Screw (MAG). Formula Deluxe 600. Formula Deluxe 700.
-
73404161902 Bracket (MAG). Formula Deluxe 600. Formula Deluxe 700.Bracket (MAG). Formula Deluxe 600. Formula Deluxe 700.
-
74407112000 Tool Kit. Formula Deluxe 600. Formula Deluxe 700.Tool Kit. Formula Deluxe 600. Formula Deluxe 700.
