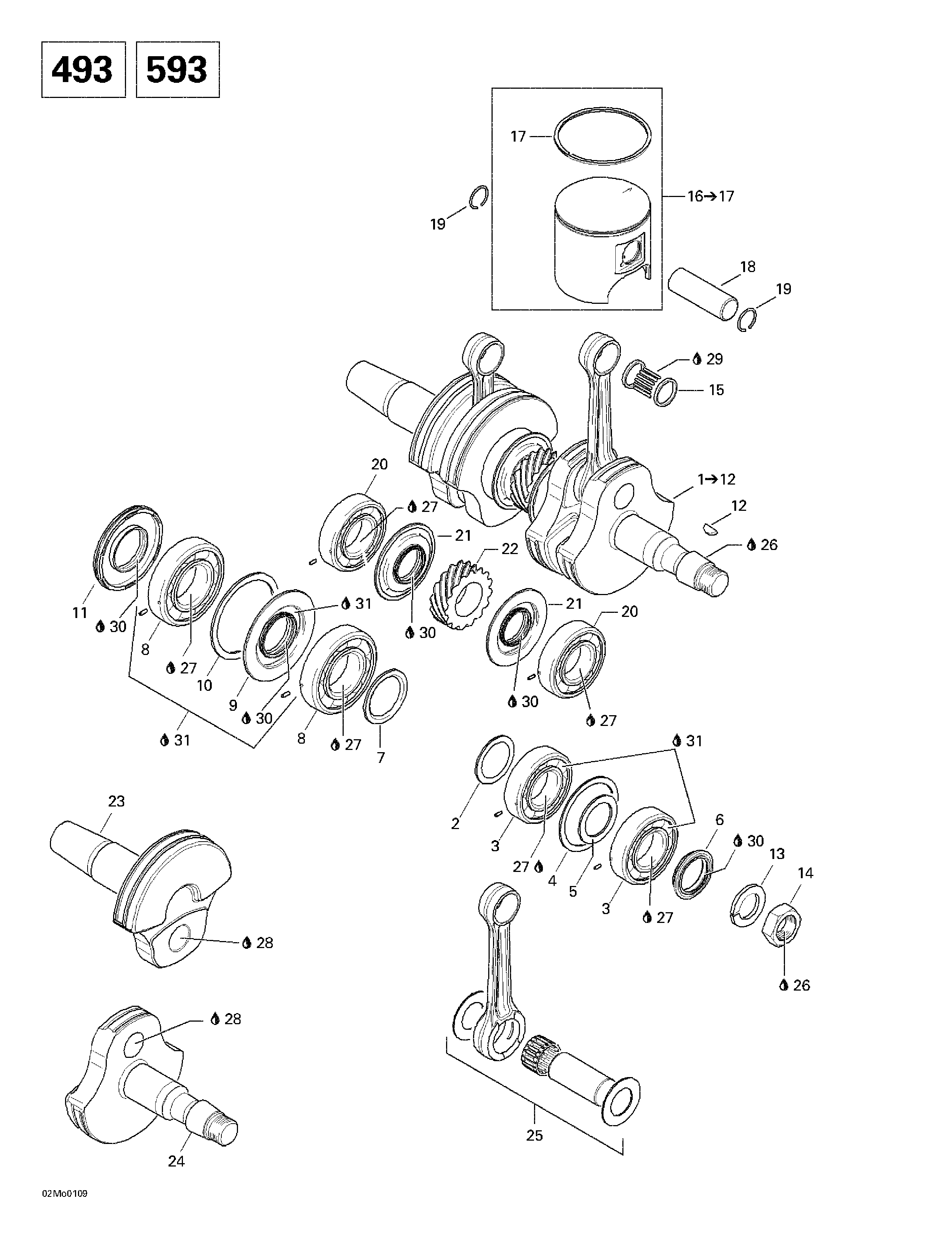

01- Crankshaft And Pistons (493, 593) для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001

№

Артикул

Название
1

420888462 Crankshaft Ass'y. Includes 1 - 12. Formula Deluxe 500.

Crankshaft Ass'y. Includes 1 - 12. Formula Deluxe 500.

0 ₽
420888750 Crankshaft Ass'y. Formula Deluxe 600.

Crankshaft Ass'y. Formula Deluxe 600.

0 ₽
2

420827445 Distance Ring. Formula Deluxe 500. Formula Deluxe 600.

Distance Ring. Formula Deluxe 500. Formula Deluxe 600.

700 ₽
3

420832590 Ball Bearing 6206. Formula Deluxe 500. Formula Deluxe 600.

Ball Bearing 6206. Formula Deluxe 500. Formula Deluxe 600.

11 730 ₽
4

420827050 Retaining Disk. Formula Deluxe 500. Formula Deluxe 600.

Retaining Disk. Formula Deluxe 500. Formula Deluxe 600.

680 ₽
5

420427684 Adjustment Washer. Formula Deluxe 500. Formula Deluxe 600.

Adjustment Washer. Formula Deluxe 500. Formula Deluxe 600.

710 ₽
6

420931790 Oil Seal. Formula Deluxe 500. Formula Deluxe 600.

Oil Seal. Formula Deluxe 500. Formula Deluxe 600.

0 ₽
7

420827760 Distance Ring. Formula Deluxe 500. Formula Deluxe 600.

Distance Ring. Formula Deluxe 500. Formula Deluxe 600.

990 ₽
8

420832575 Ball Bearing 6207. Formula Deluxe 500. Formula Deluxe 600.

Ball Bearing 6207. Formula Deluxe 500. Formula Deluxe 600.

8 480 ₽
9

420931455 Oil Seal. Formula Deluxe 500. Formula Deluxe 600.

Oil Seal. Formula Deluxe 500. Formula Deluxe 600.

5 240 ₽
10

420927710 Retaining Disk. Formula Deluxe 500. Formula Deluxe 600.

Retaining Disk. Formula Deluxe 500. Formula Deluxe 600.

2 610 ₽
11

290831952 Oil Seal. Formula Deluxe 500. Formula Deluxe 600.

Oil Seal. Formula Deluxe 500. Formula Deluxe 600.

0 ₽
12

420246015 Woodfuff Key. Formula Deluxe 500. Formula Deluxe 600.

Woodfuff Key. Formula Deluxe 500. Formula Deluxe 600.

1 040 ₽
13

420945759 Lock Washer 22 mm. Formula Deluxe 500. Formula Deluxe 600.

Lock Washer 22 mm. Formula Deluxe 500. Formula Deluxe 600.

660 ₽
14

420842230 Hex. Nut M22. Formula Deluxe 500. Formula Deluxe 600.

Hex. Nut M22. Formula Deluxe 500. Formula Deluxe 600.

0 ₽
15

420832320 Needle Bearing. Formula Deluxe 500.

Needle Bearing. Formula Deluxe 500.

10 710 ₽
420832425 Needle Bearing. Formula Deluxe 600.

Needle Bearing. Formula Deluxe 600.

0 ₽
16

420888442 Piston Ass'y (1 Ring 69.40 mm). Includes 16 - 17. Formula Deluxe 500.

Piston Ass'y (1 Ring 69.40 mm). Includes 16 - 17. Formula Deluxe 500.

0 ₽
420886687 Piston Ass'y (1 Ring 75.88 mm). Formula Deluxe 600.

Piston Ass'y (1 Ring 75.88 mm). Formula Deluxe 600.

0 ₽
420888443 OversizePistonAss'y(1Ring69.65mm). Formula Deluxe 500.

OversizePistonAss'y(1Ring69.65mm). Formula Deluxe 500.

0 ₽
420886688 OversizePistonAss'y(1Ring76.16mm). Formula Deluxe 600.

OversizePistonAss'y(1Ring76.16mm). Formula Deluxe 600.

0 ₽
17

420815043 Semi-Trapez Ring 69.50 mm. Formula Deluxe 500.

Semi-Trapez Ring 69.50 mm. Formula Deluxe 500.

4 670 ₽
420815150 Semi-Trapez Ring 76.00 mm. Formula Deluxe 600.

Semi-Trapez Ring 76.00 mm. Formula Deluxe 600.

0 ₽
420815044 Oversize Semi-Trapez Ring 69.75 mm. Formula Deluxe 500.

Oversize Semi-Trapez Ring 69.75 mm. Formula Deluxe 500.

4 290 ₽
420815151 Oversize Semi-Trapez Ring 76.25 mm. Formula Deluxe 600.

Oversize Semi-Trapez Ring 76.25 mm. Formula Deluxe 600.

0 ₽
18

420916186 Gudgeon Pin. Formula Deluxe 500.

Gudgeon Pin. Formula Deluxe 500.

9 000 ₽
420916410 Gudgeon Pin. Formula Deluxe 600.

Gudgeon Pin. Formula Deluxe 600.

0 ₽
19

420945735 Piston Circlip. Formula Deluxe 500.

Piston Circlip. Formula Deluxe 500.

1 610 ₽
420845102 Piston Circlip. Formula Deluxe 600.

Piston Circlip. Formula Deluxe 600.

420 ₽
20

420832590 Ball Bearing 6206. Formula Deluxe 500. Formula Deluxe 600.

Ball Bearing 6206. Formula Deluxe 500. Formula Deluxe 600.

11 730 ₽
21

420931940 Oil Seal. Formula Deluxe 500. Formula Deluxe 600.

Oil Seal. Formula Deluxe 500. Formula Deluxe 600.

10 710 ₽
22

420834350 Central Gear 15 Teeth. Formula Deluxe 500. Formula Deluxe 600.

Central Gear 15 Teeth. Formula Deluxe 500. Formula Deluxe 600.

8 200 ₽
23

420818664 Crankshaft (PTO side). Formula Deluxe 500. Formula Deluxe 600.

Crankshaft (PTO side). Formula Deluxe 500. Formula Deluxe 600.

0 ₽
24

420818693 Crankshaft (MAG side). Formula Deluxe 500. Formula Deluxe 600.

Crankshaft (MAG side). Formula Deluxe 500. Formula Deluxe 600.

0 ₽
25

420888463 Rod Repair Kit (MAG side). Formula Deluxe 500.

Rod Repair Kit (MAG side). Formula Deluxe 500.

25 760 ₽
420888753 Rod Repair Kit (MAG side). Formula Deluxe 600.

Rod Repair Kit (MAG side). Formula Deluxe 600.

0 ₽
420888464 Rod Repair Kit (PTO side). Formula Deluxe 500.

Rod Repair Kit (PTO side). Formula Deluxe 500.

25 760 ₽
420888754 Rod Repair Kit (PTO side). Formula Deluxe 600.

Rod Repair Kit (PTO side). Formula Deluxe 600.

0 ₽
26

293800060 Loctite 243, 10 ml. Formula Deluxe 500. Formula Deluxe 600.

Loctite 243, 10 ml. Formula Deluxe 500. Formula Deluxe 600.

2 760 ₽
27

293800023 Loctite 767, Antiseize Lubricant, 454 g. Formula Deluxe 500. Formula Deluxe 600.

Loctite 767, Antiseize Lubricant, 454 g. Formula Deluxe 500. Formula Deluxe 600.

0 ₽
28

413711400 Loctite 648, 10 ml. Formula Deluxe 500. Formula Deluxe 600.

Loctite 648, 10 ml. Formula Deluxe 500. Formula Deluxe 600.

3 420 ₽
29

413802900 Injection Oil (12 x 1 Liter). Formula Deluxe 500. Formula Deluxe 600.

Injection Oil (12 x 1 Liter). Formula Deluxe 500. Formula Deluxe 600.

1 050 ₽
30

420899271 Petamo Grease, GHY133N, 400 g. Formula Deluxe 500. Formula Deluxe 600.

Petamo Grease, GHY133N, 400 g. Formula Deluxe 500. Formula Deluxe 600.

8 190 ₽
31

293550021 Isoflex Grease, 45 g. Formula Deluxe 500. Formula Deluxe 600.

Isoflex Grease, 45 g. Formula Deluxe 500. Formula Deluxe 600.

6 860 ₽
