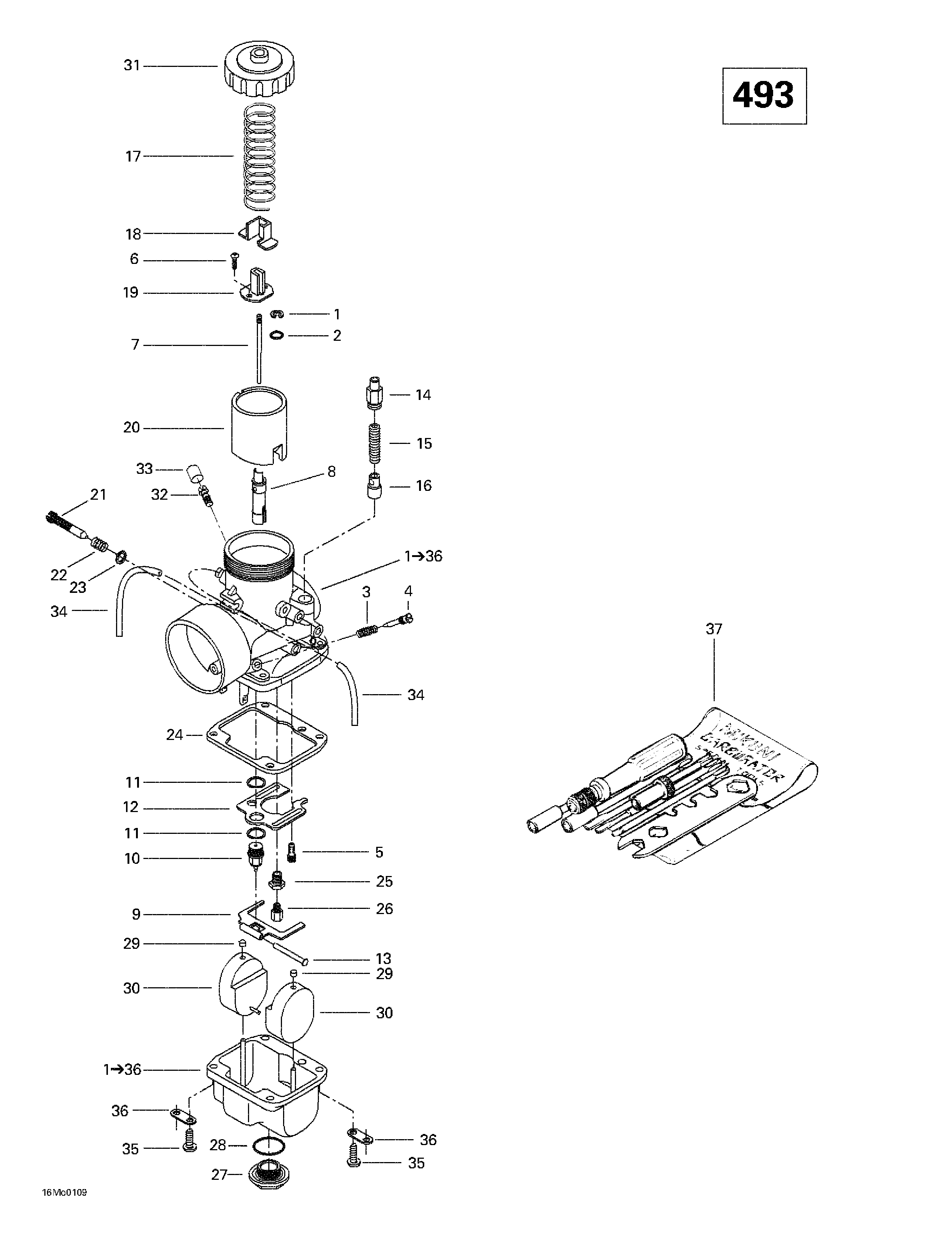

02- Carburetors (493) для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
![](/wa-data/public/shop/sheme/bombardier/ski-doo/248b0391-1d05-4420-8427-53cf227387bf.png)
-
№АртикулНазвание
-
1403138581 VM 38-429 Carburetor. Includes 1 - 36. Formula Deluxe 500.VM 38-429 Carburetor. Includes 1 - 36. Formula Deluxe 500.
-
1404152400 E-Ring. Formula Deluxe 500.E-Ring. Formula Deluxe 500.
-
2404117000 Packing. Formula Deluxe 500.Packing. Formula Deluxe 500.
-
3404139800 Spring (Air Screw). Formula Deluxe 500.Spring (Air Screw). Formula Deluxe 500.
-
4404149000 Air Screw. Formula Deluxe 500.Air Screw. Formula Deluxe 500.
-
5404109100 Pilot Jet PJ 40. Formula Deluxe 500.Pilot Jet PJ 40. Formula Deluxe 500.
-
6404121300 Screw with Washer. Formula Deluxe 500.Screw with Washer. Formula Deluxe 500.
-
7404161884 Needle J8-6DEY10. Formula Deluxe 500.Needle J8-6DEY10. Formula Deluxe 500.
-
8404161700 Needle Jet 480-P-8. Formula Deluxe 500.Needle Jet 480-P-8. Formula Deluxe 500.
-
9404161823 Float Lever. Formula Deluxe 500.Float Lever. Formula Deluxe 500.
-
10404147400 Needle Valve 1.5. Formula Deluxe 500.Needle Valve 1.5. Formula Deluxe 500.
-
11404101600 Seat Washer. Formula Deluxe 500.Seat Washer. Formula Deluxe 500.
-
13404103300 Lever Pin. Formula Deluxe 500.Lever Pin. Formula Deluxe 500.
-
14404161100 Guide Holder. Formula Deluxe 500.Guide Holder. Formula Deluxe 500.
-
15404161844 Spring. Formula Deluxe 500.Spring. Formula Deluxe 500.
-
16404161845 Plunger Ass'y. Formula Deluxe 500.Plunger Ass'y. Formula Deluxe 500.
-
17404154800 Spring. Formula Deluxe 500.Spring. Formula Deluxe 500.
-
18404122100 Cover. Formula Deluxe 500.Cover. Formula Deluxe 500.
-
19404161948 Connector. Formula Deluxe 500.Connector. Formula Deluxe 500.
-
20404131300 Piston Valve CA 2.5. Formula Deluxe 500.Piston Valve CA 2.5. Formula Deluxe 500.
-
21404102800 Throttle Adjustment Screw. Formula Deluxe 500.Throttle Adjustment Screw. Formula Deluxe 500.
-
22404101700 Spring (Adjustment Screw). Formula Deluxe 500.Spring (Adjustment Screw). Formula Deluxe 500.
-
23270500018 Washer. Formula Deluxe 500.Washer. Formula Deluxe 500.
-
24404104700 Gasket. Formula Deluxe 500.Gasket. Formula Deluxe 500.
-
25404105500 Screw Guide. Formula Deluxe 500.Screw Guide. Formula Deluxe 500.
-
26404100500 Main Jet MJ 280. Formula Deluxe 500.Main Jet MJ 280. Formula Deluxe 500.
-
27404112900 Drain Plug Screw. Formula Deluxe 500.Drain Plug Screw. Formula Deluxe 500.
-
28404112800 Washer. Formula Deluxe 500.Washer. Formula Deluxe 500.
-
29404105800 Cap. Formula Deluxe 500.Cap. Formula Deluxe 500.
-
30404105400 Float. Formula Deluxe 500.Float. Formula Deluxe 500.
-
31404105100 Cover. Formula Deluxe 500.Cover. Formula Deluxe 500.
-
32404153400 Nipple. Formula Deluxe 500.Nipple. Formula Deluxe 500.
-
33404154900 Cap. Formula Deluxe 500.Cap. Formula Deluxe 500.
-
34404161880 Hose. Formula Deluxe 500.Hose. Formula Deluxe 500.
-
35404102000 Screw with Lock Washer. Formula Deluxe 500.Screw with Lock Washer. Formula Deluxe 500.
-
36404103000 Plate. Formula Deluxe 500.Plate. Formula Deluxe 500.
-
37404112000 Tool Kit. Formula Deluxe 500.Tool Kit. Formula Deluxe 500.
