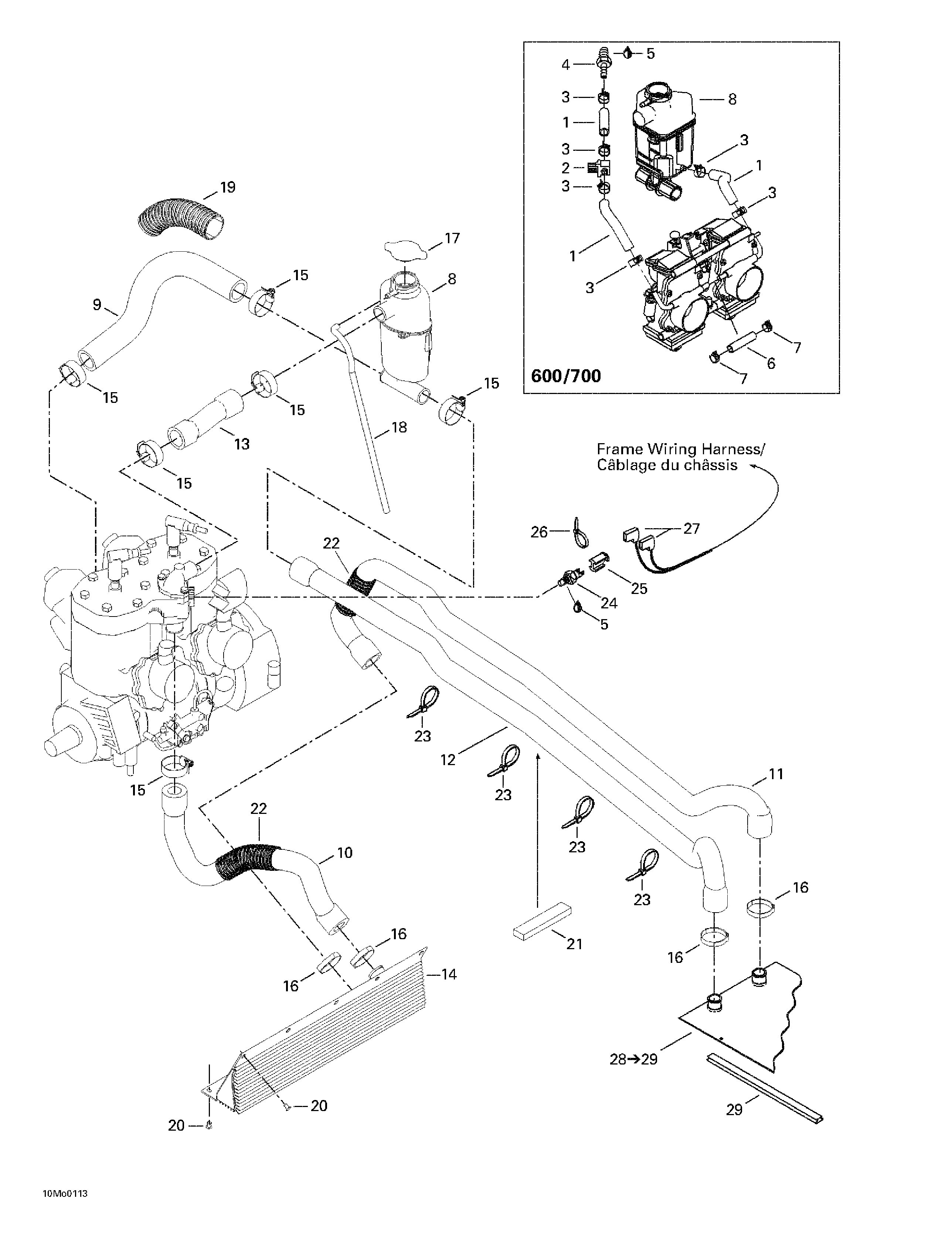

01- Cooling System для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1509000093 Hose 8 mm. Grand Touring 600. Grand Touring 700.Hose 8 mm. Grand Touring 600. Grand Touring 700.
-
2512059324 Valve 5/16''. Grand Touring 600. Grand Touring 700.Valve 5/16''. Grand Touring 600. Grand Touring 700.
-
3414655700 Spring Clamp. Grand Touring 600. Grand Touring 700.Spring Clamp. Grand Touring 600. Grand Touring 700.
-
4293710082 Straight Fitting. Grand Touring 600. Grand Touring 700.Straight Fitting. Grand Touring 600. Grand Touring 700.
-
5293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
6404161956 Hose. Grand Touring 600. Grand Touring 700.Hose. Grand Touring 600. Grand Touring 700.
-
7404161957 Clip. Grand Touring 600. Grand Touring 700.Clip. Grand Touring 600. Grand Touring 700.
-
8509000114 Tank-Coolant. Grand Touring 500.Tank-Coolant. Grand Touring 500.
-
509000115 Tank-Coolant. Grand Touring 600. Grand Touring 700.Tank-Coolant. Grand Touring 600. Grand Touring 700.
-
9509000001 Engine Inlet HoseEngine Inlet Hose
-
10509000046 Engine Outlet HoseEngine Outlet Hose
-
11509000003 Radiator Inlet HoseRadiator Inlet Hose
-
12509000004 Radiator Outlet HoseRadiator Outlet Hose
-
13509000112 Deviation HoseDeviation Hose
-
14517297100 Front RadiatorFront Radiator
-
15408800400 Tridon Gear ClampTridon Gear Clamp
-
16509000045 Oetiker Gear ClampOetiker Gear Clamp
-
17414684700 Pressure CapPressure Cap
-
18415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
19415084700 Protective ShieldProtective Shield
-
20390402200 Pop Rivet 3/16Pop Rivet 3/16
-
21293200003 SealSeal
-
22409902200 Tubing 25 mm. Grand Touring 700.Tubing 25 mm. Grand Touring 700.
-
23293750008 Tie Rap 350 mmTie Rap 350 mm
-
24512047000 Temperature Sensor. Grand Touring 500. Grand Touring 600.Temperature Sensor. Grand Touring 500. Grand Touring 600.
-
414728700 Temperature Sensor. Grand Touring 700.Temperature Sensor. Grand Touring 700.
-
25515175297 Connector PlugConnector Plug
-
26293750002 Tie Rap 130 mmTie Rap 130 mm
-
27409010300 Female TerminalFemale Terminal
-
28517296310 Rear Radiator. Includes 28 - 29.Rear Radiator. Includes 28 - 29.
-
29518321656 Radiator ProtectorRadiator Protector
