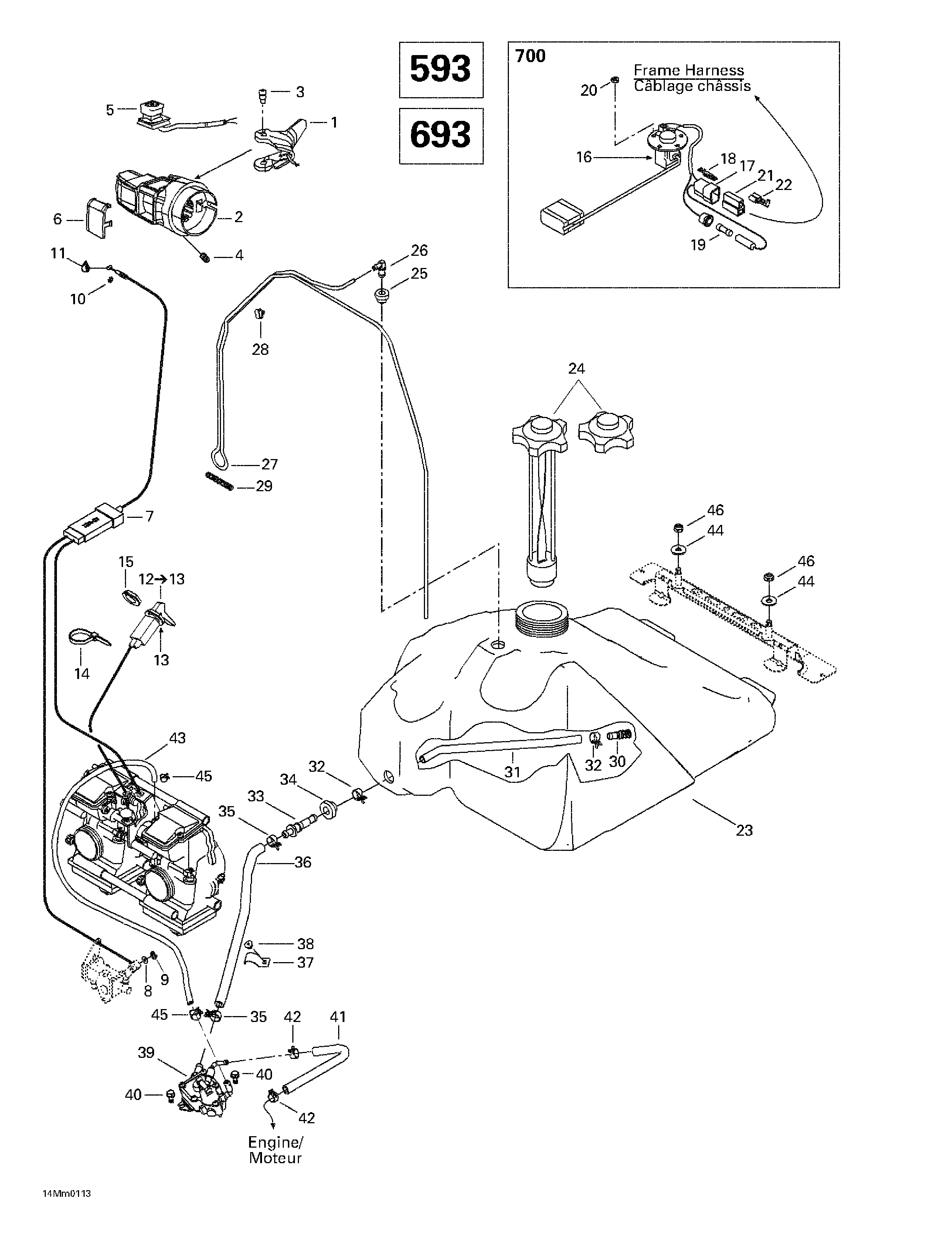

02- Fuel System для BRP Ski-Doo Grand Touring 500/600/700 - 2001

№

Артикул

Название
1

512059107 Handle Ass'y 28 mm. Grand Touring 600. Grand Touring 700.

Handle Ass'y 28 mm. Grand Touring 600. Grand Touring 700.

0 ₽
2

512059109 Throttle Handle Housing. Grand Touring 600. Grand Touring 700.

Throttle Handle Housing. Grand Touring 600. Grand Touring 700.

0 ₽
3

732601143 Screw. Grand Touring 600. Grand Touring 700.

Screw. Grand Touring 600. Grand Touring 700.

1 340 ₽
4

414440800 Set Screw M8 x 10. Grand Touring 600. Grand Touring 700.

Set Screw M8 x 10. Grand Touring 600. Grand Touring 700.

1 330 ₽
5

515175410 Kill Switch. Grand Touring 600. Grand Touring 700.

Kill Switch. Grand Touring 600. Grand Touring 700.

0 ₽
6

572100901 Switch Cover. Grand Touring 600. Grand Touring 700.

Switch Cover. Grand Touring 600. Grand Touring 700.

4 830 ₽
7

512059388 Throttle Cable. Grand Touring 600. Grand Touring 700.

Throttle Cable. Grand Touring 600. Grand Touring 700.

8 860 ₽
8

414753300 Washer. Grand Touring 600. Grand Touring 700.

Washer. Grand Touring 600. Grand Touring 700.

110 ₽
9

414753500 Circlip. Grand Touring 600. Grand Touring 700.

Circlip. Grand Touring 600. Grand Touring 700.

260 ₽
10

414274500 Circlip. Grand Touring 600. Grand Touring 700.

Circlip. Grand Touring 600. Grand Touring 700.

320 ₽
11

293550004 Dielectric Grease, 150 g. Grand Touring 600. Grand Touring 700.

Dielectric Grease, 150 g. Grand Touring 600. Grand Touring 700.

5 900 ₽
12

512059110 Choke Cable. Includes 12 - 13. Grand Touring 600. Grand Touring 700.

Choke Cable. Includes 12 - 13. Grand Touring 600. Grand Touring 700.

7 360 ₽
13

394103300 Lock Washer. Grand Touring 600. Grand Touring 700.

Lock Washer. Grand Touring 600. Grand Touring 700.

160 ₽
14

515175220 Tie Rap 94 mm. Grand Touring 600. Grand Touring 700.

Tie Rap 94 mm. Grand Touring 600. Grand Touring 700.

100 ₽
15

512059094 Plastic Nut. Grand Touring 600. Grand Touring 700.

Plastic Nut. Grand Touring 600. Grand Touring 700.

510 ₽
16

515175170 Fuel Sensor Ass'y. Includes 16 - 19. Grand Touring 700.

Fuel Sensor Ass'y. Includes 16 - 19. Grand Touring 700.

0 ₽
17

409204500 Male Terminal Housing (2 Circuits). Grand Touring 700.

Male Terminal Housing (2 Circuits). Grand Touring 700.

420 ₽
18

409210000 Male Terminal. Grand Touring 700.

Male Terminal. Grand Touring 700.

660 ₽
19

410112400 Fuse 0.25 Amp. Grand Touring 700.

Fuse 0.25 Amp. Grand Touring 700.

930 ₽
20

232551414 Elastic Stop Nut M5. Grand Touring 700.

Elastic Stop Nut M5. Grand Touring 700.

320 ₽
21

409204600 Female Terminal Housing (2 Circuits). Grand Touring 700.

Female Terminal Housing (2 Circuits). Grand Touring 700.

500 ₽
22

561503100 Female Terminal. Grand Touring 700.

Female Terminal. Grand Touring 700.

520 ₽
23

513032987 Fuel Tank. Grand Touring 600.

Fuel Tank. Grand Touring 600.

14 770 ₽
513032988 Fuel Tank. Grand Touring 700.

Fuel Tank. Grand Touring 700.

14 070 ₽
24

513032901 Fuel Tank Cap. Grand Touring 600.

Fuel Tank Cap. Grand Touring 600.

0 ₽
572039600 Fuel Tank Cap. Grand Touring 700.

Fuel Tank Cap. Grand Touring 700.

2 250 ₽
25

513032908 Grommet. Grand Touring 600. Grand Touring 700.

Grommet. Grand Touring 600. Grand Touring 700.

2 890 ₽
26

414814100 Male Connector. Grand Touring 600. Grand Touring 700.

Male Connector. Grand Touring 600. Grand Touring 700.

800 ₽
27

415080100 Primer Line. Grand Touring 600. Grand Touring 700.

Primer Line. Grand Touring 600. Grand Touring 700.

250 ₽
28

513032923 Tube Clamp. Grand Touring 600. Grand Touring 700.

Tube Clamp. Grand Touring 600. Grand Touring 700.

250 ₽
29

414818200 Spring. Grand Touring 600. Grand Touring 700.

Spring. Grand Touring 600. Grand Touring 700.

260 ₽
30

414872100 Fuel Filter. Grand Touring 600. Grand Touring 700.

Fuel Filter. Grand Touring 600. Grand Touring 700.

7 250 ₽
31

415005700 Hose. Grand Touring 600. Grand Touring 700.

Hose. Grand Touring 600. Grand Touring 700.

870 ₽
32

513033010 Spring Clamp. Grand Touring 600. Grand Touring 700.

Spring Clamp. Grand Touring 600. Grand Touring 700.

2 890 ₽
33

414872700 Male Connector. Grand Touring 600. Grand Touring 700.

Male Connector. Grand Touring 600. Grand Touring 700.

630 ₽
34

570273900 Grommet. Grand Touring 600. Grand Touring 700.

Grommet. Grand Touring 600. Grand Touring 700.

1 130 ₽
35

513032979 Spring Clamp. Grand Touring 600. Grand Touring 700.

Spring Clamp. Grand Touring 600. Grand Touring 700.

500 ₽
36

513032903 Formed Hose. Grand Touring 600. Grand Touring 700.

Formed Hose. Grand Touring 600. Grand Touring 700.

2 680 ₽
37

415018200 Clip. Grand Touring 600. Grand Touring 700.

Clip. Grand Touring 600. Grand Touring 700.

160 ₽
38

390406500 Pop Rivet 3/16. Grand Touring 600. Grand Touring 700.

Pop Rivet 3/16. Grand Touring 600. Grand Touring 700.

320 ₽
39

403901804 Fuel Pump. Grand Touring 600. Grand Touring 700.

Fuel Pump. Grand Touring 600. Grand Touring 700.

0 ₽
40

210361280 Hex. Screw M6 x 12. Grand Touring 600. Grand Touring 700.

Hex. Screw M6 x 12. Grand Touring 600. Grand Touring 700.

330 ₽
41

415079800 Rubber Hose. Grand Touring 600. Grand Touring 700.

Rubber Hose. Grand Touring 600. Grand Touring 700.

0 ₽
42

414415200 Spring Clamp. Grand Touring 600. Grand Touring 700.

Spring Clamp. Grand Touring 600. Grand Touring 700.

320 ₽
43

513032986 Formed Tube. Grand Touring 600. Grand Touring 700.

Formed Tube. Grand Touring 600. Grand Touring 700.

860 ₽
44

234082410 Flat Washer 8 mm. Grand Touring 600. Grand Touring 700.

Flat Washer 8 mm. Grand Touring 600. Grand Touring 700.

490 ₽
45

414420700 Spring Clamp. Grand Touring 600. Grand Touring 700.

Spring Clamp. Grand Touring 600. Grand Touring 700.

270 ₽
46

232581414 Elastic Stop Nut M8. Grand Touring 600. Grand Touring 700.

Elastic Stop Nut M8. Grand Touring 600. Grand Touring 700.

210 ₽
