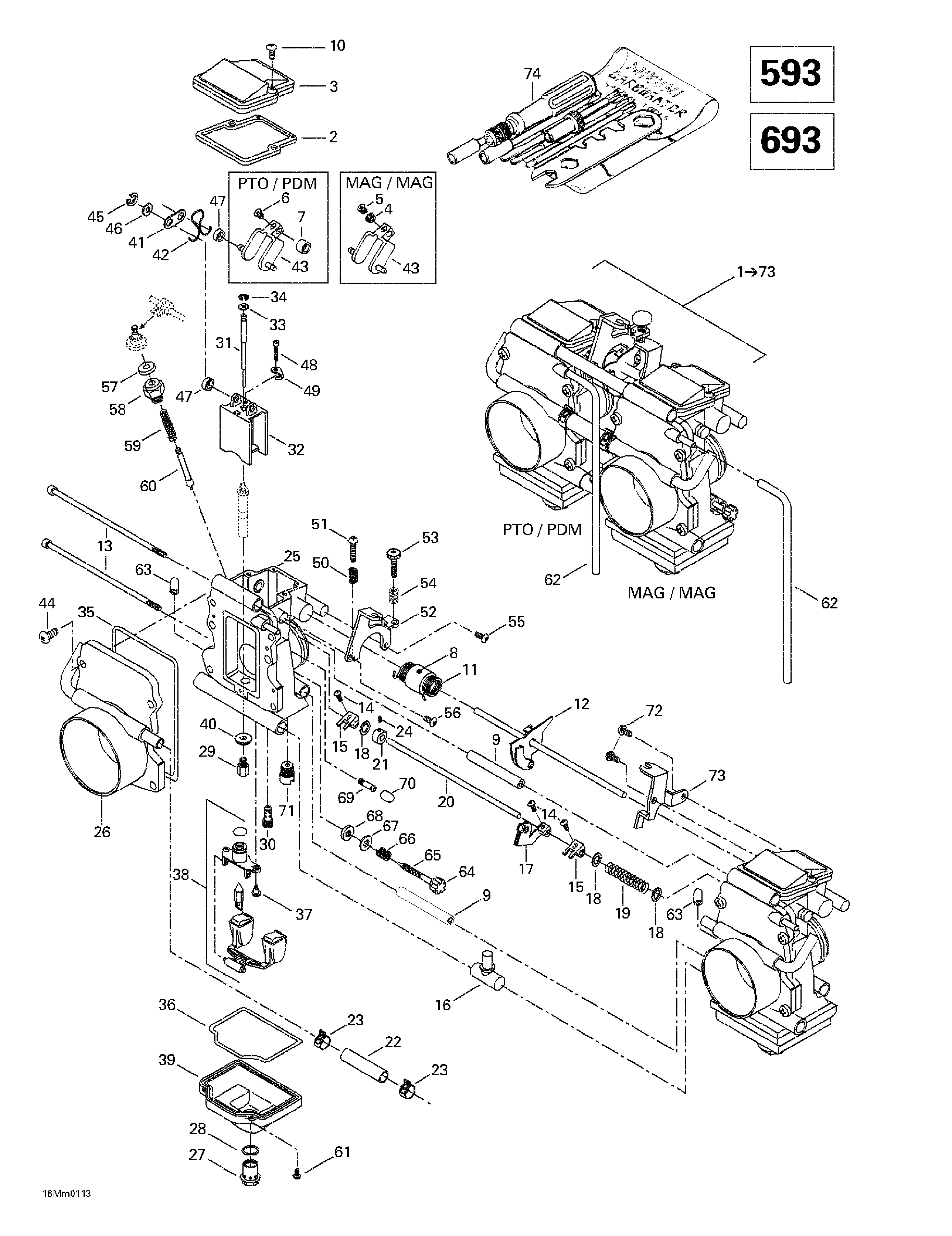

02- Carburetors (593 для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1403138670 Carburetor Kit TM-40-B112. Includes 1 - 73. Grand Touring 600.Carburetor Kit TM-40-B112. Includes 1 - 73. Grand Touring 600.
-
403138671 Carburetor Kit TM-40-B115. Grand Touring 700.Carburetor Kit TM-40-B115. Grand Touring 700.
-
2404161940 Gasket. Grand Touring 600. Grand Touring 700.Gasket. Grand Touring 600. Grand Touring 700.
-
3404161939 Cover. Grand Touring 600. Grand Touring 700.Cover. Grand Touring 600. Grand Touring 700.
-
4404161937 Ring. Grand Touring 600. Grand Touring 700.Ring. Grand Touring 600. Grand Touring 700.
-
5404161936 Screw. Grand Touring 600. Grand Touring 700.Screw. Grand Touring 600. Grand Touring 700.
-
6404161928 Screw. Grand Touring 600. Grand Touring 700.Screw. Grand Touring 600. Grand Touring 700.
-
7404161926 Ring. Grand Touring 600. Grand Touring 700.Ring. Grand Touring 600. Grand Touring 700.
-
8404161925 Ring. Grand Touring 600. Grand Touring 700.Ring. Grand Touring 600. Grand Touring 700.
-
9404161924 Ring. Grand Touring 600. Grand Touring 700.Ring. Grand Touring 600. Grand Touring 700.
-
10404161923 Screw. Grand Touring 600. Grand Touring 700.Screw. Grand Touring 600. Grand Touring 700.
-
11404161915 Spring. Grand Touring 600. Grand Touring 700.Spring. Grand Touring 600. Grand Touring 700.
-
12404161914 Throttle Shaft. Grand Touring 600. Grand Touring 700.Throttle Shaft. Grand Touring 600. Grand Touring 700.
-
13404161911 Screw. Grand Touring 600. Grand Touring 700.Screw. Grand Touring 600. Grand Touring 700.
-
14404161910 Screw. Grand Touring 600. Grand Touring 700.Screw. Grand Touring 600. Grand Touring 700.
-
15404161909 Lever. Grand Touring 600. Grand Touring 700.Lever. Grand Touring 600. Grand Touring 700.
-
16404161905 Nipple. Grand Touring 600. Grand Touring 700.Nipple. Grand Touring 600. Grand Touring 700.
-
17404161901 Starter Lever. Grand Touring 600. Grand Touring 700.Starter Lever. Grand Touring 600. Grand Touring 700.
-
18404161894 Packing. Grand Touring 600. Grand Touring 700.Packing. Grand Touring 600. Grand Touring 700.
-
19404103500 Spring. Grand Touring 600. Grand Touring 700.Spring. Grand Touring 600. Grand Touring 700.
-
20404161952 Shaft. Grand Touring 600. Grand Touring 700.Shaft. Grand Touring 600. Grand Touring 700.
-
21404161951 Ring. Grand Touring 600. Grand Touring 700.Ring. Grand Touring 600. Grand Touring 700.
-
22404161956 Hose. Grand Touring 600. Grand Touring 700.Hose. Grand Touring 600. Grand Touring 700.
-
23404161957 Clip. Grand Touring 600. Grand Touring 700.Clip. Grand Touring 600. Grand Touring 700.
-
24404161949 Screw. Grand Touring 600. Grand Touring 700.Screw. Grand Touring 600. Grand Touring 700.
-
26404161959 Funnel (PTO). Grand Touring 600. Grand Touring 700.Funnel (PTO). Grand Touring 600. Grand Touring 700.
-
404161958 Funnel (MAG). Grand Touring 600. Grand Touring 700.Funnel (MAG). Grand Touring 600. Grand Touring 700.
-
27404161955 Drain Screw. Grand Touring 600. Grand Touring 700.Drain Screw. Grand Touring 600. Grand Touring 700.
-
28404161945 O-Ring. Grand Touring 600. Grand Touring 700.O-Ring. Grand Touring 600. Grand Touring 700.
-
29404108200 Main Jet 500. Grand Touring 600.Main Jet 500. Grand Touring 600.
-
404115100 Main Jet 520. Grand Touring 700.Main Jet 520. Grand Touring 700.
-
30404108600 Pilot Jet 20. Grand Touring 600.Pilot Jet 20. Grand Touring 600.
-
404161944 Pilot Jet 17.5. Grand Touring 700.Pilot Jet 17.5. Grand Touring 700.
-
31404161954 Needle J8-9hfy02-53. Grand Touring 600.Needle J8-9hfy02-53. Grand Touring 600.
-
404161953 Needle J8-9zly3-58. Grand Touring 700.Needle J8-9zly3-58. Grand Touring 700.
-
32404161950 Valve Piston 2.0. Grand Touring 600. Grand Touring 700.Valve Piston 2.0. Grand Touring 600. Grand Touring 700.
-
33404137600 Packing. Grand Touring 600. Grand Touring 700.Packing. Grand Touring 600. Grand Touring 700.
-
34404152200 E''-Ring`Grand Touring 600. Grand Touring 700.``E''-Ring`Grand Touring 600. Grand Touring 700.``
-
35404161935 O-Ring. Grand Touring 600. Grand Touring 700.O-Ring. Grand Touring 600. Grand Touring 700.
-
36404161961 O-Ring. Grand Touring 700.O-Ring. Grand Touring 700.
-
404161934 O-Ring. Grand Touring 600.O-Ring. Grand Touring 600.
-
37404161933 Screw. Grand Touring 600. Grand Touring 700.Screw. Grand Touring 600. Grand Touring 700.
-
38404161932 Float. Grand Touring 600. Grand Touring 700.Float. Grand Touring 600. Grand Touring 700.
-
39404161931 Float Body Ass'y. Grand Touring 600.Float Body Ass'y. Grand Touring 600.
-
404161960 Float Body Ass'y. Grand Touring 700.Float Body Ass'y. Grand Touring 700.
-
40404161862 Washer. Grand Touring 600. Grand Touring 700.Washer. Grand Touring 600. Grand Touring 700.
-
41404161930 Plate. Grand Touring 600. Grand Touring 700.Plate. Grand Touring 600. Grand Touring 700.
-
42404161929 Clip. Grand Touring 600. Grand Touring 700.Clip. Grand Touring 600. Grand Touring 700.
-
43404161927 Lever (PTO). Grand Touring 600. Grand Touring 700.Lever (PTO). Grand Touring 600. Grand Touring 700.
-
404161938 Lever (MAG). Grand Touring 600. Grand Touring 700.Lever (MAG). Grand Touring 600. Grand Touring 700.
-
44404161923 Screw. Grand Touring 600. Grand Touring 700.Screw. Grand Touring 600. Grand Touring 700.
-
45404138300 E Ring. Grand Touring 600. Grand Touring 700.E Ring. Grand Touring 600. Grand Touring 700.
-
46404161922 Washer. Grand Touring 600. Grand Touring 700.Washer. Grand Touring 600. Grand Touring 700.
-
47404161921 Ring. Grand Touring 600. Grand Touring 700.Ring. Grand Touring 600. Grand Touring 700.
-
48404161920 Screw. Grand Touring 600. Grand Touring 700.Screw. Grand Touring 600. Grand Touring 700.
-
49404161919 Plate. Grand Touring 600. Grand Touring 700.Plate. Grand Touring 600. Grand Touring 700.
-
50404161918 Spring TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.Spring TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.
-
51404161917 Screw TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.Screw TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.
-
52404161916 Bracket TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.Bracket TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.
-
53404137500 Adjustment Screw TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.Adjustment Screw TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.
-
54404161913 Spring TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.Spring TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.
-
55404161912 Screw TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.Screw TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.
-
56404136100 Screw TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.Screw TM 40-98 (PTO). Grand Touring 600. Grand Touring 700.
-
57404140000 Cap. Grand Touring 600. Grand Touring 700.Cap. Grand Touring 600. Grand Touring 700.
-
58404136900 Guide-Holder. Grand Touring 600. Grand Touring 700.Guide-Holder. Grand Touring 600. Grand Touring 700.
-
59404161908 Spring. Grand Touring 600. Grand Touring 700.Spring. Grand Touring 600. Grand Touring 700.
-
60404161907 Plunger Assy. Grand Touring 600. Grand Touring 700.Plunger Assy. Grand Touring 600. Grand Touring 700.
-
61404161906 Screw. Grand Touring 600. Grand Touring 700.Screw. Grand Touring 600. Grand Touring 700.
-
62404161904 Hose. Grand Touring 600. Grand Touring 700.Hose. Grand Touring 600. Grand Touring 700.
-
63270500095 Cap. Grand Touring 600.Cap. Grand Touring 600.
-
64404161899 Cap. Grand Touring 600. Grand Touring 700.Cap. Grand Touring 600. Grand Touring 700.
-
65404161898 Adjuster. Grand Touring 600. Grand Touring 700.Adjuster. Grand Touring 600. Grand Touring 700.
-
66404161897 Spring. Grand Touring 600. Grand Touring 700.Spring. Grand Touring 600. Grand Touring 700.
-
67404161896 Washer. Grand Touring 600. Grand Touring 700.Washer. Grand Touring 600. Grand Touring 700.
-
68404161895 Packing. Grand Touring 600. Grand Touring 700.Packing. Grand Touring 600. Grand Touring 700.
-
69404153400 Nipple. Grand Touring 600. Grand Touring 700.Nipple. Grand Touring 600. Grand Touring 700.
-
70404154900 Cap. Grand Touring 600. Grand Touring 700.Cap. Grand Touring 600. Grand Touring 700.
-
71404161900 Jet 331-1.1. Grand Touring 600.Jet 331-1.1. Grand Touring 600.
-
72404161903 Screw TM 40-99 (MAG). Grand Touring 600. Grand Touring 700.Screw TM 40-99 (MAG). Grand Touring 600. Grand Touring 700.
-
73404161902 Bracket TM 40-99 (MAG). Grand Touring 600. Grand Touring 700.Bracket TM 40-99 (MAG). Grand Touring 600. Grand Touring 700.
-
74407112000 Tool Kit. Grand Touring 600. Grand Touring 700.Tool Kit. Grand Touring 600. Grand Touring 700.
