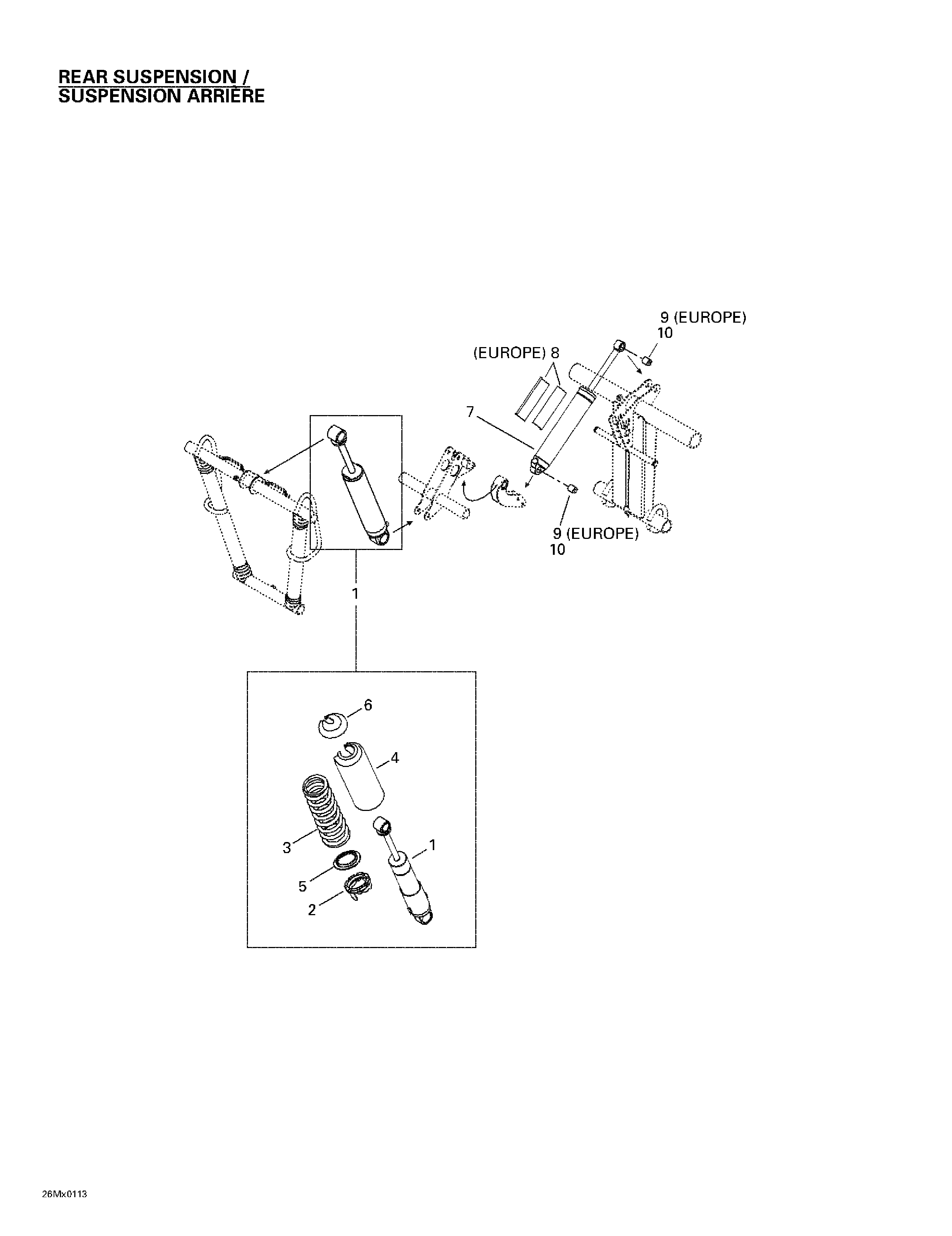

08- Rear Shocks 2 для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1503189554 Center ShockCenter Shock
-
2503183700 CamCam
-
3503189659 SpringSpring
-
4503188930 ProtectorProtector
-
5503187500 Spring GuideSpring Guide
-
6503140600 Spring StopperSpring Stopper
-
7503189426 Rear ShockRear Shock
-
7860306200 HPG Shock Kit (Europe). Includes 7 - 9.HPG Shock Kit (Europe). Includes 7 - 9.
-
8516000182 HPG Decal (Europe)HPG Decal (Europe)
-
9414936000 Cushion (Europe)Cushion (Europe)
-
10414936000 CushionCushion
