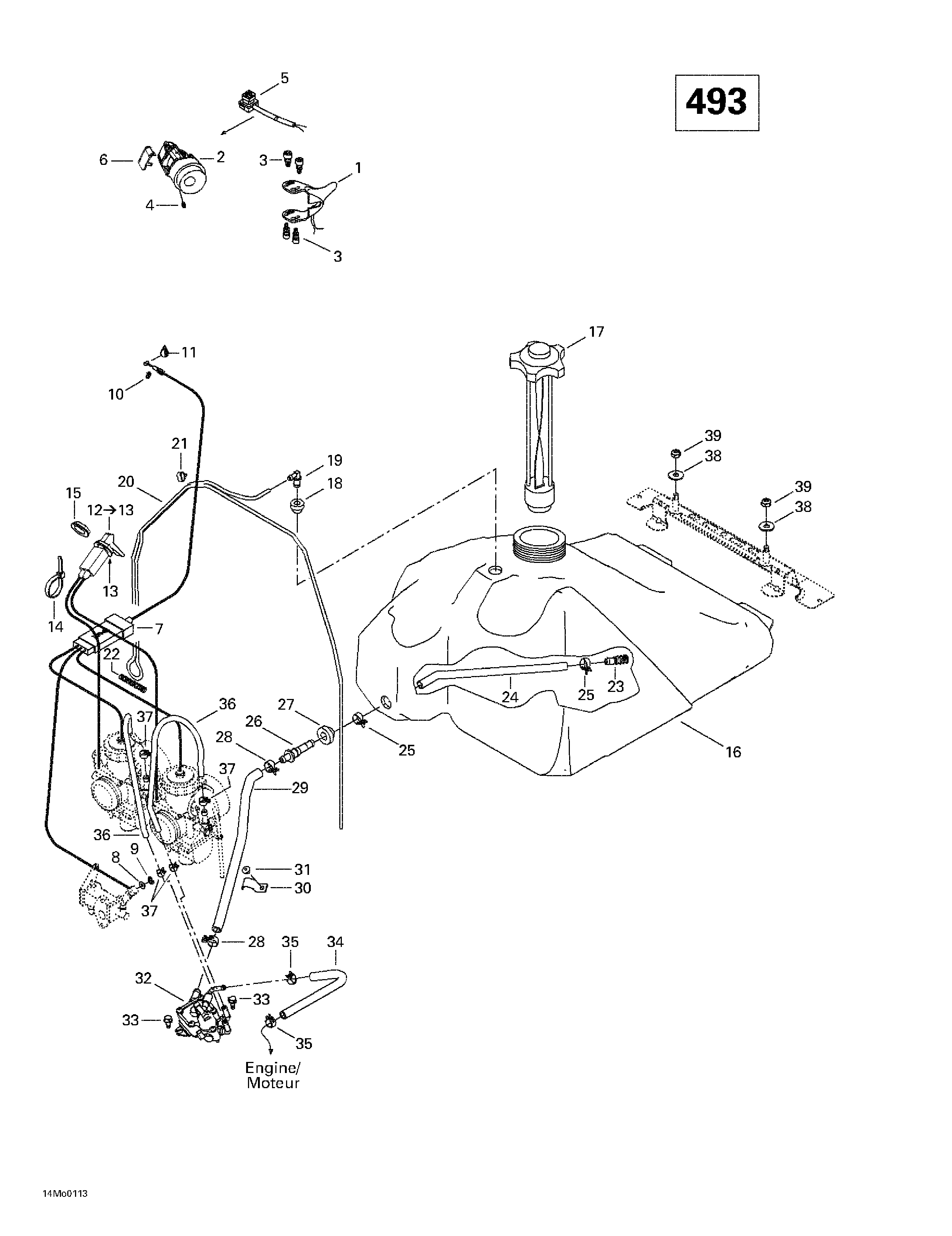

02- Fuel System (493) для BRP Ski-Doo Grand Touring 500/600/700 - 2001

№

Артикул

Название
1

512059348 Handle Ass'y 38 mm. Grand Touring 500.

Handle Ass'y 38 mm. Grand Touring 500.

29 400 ₽
2

512059243 Throttle Handle Housing. Grand Touring 500.

Throttle Handle Housing. Grand Touring 500.

2 520 ₽
3

732601143 Screw. Grand Touring 500.

Screw. Grand Touring 500.

1 340 ₽
4

414440800 Set Screw M8 x 10. Grand Touring 500.

Set Screw M8 x 10. Grand Touring 500.

1 330 ₽
5

515175410 Kill Switch. Grand Touring 500.

Kill Switch. Grand Touring 500.

0 ₽
6

572100901 Switch Cover. Grand Touring 500.

Switch Cover. Grand Touring 500.

4 830 ₽
7

512059111 Throttle Cable. Grand Touring 500.

Throttle Cable. Grand Touring 500.

6 880 ₽
8

414753300 Washer. Grand Touring 500.

Washer. Grand Touring 500.

110 ₽
9

414753500 Circlip. Grand Touring 500.

Circlip. Grand Touring 500.

260 ₽
10

414274500 Circlip. Grand Touring 500.

Circlip. Grand Touring 500.

320 ₽
11

293550004 Dielectric Grease, 150 g. Grand Touring 500.

Dielectric Grease, 150 g. Grand Touring 500.

5 900 ₽
12

512059203 Choke Cable. Includes 12 - 13. Grand Touring 500.

Choke Cable. Includes 12 - 13. Grand Touring 500.

5 920 ₽
13

394103300 Lock Washer. Grand Touring 500.

Lock Washer. Grand Touring 500.

160 ₽
14

515175220 Tie Rap 94 mm. Grand Touring 500.

Tie Rap 94 mm. Grand Touring 500.

100 ₽
15

512059094 Plastic Nut. Grand Touring 500.

Plastic Nut. Grand Touring 500.

510 ₽
16

513032987 Fuel Tank. Grand Touring 500.

Fuel Tank. Grand Touring 500.

14 770 ₽
17

513032901 Fuel Tank Cap. Grand Touring 500.

Fuel Tank Cap. Grand Touring 500.

0 ₽
18

513032908 Grommet. Grand Touring 500.

Grommet. Grand Touring 500.

2 890 ₽
19

414814100 Male Connector. Grand Touring 500.

Male Connector. Grand Touring 500.

800 ₽
20

415080100 Primer Line. Grand Touring 500.

Primer Line. Grand Touring 500.

250 ₽
21

513032923 Tube Clamp. Grand Touring 500.

Tube Clamp. Grand Touring 500.

250 ₽
22

414818200 Spring. Grand Touring 500.

Spring. Grand Touring 500.

260 ₽
23

414872100 Fuel Filter. Grand Touring 500.

Fuel Filter. Grand Touring 500.

7 250 ₽
24

415005700 Hose. Grand Touring 500.

Hose. Grand Touring 500.

870 ₽
25

513033010 Spring Clamp. Grand Touring 500.

Spring Clamp. Grand Touring 500.

2 890 ₽
26

414872700 Male Connector. Grand Touring 500.

Male Connector. Grand Touring 500.

630 ₽
27

570273900 Grommet. Grand Touring 500.

Grommet. Grand Touring 500.

1 130 ₽
28

513032979 Spring Clamp. Grand Touring 500.

Spring Clamp. Grand Touring 500.

500 ₽
29

513032903 Formed Hose. Grand Touring 500.

Formed Hose. Grand Touring 500.

2 680 ₽
30

415018200 Clip. Grand Touring 500.

Clip. Grand Touring 500.

160 ₽
31

390406500 Pop Rivet 3/16. Grand Touring 500.

Pop Rivet 3/16. Grand Touring 500.

320 ₽
32

403901803 Fuel Pump. Grand Touring 500.

Fuel Pump. Grand Touring 500.

0 ₽
33

210361280 Hex. Screw M6 x 12. Grand Touring 500.

Hex. Screw M6 x 12. Grand Touring 500.

330 ₽
34

415079800 Rubber Hose. Grand Touring 500.

Rubber Hose. Grand Touring 500.

0 ₽
35

414415200 Spring Clamp. Grand Touring 500.

Spring Clamp. Grand Touring 500.

320 ₽
36

415117800 Formed Tube. Grand Touring 500.

Formed Tube. Grand Touring 500.

1 400 ₽
37

414420700 Spring Clamp. Grand Touring 500.

Spring Clamp. Grand Touring 500.

270 ₽
38

234082410 Flat Washer 8 mm. Grand Touring 500.

Flat Washer 8 mm. Grand Touring 500.

490 ₽
39

232581414 Elastic Stop Nut M8. Grand Touring 500.

Elastic Stop Nut M8. Grand Touring 500.

210 ₽
