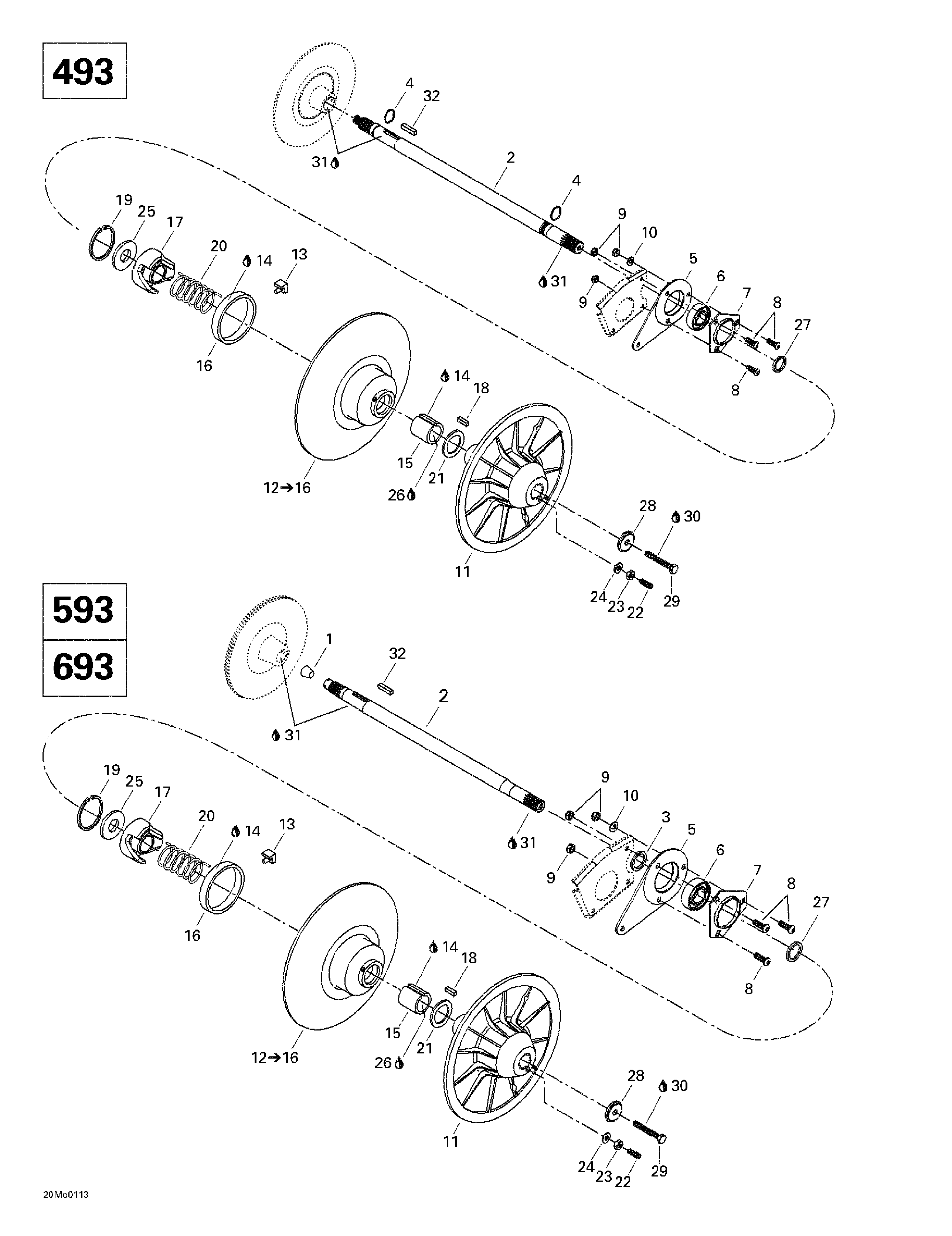

05- Driven Pulley для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1414784800 Cork. Grand Touring 600. Grand Touring 700.Cork. Grand Touring 600. Grand Touring 700.
-
2504151858 Countershaft. Grand Touring 500.Countershaft. Grand Touring 500.
-
501026300 Countershaft. Grand Touring 600. Grand Touring 700.Countershaft. Grand Touring 600. Grand Touring 700.
-
3504149100 Spacer. Grand Touring 600. Grand Touring 700.Spacer. Grand Touring 600. Grand Touring 700.
-
4371910000 Circlip. Grand Touring 500.Circlip. Grand Touring 500.
-
5080044200 Casting SpacerCasting Spacer
-
6504152008 Ball Bearing. Grand Touring 500.Ball Bearing. Grand Touring 500.
-
504152007 Ball Bearing. Grand Touring 600. Grand Touring 700.Ball Bearing. Grand Touring 600. Grand Touring 700.
-
7501025000 FlangeFlange
-
8205482546 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
9232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
10234081410 Flat Washer 8 mmFlat Washer 8 mm
-
11417126477 Fixed FlangeFixed Flange
-
12417126486 Sliding Flange Ass'y. Includes 12 - 16.Sliding Flange Ass'y. Includes 12 - 16.
-
13414918000 Cam Slider ShoeCam Slider Shoe
-
14413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
15415011200 BushingBushing
-
16414876600 Bushing GarlockBushing Garlock
-
17417126333 Cam 44 Deg. Grand Touring 500.Cam 44 Deg. Grand Touring 500.
-
417126337 Cam 47 Deg. Grand Touring 600.Cam 47 Deg. Grand Touring 600.
-
417126343 Cam 50 Deg. Grand Touring 700.Cam 50 Deg. Grand Touring 700.
-
18414820800 KeyKey
-
19371903100 CirclipCirclip
-
20414558900 Release Spring (Beige). Grand Touring 500. Grand Touring 600.Release Spring (Beige). Grand Touring 500. Grand Touring 600.
-
415092800 Release Spring (Yellow). Grand Touring 700.Release Spring (Yellow). Grand Touring 700.
-
21504141900 Thrust WasherThrust Washer
-
22206263044 Socket Set Screw M6 x 30Socket Set Screw M6 x 30
-
23232061414 Nut M6Nut M6
-
24420245370 WasherWasher
-
25504141800 WasherWasher
-
26413701000 Loctite 767, Antiseize Lubricant, 12 ozLoctite 767, Antiseize Lubricant, 12 oz
-
27504149100 SpacerSpacer
-
28517302322 WasherWasher
-
29207087544 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
32507021300 KeyKey
