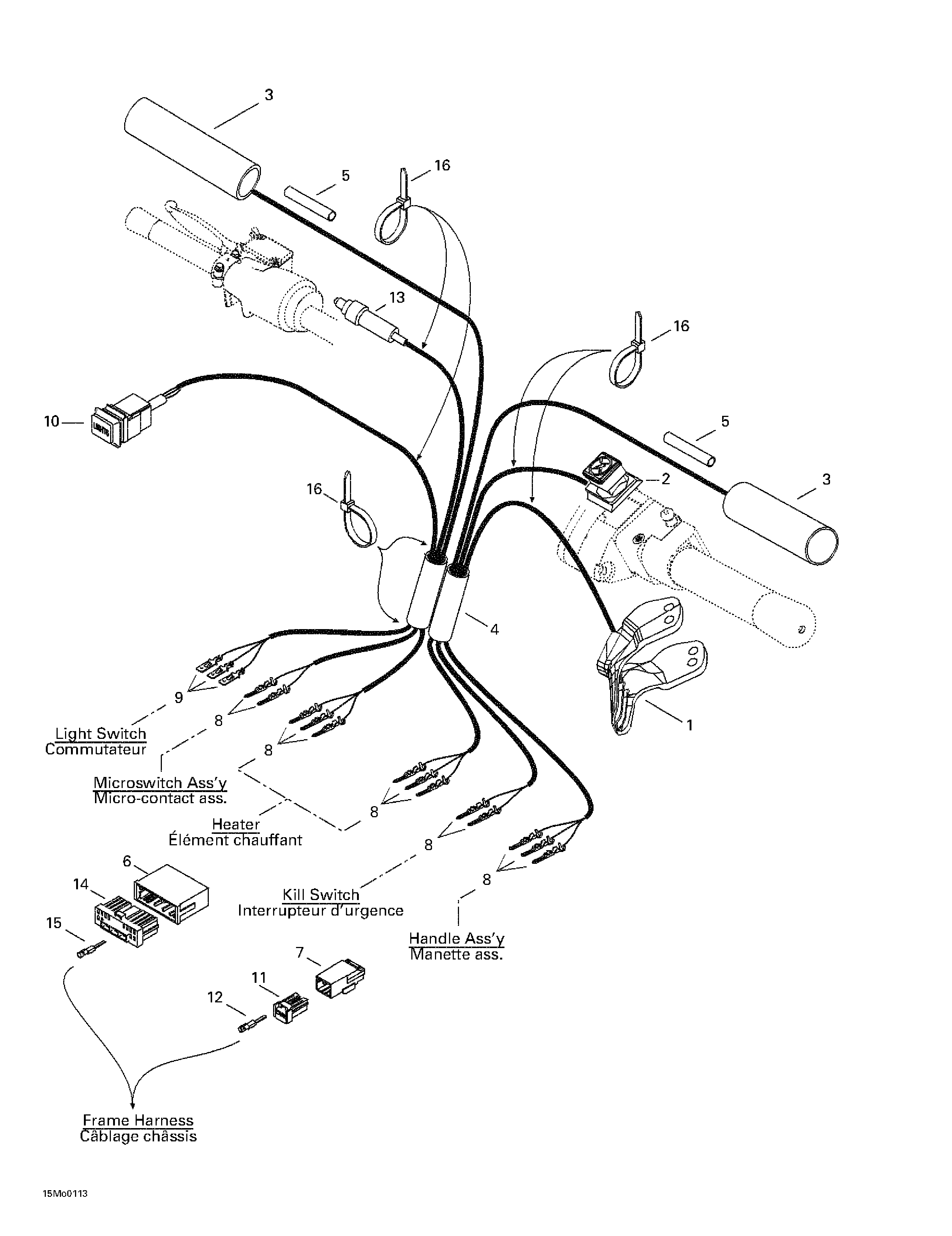

07- Steering System для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1512059348 Throttle Handle Ass'y 40 mm. Grand Touring 500.Throttle Handle Ass'y 40 mm. Grand Touring 500.
-
512059107 Throttle Handle Ass'y 28 mm. Grand Touring 600. Grand Touring 700.Throttle Handle Ass'y 28 mm. Grand Touring 600. Grand Touring 700.
-
2515175410 Kill SwitchKill Switch
-
3515175389 Heating ElementHeating Element
-
4515175314 Low Temperature Tubing 5/8''Low Temperature Tubing 5/8''
-
5515175332 Low Temperature Tubing 1/4''Low Temperature Tubing 1/4''
-
6515175352 Male Terminal Housing (13 circuits)Male Terminal Housing (13 circuits)
-
7515175494 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
8515175232 Male TerminalMale Terminal
-
9515175273 Male TerminalMale Terminal
-
10515175390 Light SwitchLight Switch
-
11515175495 Femelle Terminal Housing (3 circuits)Femelle Terminal Housing (3 circuits)
-
12515175231 Female Terminal (16-20 Gauge)Female Terminal (16-20 Gauge)
-
13507032283 Microswitch Ass'yMicroswitch Ass'y
-
14515175350 Femelle Terminal Housing (13 circuits)Femelle Terminal Housing (13 circuits)
-
15515175231 Female Terminal (16-20 Gauge)Female Terminal (16-20 Gauge)
-
515175282 Female Terminal (14-20 Gauge)Female Terminal (14-20 Gauge)
-
16414115200 Tie Rap 180 mmTie Rap 180 mm
