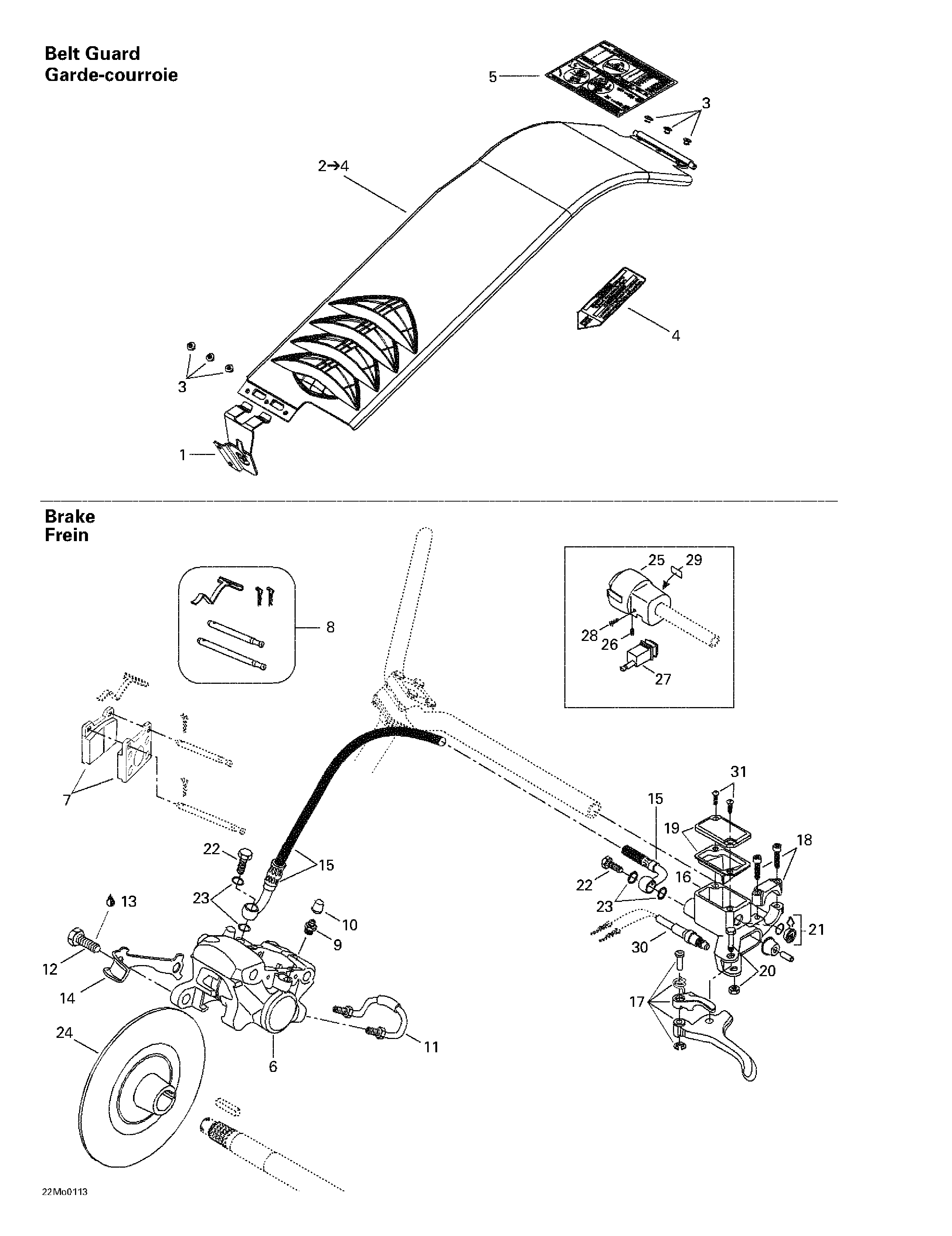

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1417300001 BracketBracket
-
2417300002 Belt Guard Ass'y. Includes 2 - 4.Belt Guard Ass'y. Includes 2 - 4.
-
3390402200 Pop Rivet 3/16Pop Rivet 3/16
-
4516000132 Warning LabelWarning Label
-
5516000954 Suspension Adjustment DecalSuspension Adjustment Decal
-
6415034500 Caliper. Includes 6 - 11.Caliper. Includes 6 - 11.
-
7415053600 Brake Lining KitBrake Lining Kit
-
8414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
9414989800 Screw-BleederScrew-Bleeder
-
10414989700 BootBoot
-
11414989900 Rigid TubingRigid Tubing
-
12207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14507029900 Locking TabLocking Tab
-
15507032237 HoseHose
-
16507032294 Master Cylinder. Includes 16 - 21.Master Cylinder. Includes 16 - 21.
-
17415075300 Lever Ass'yLever Ass'y
-
18415029800 Clamp Ass'yClamp Ass'y
-
19415029900 CapCap
-
20415030000 Pin Ass'yPin Ass'y
-
21414990600 WindowWindow
-
22414920500 Banjo BoltBanjo Bolt
-
23414920600 WasherWasher
-
24507032203 Brake Disk. Grand Touring 500.Brake Disk. Grand Touring 500.
-
507031300 Brake Disk. Grand Touring 600. Grand Touring 700.Brake Disk. Grand Touring 600. Grand Touring 700.
-
25515175307 Brake HousingBrake Housing
-
26414440800 Set ScrewSet Screw
-
27515175390 SwitchSwitch
-
28250000022 Phillips Screw #4-24 x 1/2''Phillips Screw #4-24 x 1/2''
-
29415025500 Switch DecalSwitch Decal
-
30507032283 MicroswitchMicroswitch
-
31216141260 Screw M4 x 12Screw M4 x 12
