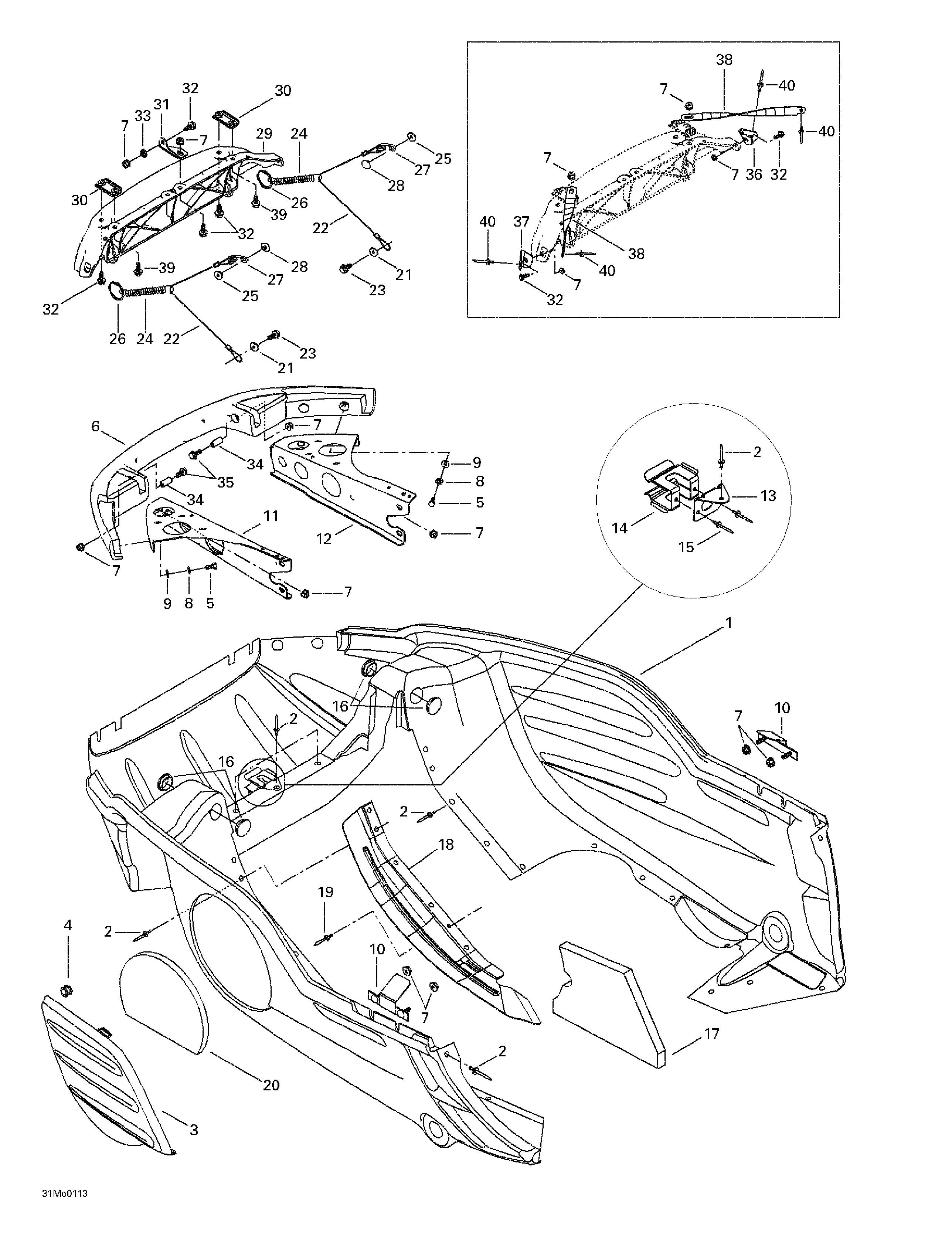

09- Bottom Pan для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1502006590 Bottom Pan (Full Moon) B-211Bottom Pan (Full Moon) B-211
-
502006589 Bottom Pan (Black) B-160Bottom Pan (Black) B-160
-
2293150068 Pop Rivet 3/16 (Full Moon) B-211Pop Rivet 3/16 (Full Moon) B-211
-
390906800 Pop Rivet 3/16 (Black) B-160Pop Rivet 3/16 (Black) B-160
-
3502006591 Bottom Pan Door (Full Moon) B-211Bottom Pan Door (Full Moon) B-211
-
502006506 Bottom Pan Door (Black) B-160Bottom Pan Door (Black) B-160
-
4414036300 GrommetGrommet
-
5207161444 Hex. Screw M6 x 14Hex. Screw M6 x 14
-
6502006592 Bumper (Full Moon) B-211Bumper (Full Moon) B-211
-
502006536 Bumper (Black) B-160Bumper (Black) B-160
-
7233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
8234161471 Lock Washer 6 mmLock Washer 6 mm
-
9224061121 Flat WasherFlat Washer
-
10502006500 BracketBracket
-
11502006597 L.H. SupportL.H. Support
-
12502006596 R.H. SupportR.H. Support
-
13502006599 Belt SupportBelt Support
-
14517281905 BracketBracket
-
15390402400 Pop Rivet 3/16Pop Rivet 3/16
-
16414916600 Nylon CapNylon Cap
-
17502006558 Bottom FoamBottom Foam
-
18502006593 Bottom Pan Protector. Grand Touring 700.Bottom Pan Protector. Grand Touring 700.
-
19390402200 Pop Rivet. Grand Touring 700.Pop Rivet. Grand Touring 700.
-
20502006559 Bottom Pan Door FoamBottom Pan Door Foam
-
21391301600 Flat WasherFlat Washer
-
22415093900 Retainer CableRetainer Cable
-
24415043300 SpringSpring
-
25517124300 WasherWasher
-
26415058300 RingRing
-
27517262800 BracketBracket
-
28390409600 Pop Rivet 3/16Pop Rivet 3/16
-
29517302004 HingeHinge
-
30517302176 Hinge Side PlateHinge Side Plate
-
31517302045 Hinge Center PlateHinge Center Plate
-
32207661684 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
33250200000 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
34517302179 BushingBushing
-
35207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
36517302254 R.H. Corner SupportR.H. Corner Support
-
37517302255 L.H. Corner SupportL.H. Corner Support
-
38517302256 Hood ClampHood Clamp
-
39207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
40390406500 Pop RivetPop Rivet
