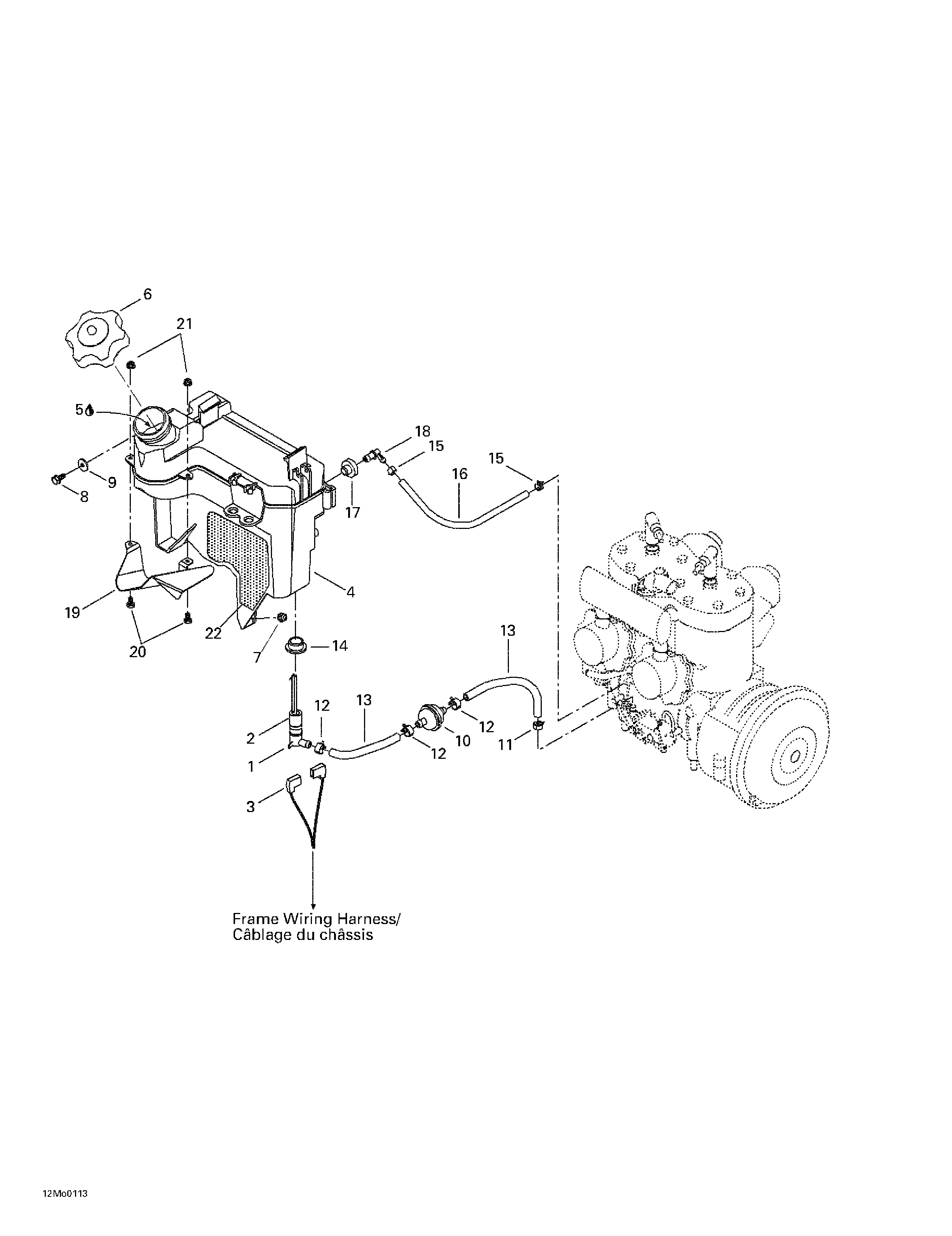

02- Oil Tank для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1414681800 Level SwitchLevel Switch
-
2414681900 FloatFloat
-
3409010300 Female TerminalFemale Terminal
-
4519000037 Oil TankOil Tank
-
5413803100 Blizzard Oil (12 x 500 ml)Blizzard Oil (12 x 500 ml)
-
413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liter)Injection Oil (3 x 4 Liter)
-
413803200 Injection Oil (205 Liter)Injection Oil (205 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liter)Synthetic Injection Oil (3 x 4 Liter)
-
413710700 Synthetic Injection Oil (205 Liter)Synthetic Injection Oil (205 Liter)
-
413710500 Synthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-SSynthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-S
-
6519000017 CapCap
-
7233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
8210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
9250200000 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
10414536500 FilterFilter
-
11414420700 Spring ClampSpring Clamp
-
12414415200 Spring ClampSpring Clamp
-
13415080700 LineLine
-
14570023000 GrommetGrommet
-
15414554800 Spring ClampSpring Clamp
-
16415080200 LineLine
-
17570135100 GrommetGrommet
-
18414580700 Elbow Male ConnectorElbow Male Connector
-
19519000018 DeflectorDeflector
-
20207151244 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
21233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
22519000023 Reflective SheetReflective Sheet
