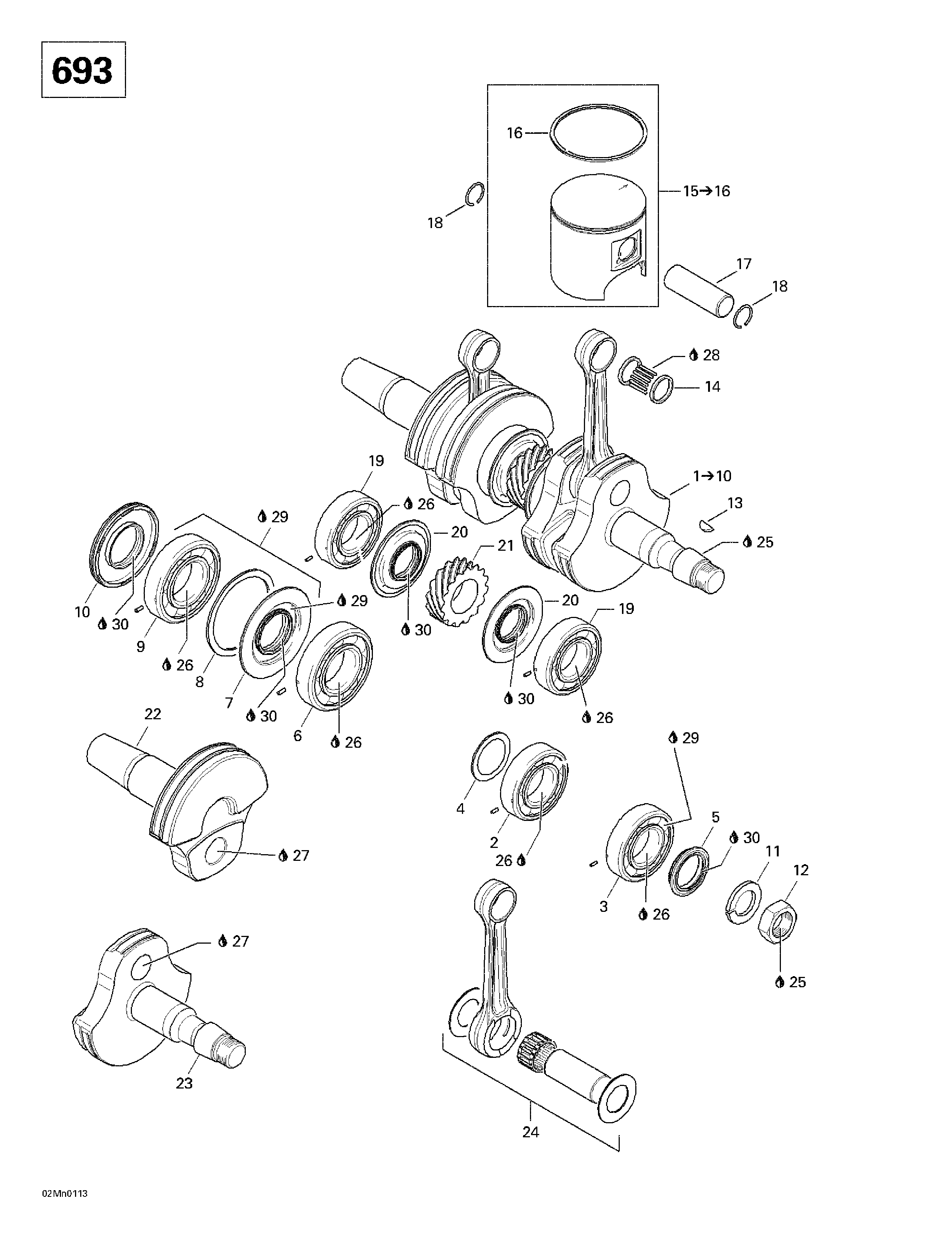

01- Crankshaft And Pistons (693) для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1420888285 Crankshaft Ass'y. Includes 1 - 10. Grand Touring 700.Crankshaft Ass'y. Includes 1 - 10. Grand Touring 700.
-
2420832635 Ball Bearing 6207. Grand Touring 700.Ball Bearing 6207. Grand Touring 700.
-
3420832575 Ball Bearing 6207. Grand Touring 700.Ball Bearing 6207. Grand Touring 700.
-
4420427502 Adjustment Washer. Grand Touring 700.Adjustment Washer. Grand Touring 700.
-
5420931790 Oil Seal. Grand Touring 700.Oil Seal. Grand Touring 700.
-
6420832600 Ball Bearing 6208. Grand Touring 700.Ball Bearing 6208. Grand Touring 700.
-
7420931910 Oil Seal. Grand Touring 700.Oil Seal. Grand Touring 700.
-
8420926190 Washer. Grand Touring 700.Washer. Grand Touring 700.
-
9420832600 Ball Bearing 6208. Grand Touring 700.Ball Bearing 6208. Grand Touring 700.
-
10420931280 Oil Seal. Grand Touring 700.Oil Seal. Grand Touring 700.
-
11420945759 Lock Washer 22 mm. Grand Touring 700.Lock Washer 22 mm. Grand Touring 700.
-
12420842230 Nut M22. Grand Touring 700.Nut M22. Grand Touring 700.
-
13420246015 Woodfuff Key. Grand Touring 700.Woodfuff Key. Grand Touring 700.
-
14420832425 Needle Bearing. Grand Touring 700.Needle Bearing. Grand Touring 700.
-
15420888296 Piston Ass'y (1 Ring 77.88 mm). Includes 15 - 16. Grand Touring 700.Piston Ass'y (1 Ring 77.88 mm). Includes 15 - 16. Grand Touring 700.
-
16420815225 Semi-Trapez Ring. Grand Touring 700.Semi-Trapez Ring. Grand Touring 700.
-
17420916370 Gudgeon Pin. Grand Touring 700.Gudgeon Pin. Grand Touring 700.
-
18420845102 Piston Circlip. Grand Touring 700.Piston Circlip. Grand Touring 700.
-
19420832575 Ball Bearing 6207. Grand Touring 700.Ball Bearing 6207. Grand Touring 700.
-
20420931455 Oil Seal. Grand Touring 700.Oil Seal. Grand Touring 700.
-
21420834355 Central Gear 15 Teeth. Grand Touring 700.Central Gear 15 Teeth. Grand Touring 700.
-
22420818708 Crankshaft (PTO side). Grand Touring 700.Crankshaft (PTO side). Grand Touring 700.
-
23420818738 Crankshaft (MAG side). Grand Touring 700.Crankshaft (MAG side). Grand Touring 700.
-
24420888288 Rod Repair Kit (MAG side). Grand Touring 700.Rod Repair Kit (MAG side). Grand Touring 700.
-
420888289 Rod Repair Kit (MAG side). Grand Touring 700.Rod Repair Kit (MAG side). Grand Touring 700.
-
25293800060 Loctite 243, 10 ml. Grand Touring 700.Loctite 243, 10 ml. Grand Touring 700.
-
26293800023 Loctite 767, Antiseize Lubricant, 454 g. Grand Touring 700.Loctite 767, Antiseize Lubricant, 454 g. Grand Touring 700.
-
27413711400 Loctite 648, 10 ml. Grand Touring 700.Loctite 648, 10 ml. Grand Touring 700.
-
28413802900 Injection Oil (12 x 1 Liter). Grand Touring 700.Injection Oil (12 x 1 Liter). Grand Touring 700.
-
29293550021 Isoflex Grease, 45 g. Grand Touring 700.Isoflex Grease, 45 g. Grand Touring 700.
-
30420899271 Petamo Grease, GHY133N, 400 g. Grand Touring 700.Petamo Grease, GHY133N, 400 g. Grand Touring 700.
