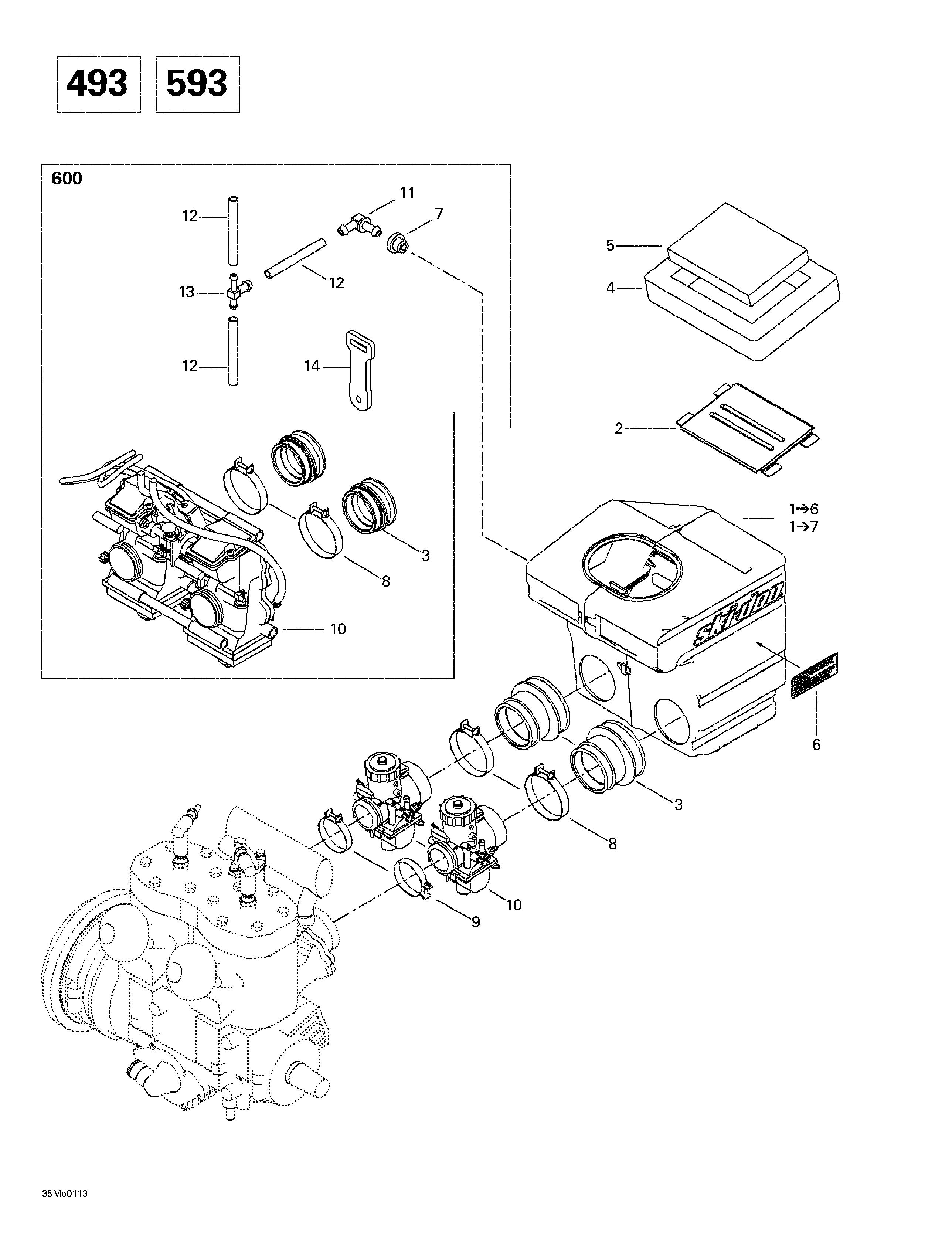

02- Air Intake System (493, 593) для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1508000153 Air Intake Ass'y. Includes 1 - 6. Grand Touring 500.Air Intake Ass'y. Includes 1 - 6. Grand Touring 500.
-
1508000139 Air Intake Ass'y. Includes 1 - 7. Grand Touring 600.Air Intake Ass'y. Includes 1 - 7. Grand Touring 600.
-
2508000004 Intake Grill. Grand Touring 500. Grand Touring 600.Intake Grill. Grand Touring 500. Grand Touring 600.
-
3508000073 Air Intake Adaptor (38 mm). Grand Touring 500.Air Intake Adaptor (38 mm). Grand Touring 500.
-
508000092 Air Intake Adaptor (40 mm). Grand Touring 600.Air Intake Adaptor (40 mm). Grand Touring 600.
-
4508000099 Lower Foam. Grand Touring 500. Grand Touring 600.Lower Foam. Grand Touring 500. Grand Touring 600.
-
5508000154 Air Filter. Grand Touring 500. Grand Touring 600.Air Filter. Grand Touring 500. Grand Touring 600.
-
6516000130 Caution Label. Grand Touring 500. Grand Touring 600.Caution Label. Grand Touring 500. Grand Touring 600.
-
7513032908 Grommet. Grand Touring 600.Grommet. Grand Touring 600.
-
8508000046 Clamp. Grand Touring 500.Clamp. Grand Touring 500.
-
508000162 Clamp. Grand Touring 600.Clamp. Grand Touring 600.
-
9512059005 Clamp. Grand Touring 500.Clamp. Grand Touring 500.
-
512059305 Clamp. Grand Touring 600.Clamp. Grand Touring 600.
-
10403138581 VM 38-429 Carburetor. Grand Touring 500.VM 38-429 Carburetor. Grand Touring 500.
-
403138670 Carburetor Kit TM 40 B-112. Grand Touring 600.Carburetor Kit TM 40 B-112. Grand Touring 600.
-
11414580600 Elbow Male Connector. Grand Touring 600.Elbow Male Connector. Grand Touring 600.
-
12415080200 Line. Grand Touring 600.Line. Grand Touring 600.
-
13572045500 T'' Connector`Grand Touring 600.``T'' Connector`Grand Touring 600.``
-
14512059372 Carburetor Latch. Grand Touring 500. Grand Touring 600.Carburetor Latch. Grand Touring 500. Grand Touring 600.
