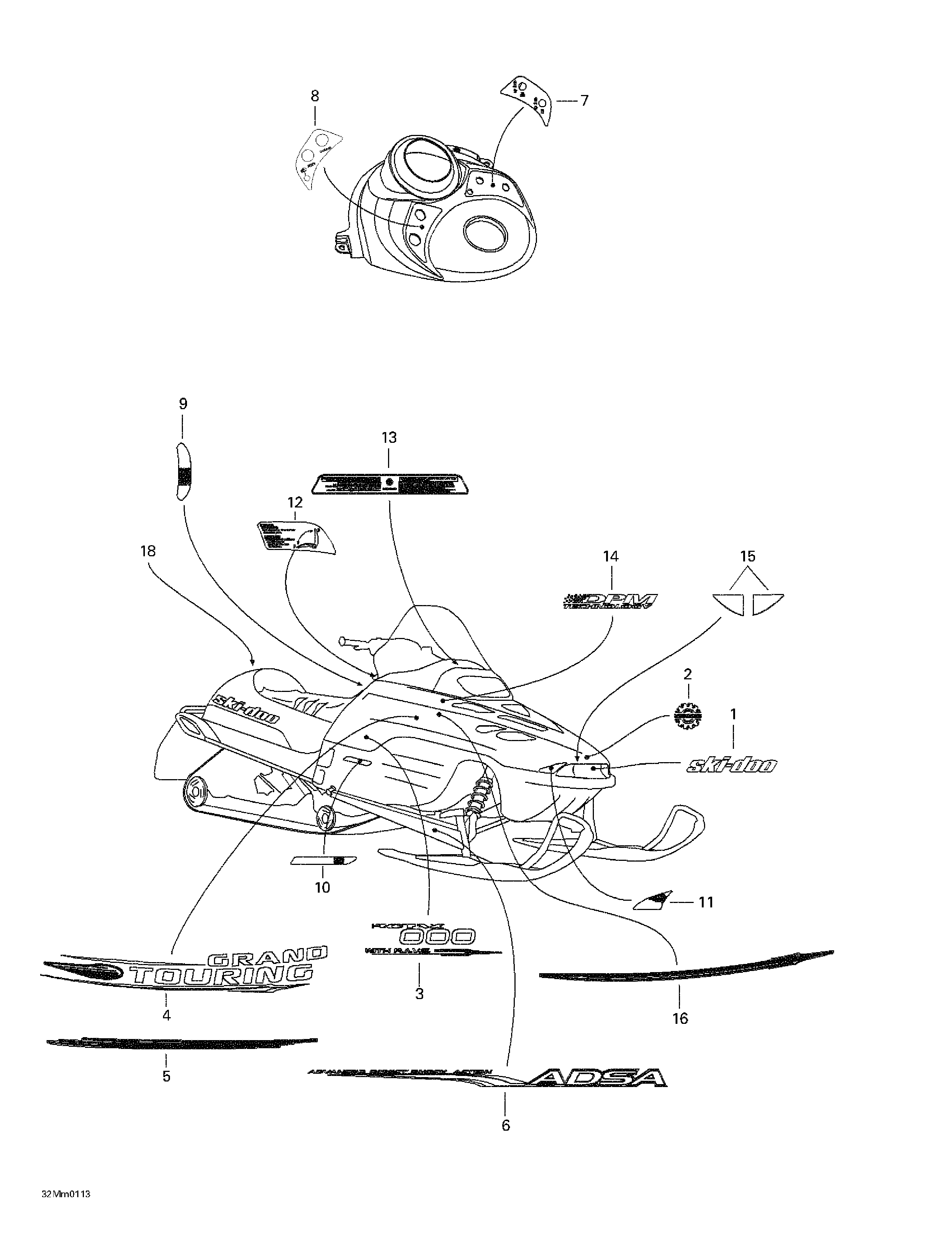

09- Decals для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1516000338 > Decal> Decal
-
2516000983 BOMBARDIER LogoBOMBARDIER Logo
-
3415128042 > Decal Kit (Black). Grand Touring 500.> Decal Kit (Black). Grand Touring 500.
-
415128043 > Decal Kit (Cloud). Grand Touring 500.> Decal Kit (Cloud). Grand Touring 500.
-
415128044 > Decal Kit (Black). Grand Touring 600.> Decal Kit (Black). Grand Touring 600.
-
415128039 > Decal Kit (Cloud). Grand Touring 600.> Decal Kit (Cloud). Grand Touring 600.
-
415128040 > Decal Kit (Black). Grand Touring 700.> Decal Kit (Black). Grand Touring 700.
-
415128041 > Decal Kit (Cloud). Grand Touring 700.> Decal Kit (Cloud). Grand Touring 700.
-
4415128046 Side Decal Kit (Black)Side Decal Kit (Black)
-
415128045 Side Decal Kit (Cloud)Side Decal Kit (Cloud)
-
5415128048 Lower Side Decal Kit (Black)Lower Side Decal Kit (Black)
-
415128047 Lower Side Decal Kit (Cloud)Lower Side Decal Kit (Cloud)
-
6415128049 Arm Decal KitArm Decal Kit
-
7516000227 Heat Thumb DecalHeat Thumb Decal
-
8516000493 DESS DecalDESS Decal
-
9516000224 Reflector Decal (Yellow)Reflector Decal (Yellow)
-
516000225 Reflector Decal (Red) (Europe)Reflector Decal (Red) (Europe)
-
10415064400 R.H. Reflector (Yellow)R.H. Reflector (Yellow)
-
415064401 L.H. Reflector (Yellow)L.H. Reflector (Yellow)
-
11415127656 Reflector KitReflector Kit
-
12516000458 Reverse DecalReverse Decal
-
13516000300 Warning LabelWarning Label
-
14516000961 DPM Decal (Black). Grand Touring 700.DPM Decal (Black). Grand Touring 700.
-
516000464 DPM Decal (Cloud). Grand Touring 700.DPM Decal (Cloud). Grand Touring 700.
-
15415127659 Bumper Decal KitBumper Decal Kit
-
16415128050 Upper Side Decal Kit (Black)Upper Side Decal Kit (Black)
-
415128051 Upper Side Decal Kit (Cloud)Upper Side Decal Kit (Cloud)
-
17415128053 Hood Decal Kit (not shown) (BLack). (Incl. Item 1,4,5,7,8,9,11,12,13,14,16)Hood Decal Kit (not shown) (BLack). (Incl. Item 1,4,5,7,8,9,11,12,13,14,16)
-
415128052 Hood Decal Kit (not shown) (Cloud). (Incl. Item 1,4,5,7,8,9,11,12,13,14,16)Hood Decal Kit (not shown) (Cloud). (Incl. Item 1,4,5,7,8,9,11,12,13,14,16)
-
18415037900 White Reflector (Europe)White Reflector (Europe)
