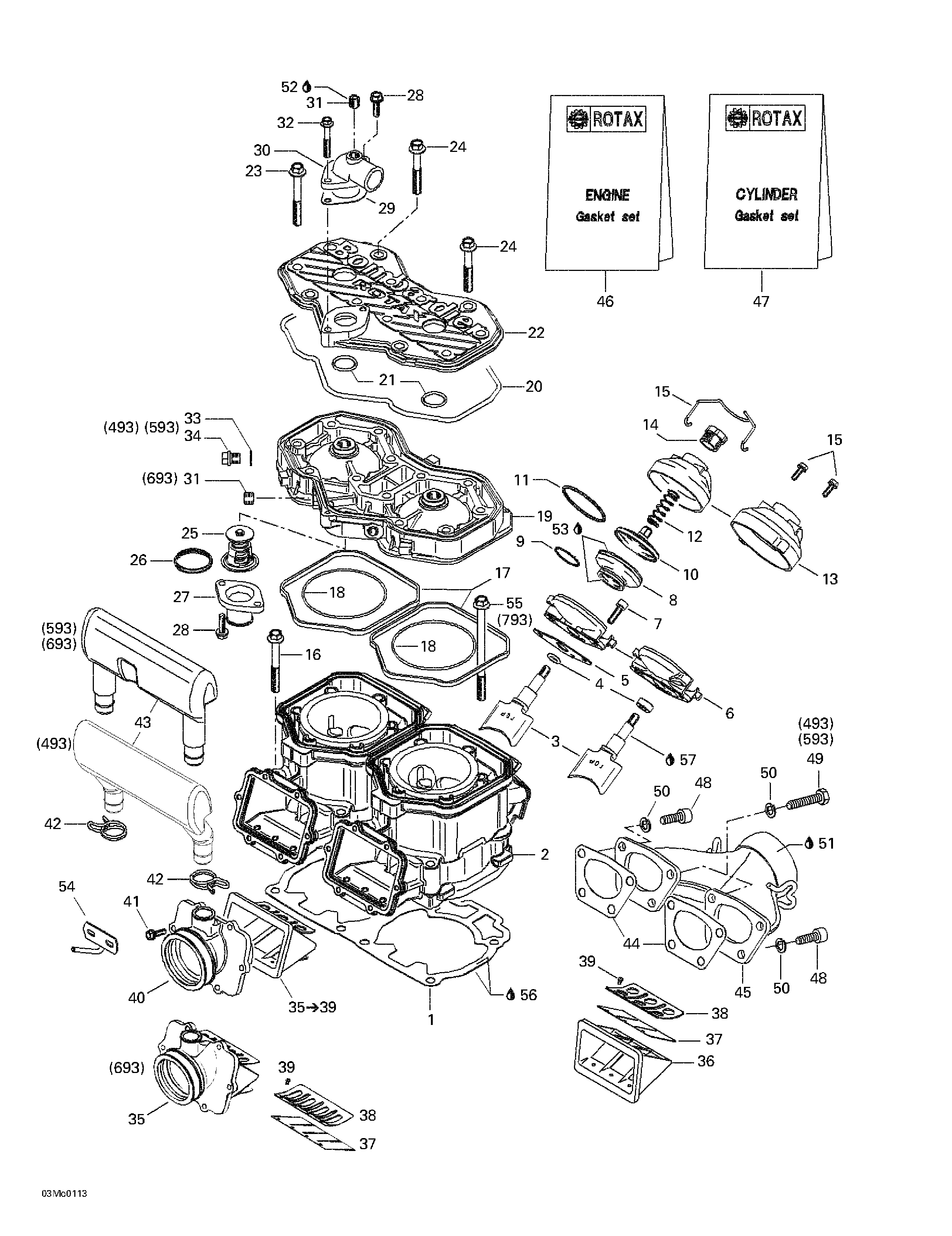

01- Cylinder, Exhaust Manifold, Reed Valve для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1420931589 Double Gasket 0.8 mm. Grand Touring 500.Double Gasket 0.8 mm. Grand Touring 500.
-
420931584 Double Gasket 0.8 mm. Grand Touring 600.Double Gasket 0.8 mm. Grand Touring 600.
-
420931895 Double Gasket 0.8 mm. Grand Touring 700.Double Gasket 0.8 mm. Grand Touring 700.
-
420931960 Double Gasket 0.7 mm. Grand Touring 500.Double Gasket 0.7 mm. Grand Touring 500.
-
420931962 Double Gasket 0.7 mm. Grand Touring 600.Double Gasket 0.7 mm. Grand Touring 600.
-
420931894 Double Gasket 0.7 mm. Grand Touring 700.Double Gasket 0.7 mm. Grand Touring 700.
-
420931587 Double Gasket 0.6 mm. Grand Touring 500.Double Gasket 0.6 mm. Grand Touring 500.
-
420931582 Double Gasket 0.6 mm. Grand Touring 600.Double Gasket 0.6 mm. Grand Touring 600.
-
420931892 Double Gasket 0.6 mm. Grand Touring 700.Double Gasket 0.6 mm. Grand Touring 700.
-
420931588 Double Gasket 0.5 mm. Grand Touring 500.Double Gasket 0.5 mm. Grand Touring 500.
-
420931583 Double Gasket 0.5 mm. Grand Touring 600.Double Gasket 0.5 mm. Grand Touring 600.
-
420931893 Double Gasket 0.5 mm. Grand Touring 700.Double Gasket 0.5 mm. Grand Touring 700.
-
2420923855 Cylinder with Sleeve. Grand Touring 500.Cylinder with Sleeve. Grand Touring 500.
-
420923437 Cylinder with Sleeve. Grand Touring 600.Cylinder with Sleeve. Grand Touring 600.
-
420923694 Cylinder with Sleeve (Nicasil). Grand Touring 700.Cylinder with Sleeve (Nicasil). Grand Touring 700.
-
3420854490 Exhaust Valve. Grand Touring 500.Exhaust Valve. Grand Touring 500.
-
420854370 Exhaust Valve. Grand Touring 600.Exhaust Valve. Grand Touring 600.
-
420854332 Exhaust Valve. Grand Touring 700.Exhaust Valve. Grand Touring 700.
-
4420430110 O-Ring. Grand Touring 500. Grand Touring 600.O-Ring. Grand Touring 500. Grand Touring 600.
-
420950730 Oil SealOil Seal
-
5420250239 GasketGasket
-
6420854265 Valve Housing (Spring Clip). Grand Touring 500. Grand Touring 600.Valve Housing (Spring Clip). Grand Touring 500. Grand Touring 600.
-
420854266 Valve Housing (Screw)Valve Housing (Screw)
-
7205062044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
8290260723 BellowsBellows
-
9420838253 Spring ClampSpring Clamp
-
10420854449 Exhaust ValveExhaust Valve
-
11290239048 Hose SpringHose Spring
-
12420239948 Spring. Grand Touring 500.Spring. Grand Touring 500.
-
420239944 Spring. Grand Touring 600. Grand Touring 700.Spring. Grand Touring 600. Grand Touring 700.
-
13420911551 Valve Cover (Spring Clip). Grand Touring 500. Grand Touring 600.Valve Cover (Spring Clip). Grand Touring 500. Grand Touring 600.
-
420911552 Valve Cover (Screw)Valve Cover (Screw)
-
14420241221 Adjuster ScrewAdjuster Screw
-
15420838083 Spring Clip. Grand Touring 500. Grand Touring 600.Spring Clip. Grand Touring 500. Grand Touring 600.
-
420841555 Tapping Screw M5 x 20Tapping Screw M5 x 20
-
16420640951 Hex. Screw M8 x 68.5. Grand Touring 500. Grand Touring 600.Hex. Screw M8 x 68.5. Grand Touring 500. Grand Touring 600.
-
420640524 Hex. Screw M10 x 80. Grand Touring 700.Hex. Screw M10 x 80. Grand Touring 700.
-
17420931590 Rubber RingRubber Ring
-
18420831792 O-Ring. Grand Touring 500.O-Ring. Grand Touring 500.
-
293300026 O-Ring. Grand Touring 600.O-Ring. Grand Touring 600.
-
420931840 Rubber Ring. Grand Touring 700.Rubber Ring. Grand Touring 700.
-
19420923880 Cylinder Head (Silver). Grand Touring 500.Cylinder Head (Silver). Grand Touring 500.
-
420923452 Cylinder Head (Silver). Grand Touring 600.Cylinder Head (Silver). Grand Touring 600.
-
420923457 Cylinder Head (Silver). Grand Touring 700.Cylinder Head (Silver). Grand Touring 700.
-
20290950320 O-RingO-Ring
-
21420430782 O-RingO-Ring
-
22420923460 Cylinder Head Cover (Silver)Cylinder Head Cover (Silver)
-
23420841306 Hex. Collar Screw M8 x 65Hex. Collar Screw M8 x 65
-
24420941621 Hex. Collar Screw M8 x 56.5Hex. Collar Screw M8 x 56.5
-
25420922515 ThermostatThermostat
-
26420931270 Sealing RingSealing Ring
-
27420922025 Outlet SocketOutlet Socket
-
28420941250 Screw M6 x 20Screw M6 x 20
-
29420850338 GasketGasket
-
30420922062 Bent Outlet SocketBent Outlet Socket
-
31420240480 Plug Screw 1/8-27 NPTPlug Screw 1/8-27 NPT
-
32420941451 Hex. Collar Screw M6 x 40Hex. Collar Screw M6 x 40
-
33420250015 Gasket Ring. Grand Touring 500. Grand Touring 600.Gasket Ring. Grand Touring 500. Grand Touring 600.
-
34420841921 Plug Screw M12 x 1.5. Grand Touring 500. Grand Touring 600.Plug Screw M12 x 1.5. Grand Touring 500. Grand Touring 600.
-
35420924519 Reed Valve Ass'y. Includes 35 - 39. Grand Touring 500. Grand Touring 600.Reed Valve Ass'y. Includes 35 - 39. Grand Touring 500. Grand Touring 600.
-
420867870 Carburetor Socket. Grand Touring 700.Carburetor Socket. Grand Touring 700.
-
37420924532 Reed Pedal. Grand Touring 500. Grand Touring 600.Reed Pedal. Grand Touring 500. Grand Touring 600.
-
420924680 Reed Pedal. Grand Touring 700.Reed Pedal. Grand Touring 700.
-
38420924539 Reed Pedal Stop. Grand Touring 500. Grand Touring 600.Reed Pedal Stop. Grand Touring 500. Grand Touring 600.
-
420924695 Reed Pedal Stop. Grand Touring 700.Reed Pedal Stop. Grand Touring 700.
-
39420941215 Screw M3 x 5. Grand Touring 500. Grand Touring 600.Screw M3 x 5. Grand Touring 500. Grand Touring 600.
-
420941215 Screw M3 x 5. Grand Touring 700.Screw M3 x 5. Grand Touring 700.
-
40420867860 Carburetor Socket. Grand Touring 500.Carburetor Socket. Grand Touring 500.
-
420867880 Carburetor Socket. Grand Touring 600.Carburetor Socket. Grand Touring 600.
-
41420941925 Screw M5 x 16Screw M5 x 16
-
42420851440 ClampClamp
-
43420867815 Intake Resonator. Grand Touring 500.Intake Resonator. Grand Touring 500.
-
420867817 Intake Resonator. Grand Touring 600. Grand Touring 700.Intake Resonator. Grand Touring 600. Grand Touring 700.
-
44420931615 Gasket. Grand Touring 500.Gasket. Grand Touring 500.
-
420931610 Gasket. Grand Touring 600.Gasket. Grand Touring 600.
-
420850552 Gasket. Grand Touring 700.Gasket. Grand Touring 700.
-
45420973650 Exhaust Manifold. Grand Touring 500.Exhaust Manifold. Grand Touring 500.
-
420979543 Exhaust Manifold. Grand Touring 600.Exhaust Manifold. Grand Touring 600.
-
420973591 Exhaust Manifold. Grand Touring 700.Exhaust Manifold. Grand Touring 700.
-
46420888721 Engine Gasket Set. Grand Touring 500.Engine Gasket Set. Grand Touring 500.
-
420888582 Engine Gasket Set. Grand Touring 600.Engine Gasket Set. Grand Touring 600.
-
420888602 Engine Gasket Set. Grand Touring 700.Engine Gasket Set. Grand Touring 700.
-
47420888726 Cylinder Gasket Set. Grand Touring 500.Cylinder Gasket Set. Grand Touring 500.
-
420888587 Cylinder Gasket Set. Grand Touring 600.Cylinder Gasket Set. Grand Touring 600.
-
420888607 Cylinder Gasket Set. Grand Touring 700.Cylinder Gasket Set. Grand Touring 700.
-
48205082544 Socket Head Screw M8 x 25. Grand Touring 500. Grand Touring 600.Socket Head Screw M8 x 25. Grand Touring 500. Grand Touring 600.
-
205062044 Socket Head Screw M6 x 20. Grand Touring 700.Socket Head Screw M6 x 20. Grand Touring 700.
-
49207182044 Hex. Screw M8 x 20. Grand Touring 500. Grand Touring 600.Hex. Screw M8 x 20. Grand Touring 500. Grand Touring 600.
-
50234181401 Lock Washer 8 mm. Grand Touring 500. Grand Touring 600.Lock Washer 8 mm. Grand Touring 500. Grand Touring 600.
-
234161471 Lock Washer 6 mm. Grand Touring 700.Lock Washer 6 mm. Grand Touring 700.
-
51413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
52293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
53413707000 Molykote 111Molykote 111
-
54512059369 Carburetor BracketCarburetor Bracket
-
55420640534 Hex. Screw M10 x 120. Grand Touring 700.Hex. Screw M10 x 120. Grand Touring 700.
-
56293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
57711297433 MolykoteG-nPaste,DowCorning,88162-74,50gMolykoteG-nPaste,DowCorning,88162-74,50g
