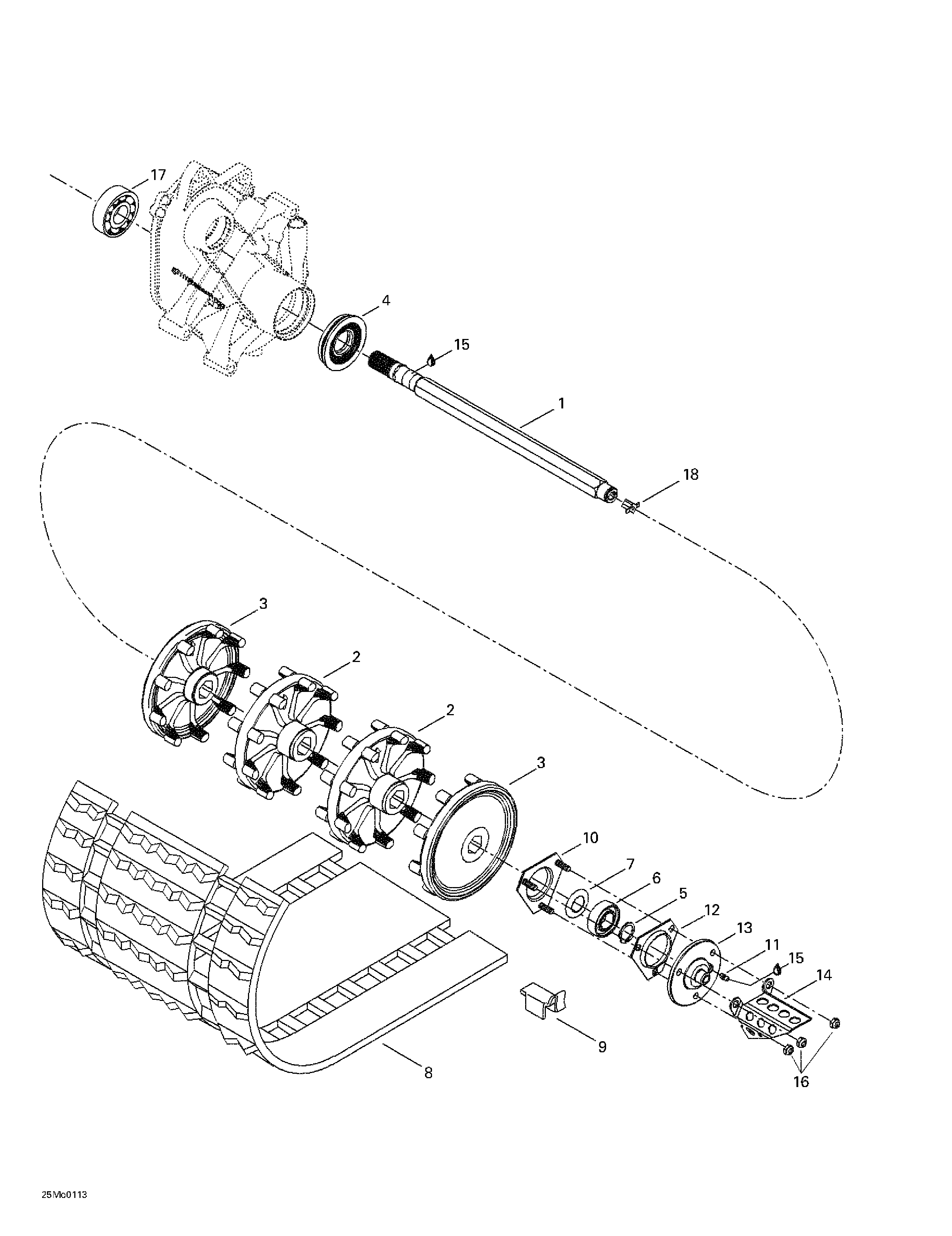

05- Drive Axle And Track для BRP Ski-Doo Grand Touring 500/600/700 - 2001
![](/wa-data/public/shop/sheme/bombardier/ski-doo/92a96896-9e35-4a61-9f5d-30ba7666969b.png)
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504151781 Sprocket 9-TeethSprocket 9-Teeth
-
3504151782 Half Sprocket 9-TeethHalf Sprocket 9-Teeth
-
4504151918 Oil SealOil Seal
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Ball Bearing ProtectorBall Bearing Protector
-
8504151935 Track Ass'y. Includes 8 - 9.Track Ass'y. Includes 8 - 9.
-
9500003400 Guide CleatGuide Cleat
-
10504151860 Bearing HousingBearing Housing
-
11408200700 Grease FittingGrease Fitting
-
12501025000 FlangeFlange
-
13504151836 Flange (Speed Drive Insert)Flange (Speed Drive Insert)
-
14517290100 Cable ProtectorCable Protector
-
15219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
16232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
17504152005 Ball BearingBall Bearing
-
18572010100 Speedometer Drive InsertSpeedometer Drive Insert
