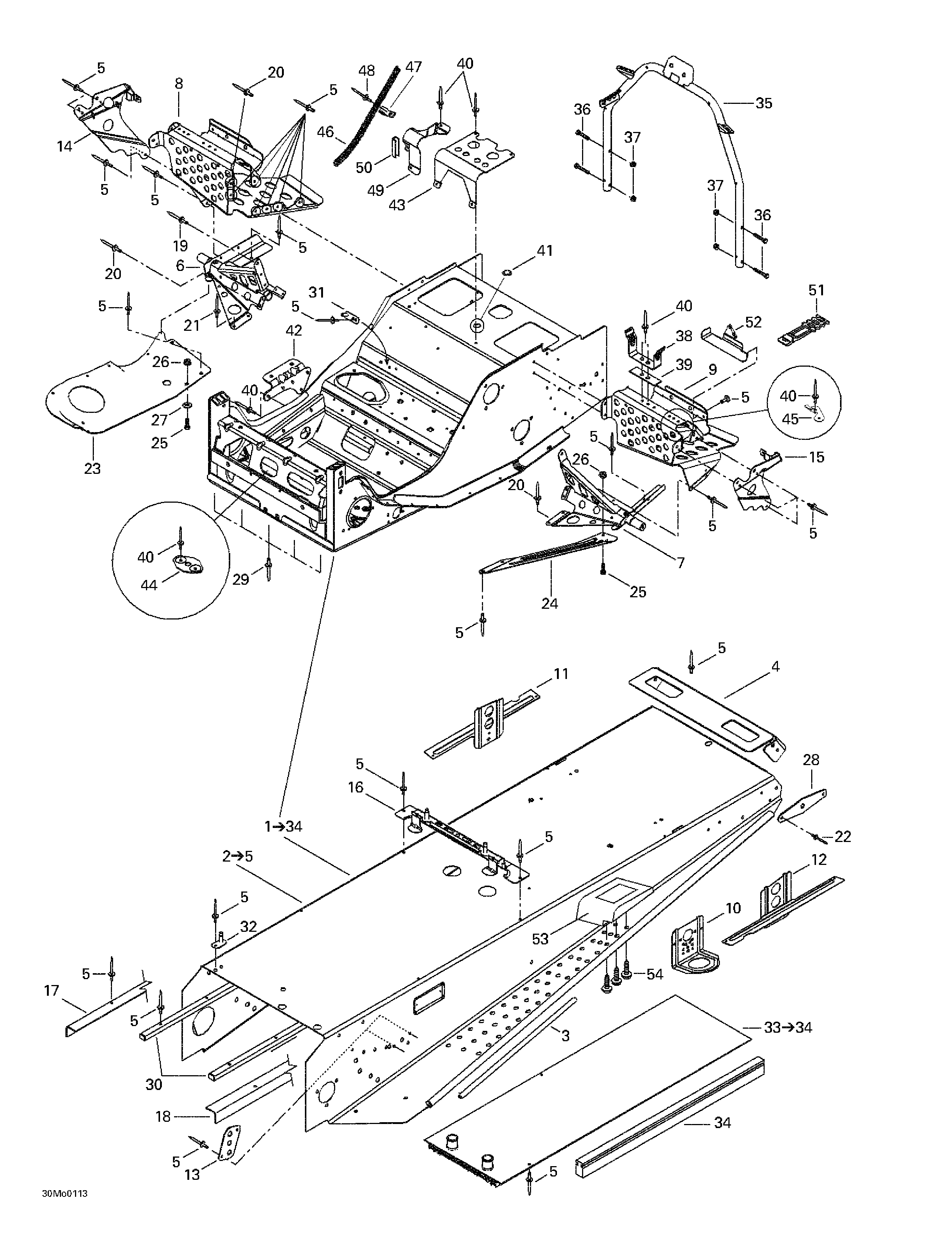

09- Frame And Accessories для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1518322497 Frame (Full Moon) B-211. Includes 1 - 34.Frame (Full Moon) B-211. Includes 1 - 34.
-
2518322539 Forming Frame (Full Moon) B-211. Includes 2 - 5.Forming Frame (Full Moon) B-211. Includes 2 - 5.
-
3518304746 Footrest ReinforcementFootrest Reinforcement
-
4518321873 Rear CapRear Cap
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6518320506 R.H. Footrest SupportR.H. Footrest Support
-
7518320507 L.H. Footrest SupportL.H. Footrest Support
-
8518322393 R.H. FootrestR.H. Footrest
-
9518322394 L.H. FootrestL.H. Footrest
-
10518321495 Front BracketFront Bracket
-
11518322289 R.H.Rear BracketR.H.Rear Bracket
-
12518322292 L.H. Rear BracketL.H. Rear Bracket
-
13518201321 Reinforcement PlateReinforcement Plate
-
14518321305 R.H. Footrest ReinforcementR.H. Footrest Reinforcement
-
15518321307 L.H. Footrest ReinforcementL.H. Footrest Reinforcement
-
16518321510 Fuel Tank BracketFuel Tank Bracket
-
17518322395 R.H. Frame ReinforcementR.H. Frame Reinforcement
-
18518322396 L.H. Frame ReinforcementL.H. Frame Reinforcement
-
19390909200 Rivet AVEXRivet AVEX
-
20390909100 Rivet AVEXRivet AVEX
-
21390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390402400 Pop Rivet 3/16Pop Rivet 3/16
-
23518319760 R.H. Bottom Pan PlateR.H. Bottom Pan Plate
-
24518322119 L.H. Reinforcement PlateL.H. Reinforcement Plate
-
25207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
26233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
27391301700 Flat WasherFlat Washer
-
28518316767 Rear ReinforcementRear Reinforcement
-
30518321543 Frame ProtectorFrame Protector
-
31518322391 Double BracketDouble Bracket
-
32518321604 GuideGuide
-
33517296310 Rear Radiator. Includes 33 - 34.Rear Radiator. Includes 33 - 34.
-
34518321656 Radiator ProtectorRadiator Protector
-
35518321957 Handle SupportHandle Support
-
36207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
37233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38518202100 Pulley Guard BracketPulley Guard Bracket
-
39518207500 ReinforcementReinforcement
-
40390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
41414859400 CapCap
-
42518206300 Muffler SupportMuffler Support
-
43518310400 Air Intake SupportAir Intake Support
-
44518201307 Plate BracketPlate Bracket
-
45518322031 Tool Kit BracketTool Kit Bracket
-
46518321569 Rope GuideRope Guide
-
47518321570 ClipClip
-
48390406500 Pop RivetPop Rivet
-
49518319762 Hose SupportHose Support
-
50271000110 TrimTrim
-
51570069700 LatchLatch
-
52518321999 Tool Kit SupportTool Kit Support
-
53572088700 R.H. FootrestR.H. Footrest
-
572088800 L.H. FootrestL.H. Footrest
-
54243141640 Hex. Tapping Screw M4.8 x 16Hex. Tapping Screw M4.8 x 16
