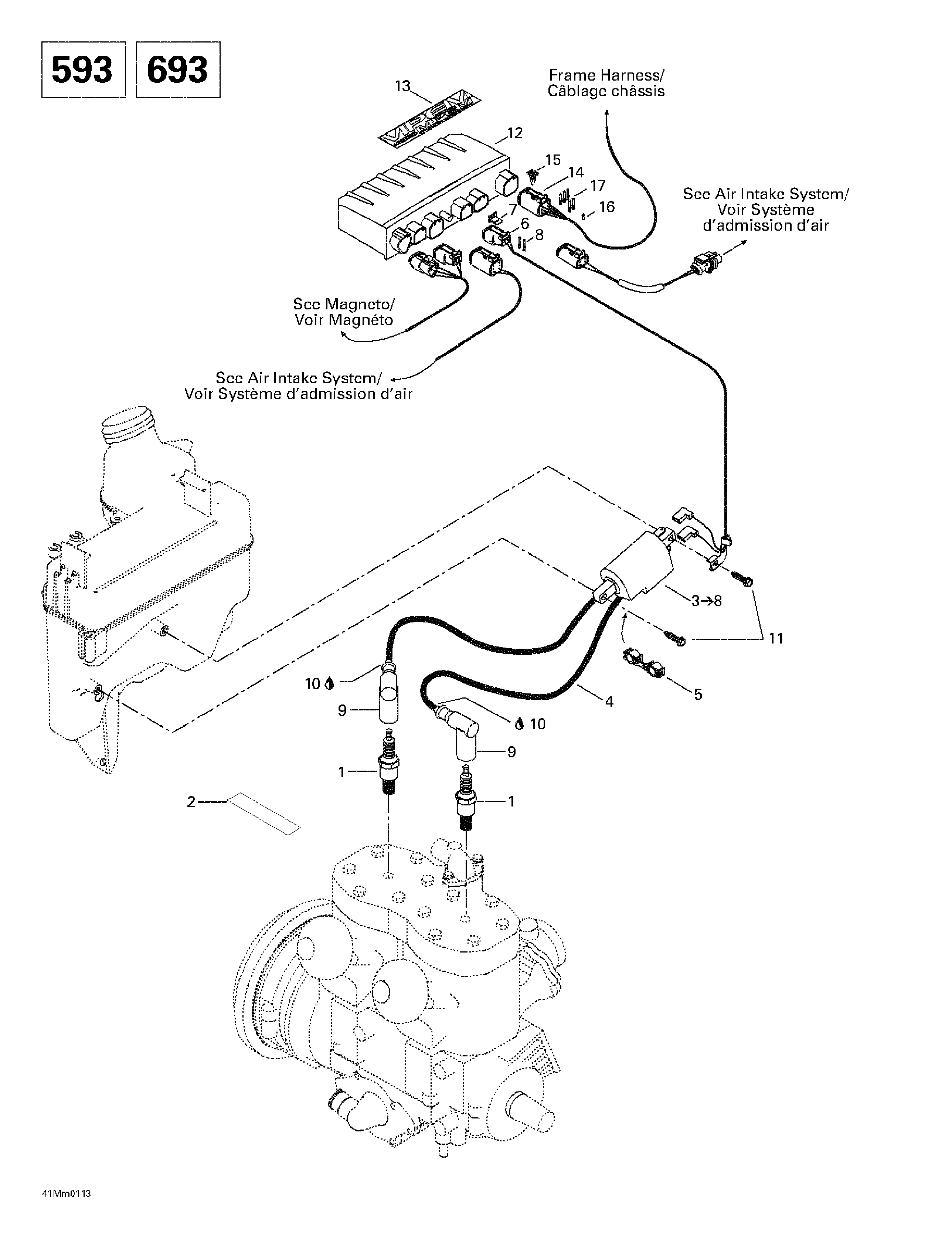

03- Ignition (593, 693) для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1414961100 Spark Plug (NGK BR9ES). Grand Touring 600. Grand Touring 700.Spark Plug (NGK BR9ES). Grand Touring 600. Grand Touring 700.
-
2516000986 Spark Plug Decal. Grand Touring 600. Grand Touring 700.Spark Plug Decal. Grand Touring 600. Grand Touring 700.
-
3512059039 Ignition Coil. Includes 3 - 8. Grand Touring 600. Grand Touring 700.Ignition Coil. Includes 3 - 8. Grand Touring 600. Grand Touring 700.
-
4278001268 Spark Plug Wire. Grand Touring 600. Grand Touring 700.Spark Plug Wire. Grand Touring 600. Grand Touring 700.
-
5410914600 Plastic Clip. Grand Touring 600. Grand Touring 700.Plastic Clip. Grand Touring 600. Grand Touring 700.
-
6409207300 Female Terminal Housing (2 circuits). Grand Touring 600. Grand Touring 700.Female Terminal Housing (2 circuits). Grand Touring 600. Grand Touring 700.
-
7409207100 Female Lock (2 circuits). Grand Touring 600. Grand Touring 700.Female Lock (2 circuits). Grand Touring 600. Grand Touring 700.
-
8278000632 Female Terminal. Grand Touring 600. Grand Touring 700.Female Terminal. Grand Touring 600. Grand Touring 700.
-
9278000237 Spark Plug Protector. Grand Touring 600. Grand Touring 700.Spark Plug Protector. Grand Touring 600. Grand Touring 700.
-
10293550004 Dielectric Grease, 150 g. Grand Touring 600. Grand Touring 700.Dielectric Grease, 150 g. Grand Touring 600. Grand Touring 700.
-
11250000005 Hex. Tapping Screw. Grand Touring 600. Grand Touring 700.Hex. Tapping Screw. Grand Touring 600. Grand Touring 700.
-
12512059300 Calibration Module. Grand Touring 600.Calibration Module. Grand Touring 600.
-
512059385 Calibration Module. Grand Touring 700.Calibration Module. Grand Touring 700.
-
13516000245 Electrical Box Decal. Grand Touring 600. Grand Touring 700.Electrical Box Decal. Grand Touring 600. Grand Touring 700.
-
14278000736 Female Terminal Housing (6 circuits). Grand Touring 600. Grand Touring 700.Female Terminal Housing (6 circuits). Grand Touring 600. Grand Touring 700.
-
15278000737 (Female) Secondary Lock (6 Circuits) (Deutsch). Grand Touring 600. Grand Touring 700.(Female) Secondary Lock (6 Circuits) (Deutsch). Grand Touring 600. Grand Touring 700.
-
16293000052 Plug. Grand Touring 600. Grand Touring 700.Plug. Grand Touring 600. Grand Touring 700.
-
17278000632 Female Terminal. Grand Touring 600. Grand Touring 700.Female Terminal. Grand Touring 600. Grand Touring 700.
