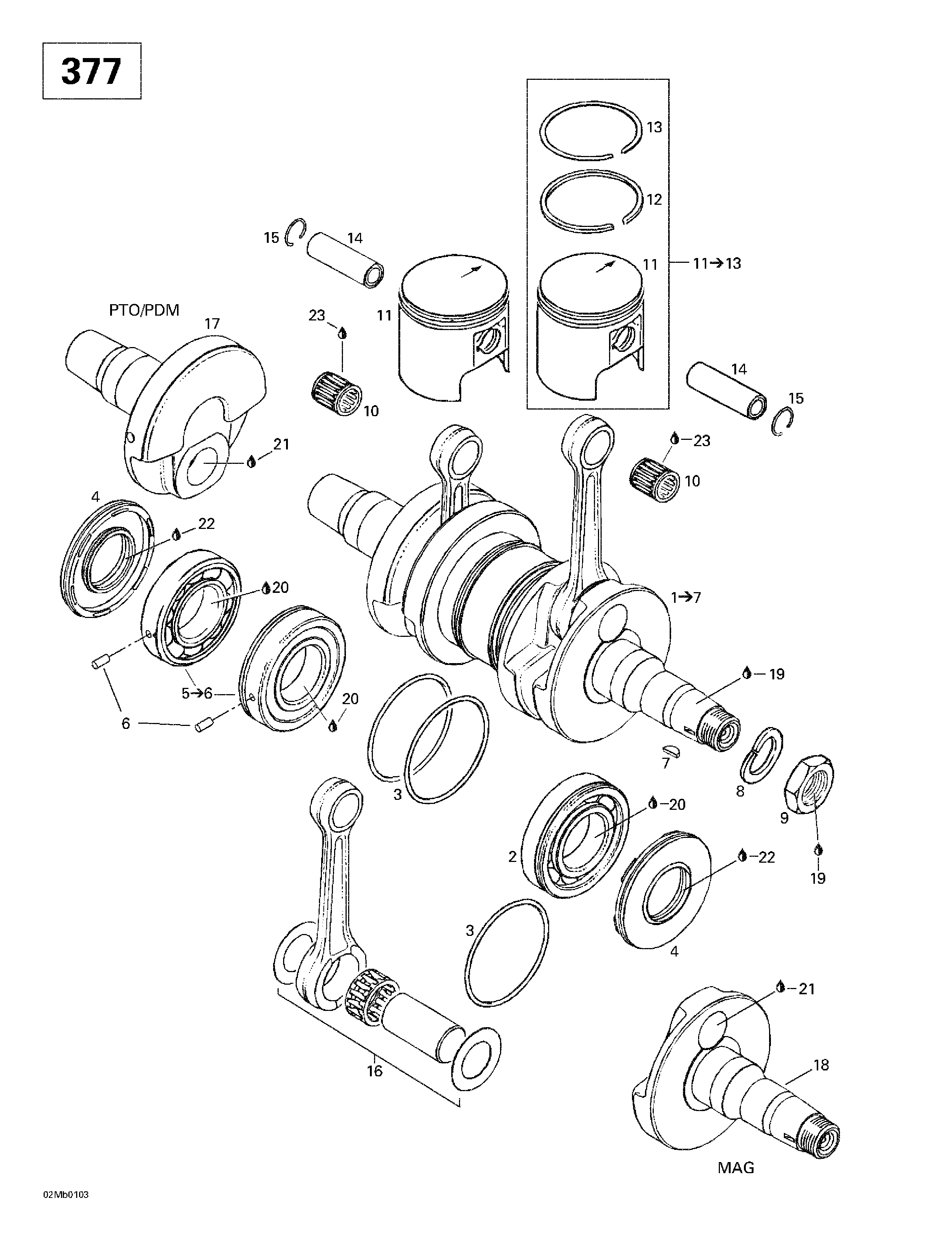

01- Crankshaft (377) для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1420887249 Crankshaft Ass'y. Includes 1 - 7. Touring 380 F.Crankshaft Ass'y. Includes 1 - 7. Touring 380 F.
-
2420832570 Ball Bearing 6207. Touring 380 F.Ball Bearing 6207. Touring 380 F.
-
3420250165 O-Ring 64 mm. Touring 380 F.O-Ring 64 mm. Touring 380 F.
-
4290831952 Oil Seal. Touring 380 F.Oil Seal. Touring 380 F.
-
5420832574 Ball Bearing 6207 Ass'y. Includes 5 - 6. Touring 380 F.Ball Bearing 6207 Ass'y. Includes 5 - 6. Touring 380 F.
-
6420929972 Dowel Pin. Touring 380 F.Dowel Pin. Touring 380 F.
-
7420246055 Woodruff Key. Touring 380 F.Woodruff Key. Touring 380 F.
-
8420945759 Lock Washer 22 mm. Touring 380 F.Lock Washer 22 mm. Touring 380 F.
-
9420842230 Hex. Nut M22. Touring 380 F.Hex. Nut M22. Touring 380 F.
-
10420932904 Needle Bearing. Touring 380 F.Needle Bearing. Touring 380 F.
-
11420887475 Piston Ass'y 61.94 mm. Includes 11 - 13. Touring 380 F.Piston Ass'y 61.94 mm. Includes 11 - 13. Touring 380 F.
-
420887476 Oversize Piston Ass'y 62.19 mm. Touring 380 F.Oversize Piston Ass'y 62.19 mm. Touring 380 F.
-
420887477 Oversize Piston Ass'y 62.44 mm. Touring 380 F.Oversize Piston Ass'y 62.44 mm. Touring 380 F.
-
12420915895 Rectangular Ring 62.0 mm. Touring 380 F.Rectangular Ring 62.0 mm. Touring 380 F.
-
420915896 Rectangular Ring 62.25 mm. Touring 380 F.Rectangular Ring 62.25 mm. Touring 380 F.
-
420915897 Rectangular Ring 62.5 mm. Touring 380 F.Rectangular Ring 62.5 mm. Touring 380 F.
-
13420215215 Semi-Trapez Ring 62.0 mm. Touring 380 F.Semi-Trapez Ring 62.0 mm. Touring 380 F.
-
420215216 Semi-Trapez Ring 62.25 mm. Touring 380 F.Semi-Trapez Ring 62.25 mm. Touring 380 F.
-
420215217 Semi-Trapez Ring 62.5 mm. Touring 380 F.Semi-Trapez Ring 62.5 mm. Touring 380 F.
-
14420916260 Gudgeon Pin. Touring 380 F.Gudgeon Pin. Touring 380 F.
-
15420945735 Piston Circlip. Touring 380 F.Piston Circlip. Touring 380 F.
-
16420996334 Rod Repair Kit. Touring 380 F.Rod Repair Kit. Touring 380 F.
-
17420818203 Crankshalf PTO. Touring 380 F.Crankshalf PTO. Touring 380 F.
-
18420919979 Crankshalf MAG. Touring 380 F.Crankshalf MAG. Touring 380 F.
-
19293800060 Loctite 243, 10 ml. Touring 380 F.Loctite 243, 10 ml. Touring 380 F.
-
20293800023 Loctite 767, Antiseize Lubricant, 454 g. Touring 380 F.Loctite 767, Antiseize Lubricant, 454 g. Touring 380 F.
-
21413711400 Loctite 648, 10 ml. Touring 380 F.Loctite 648, 10 ml. Touring 380 F.
-
22413707000 Molykote 111. Touring 380 F.Molykote 111. Touring 380 F.
-
23413802900 Injection Oil (12 x 1 Liter). Touring 380 F.Injection Oil (12 x 1 Liter). Touring 380 F.
