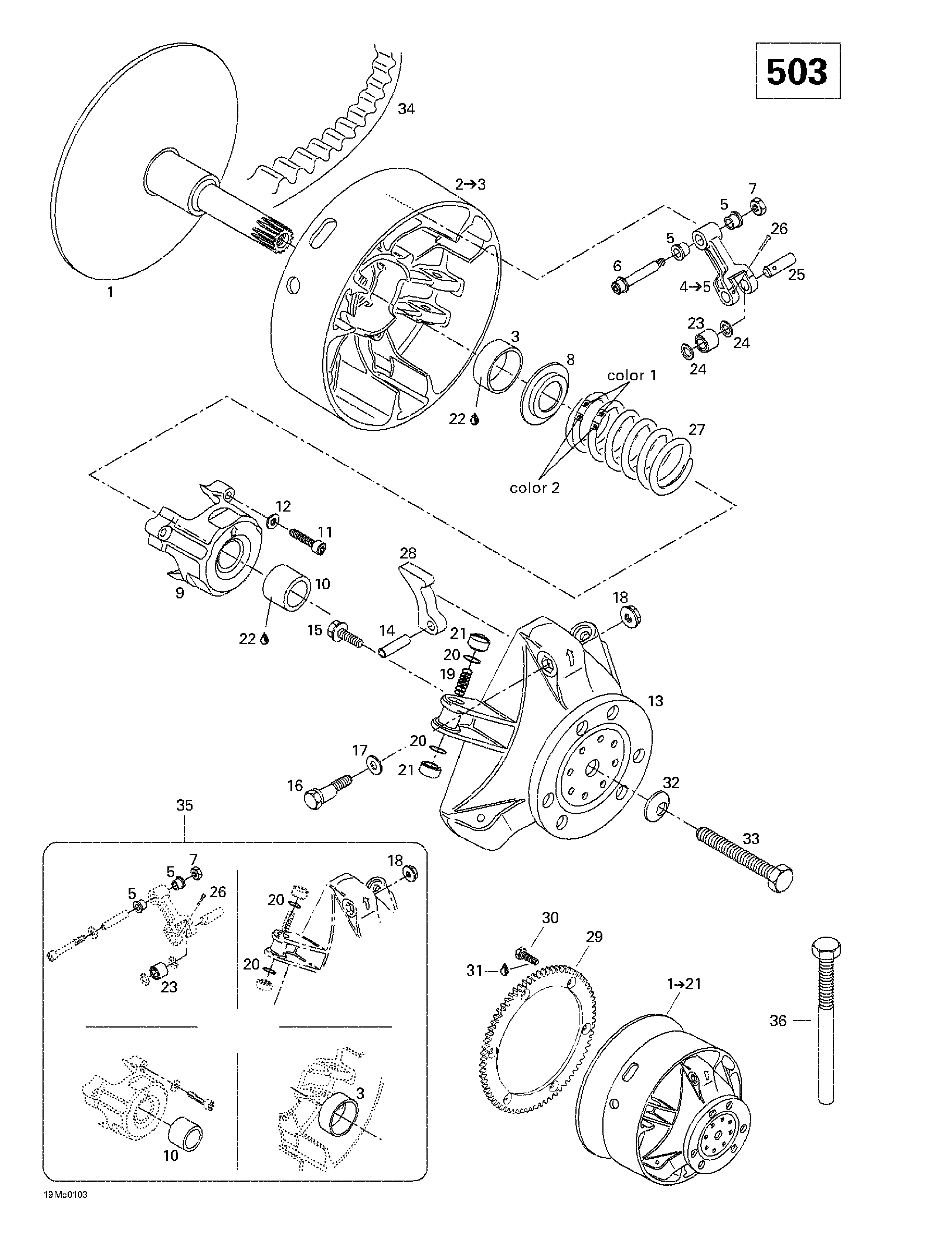

05- Drive Pulley (503) для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1417222368 Drive Pulley Ass'y. Includes 1 - 21. Touring 500 F.Drive Pulley Ass'y. Includes 1 - 21. Touring 500 F.
-
1417222250 Fixed Flange. Touring 500 F.Fixed Flange. Touring 500 F.
-
2417222241 Sliding Flange Ass'y. Includes 2 - 3. Touring 500 F.Sliding Flange Ass'y. Includes 2 - 3. Touring 500 F.
-
3417004201 Bushing. Touring 500 F.Bushing. Touring 500 F.
-
4417222383 Lever Ass'y. Includes 4 - 5. Touring 500 F.Lever Ass'y. Includes 4 - 5. Touring 500 F.
-
5417004305 Bushing. Touring 500 F.Bushing. Touring 500 F.
-
6417004800 Screw Ass'y. Touring 500 F.Screw Ass'y. Touring 500 F.
-
7232561414 Elastic Stop Nut M6. Touring 500 F.Elastic Stop Nut M6. Touring 500 F.
-
8417222044 Spring Seat. Touring 500 F.Spring Seat. Touring 500 F.
-
9417222304 Spring Cover Ass'y. Includes 9 - 10. Touring 500 F.Spring Cover Ass'y. Includes 9 - 10. Touring 500 F.
-
10417004501 Bushing. Touring 500 F.Bushing. Touring 500 F.
-
11205064086 Socket Head Screw M6 x 40. Touring 500 F.Socket Head Screw M6 x 40. Touring 500 F.
-
12420245370 Washer. Touring 500 F.Washer. Touring 500 F.
-
13417222081 Governor Cup Ass'y. Touring 500 F.Governor Cup Ass'y. Touring 500 F.
-
14732804009 Rolled Pin M8 x 24. Touring 500 F.Rolled Pin M8 x 24. Touring 500 F.
-
15210361890 Hex. Forming Screw M6 x 18. Touring 500 F.Hex. Forming Screw M6 x 18. Touring 500 F.
-
16417005500 Calibration Screw. Touring 500 F.Calibration Screw. Touring 500 F.
-
17417005600 Washer. Touring 500 F.Washer. Touring 500 F.
-
18233061414 Hex. Flanged Nut M6. Touring 500 F.Hex. Flanged Nut M6. Touring 500 F.
-
19417005700 Spring. Touring 500 F.Spring. Touring 500 F.
-
20732401030 O-Ring. Touring 500 F.O-Ring. Touring 500 F.
-
21417005800 Slider Shoe. Touring 500 F.Slider Shoe. Touring 500 F.
-
22413703100 Loctite 609, 10 ml. Touring 500 F.Loctite 609, 10 ml. Touring 500 F.
-
23417003900 Roller Ass'y. Touring 500 F.Roller Ass'y. Touring 500 F.
-
24417004302 Stopper Washer. Touring 500 F.Stopper Washer. Touring 500 F.
-
25417004309 Pin. Touring 500 F.Pin. Touring 500 F.
-
26732958001 Cotter Pin. Touring 500 F.Cotter Pin. Touring 500 F.
-
27414689800 Spring (Red/Red). Touring 500 F.Spring (Red/Red). Touring 500 F.
-
28417005292X Ramp 292X. Touring 500 F.Ramp 292X. Touring 500 F.
-
29417009400 Ring Gear (86 Tooth). Touring 500 F.Ring Gear (86 Tooth). Touring 500 F.
-
30236281684 Forming Screw M8 x 16. Touring 500 F.Forming Screw M8 x 16. Touring 500 F.
-
31293800005 Loctite 271, 10 ml. Touring 500 F.Loctite 271, 10 ml. Touring 500 F.
-
32205200005 Conical Spring Washer. Touring 500 F.Conical Spring Washer. Touring 500 F.
-
33417113800 Bolt. Touring 500 F.Bolt. Touring 500 F.
-
34415060600 Drive Belt. Touring 500 F.Drive Belt. Touring 500 F.
-
35417006100 Clutch Repair Kit. Touring 500 F.Clutch Repair Kit. Touring 500 F.
-
36529007900 Puller Inner Half. Touring 500 F.Puller Inner Half. Touring 500 F.
