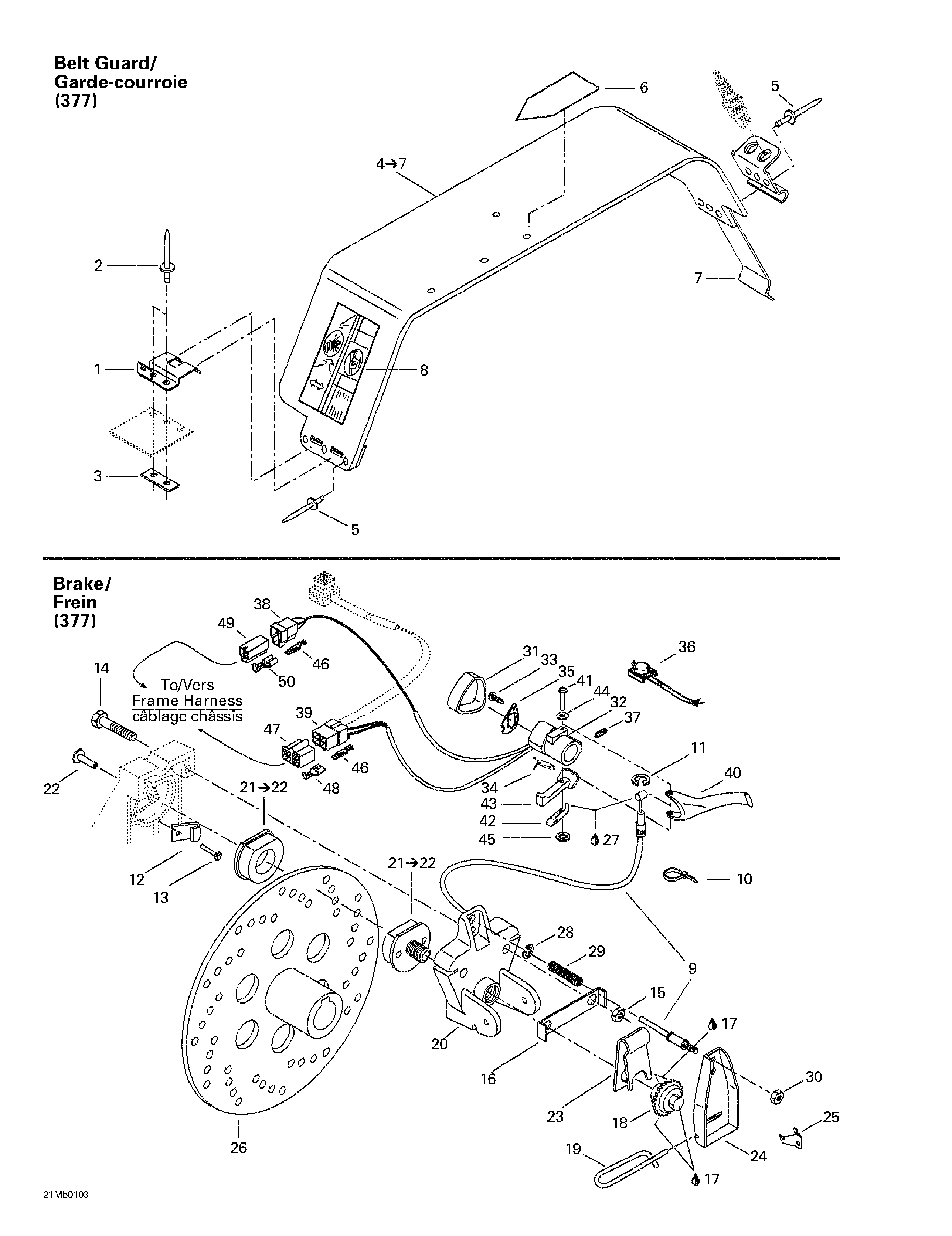

06- Brake And Belt Guard для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1518314200 Pulley Guard Bracket. Touring 380 F.Pulley Guard Bracket. Touring 380 F.
-
2390402200 Pop Rivet 3/16''. Touring 380 F.Pop Rivet 3/16''. Touring 380 F.
-
3518207500 Reinforcement. Touring 380 F.Reinforcement. Touring 380 F.
-
4417300012 Belt Guard Ass'y. Includes 4 - 7. Touring 380 F.Belt Guard Ass'y. Includes 4 - 7. Touring 380 F.
-
5390402200 Pop Rivet 3/16''. Touring 380 F.Pop Rivet 3/16''. Touring 380 F.
-
6516000132 Warning Label. Touring 380 F.Warning Label. Touring 380 F.
-
7414941800 Tool Box Spring. Touring 380 F.Tool Box Spring. Touring 380 F.
-
8418001702 Decal Adjustment Suspension. Touring 380 F.Decal Adjustment Suspension. Touring 380 F.
-
9414922500 Brake Cable. Touring 380 F.Brake Cable. Touring 380 F.
-
10414115200 Tie-Rap. Touring 380 F.Tie-Rap. Touring 380 F.
-
414115200 Tie-Rap (Europe). Touring 380 F.Tie-Rap (Europe). Touring 380 F.
-
11414274500 Circlip. Touring 380 F.Circlip. Touring 380 F.
-
12507022600 Wear Indicator. Touring 380 F.Wear Indicator. Touring 380 F.
-
14207085544 Hex. Screw M8 x 55. Touring 380 F.Hex. Screw M8 x 55. Touring 380 F.
-
15232581414 Elastic Stop Nut M8. Touring 380 F.Elastic Stop Nut M8. Touring 380 F.
-
16507020400 Locking Tab. Touring 380 F.Locking Tab. Touring 380 F.
-
17293800023 Loctite 767, Antiseize Lubricant, 454 g. Touring 380 F.Loctite 767, Antiseize Lubricant, 454 g. Touring 380 F.
-
18507019600 Wheel Ratchet. Touring 380 F.Wheel Ratchet. Touring 380 F.
-
19507027500 Hair Pin. Touring 380 F.Hair Pin. Touring 380 F.
-
20507027600 Caliper. Touring 380 F.Caliper. Touring 380 F.
-
21860701700 Brake Pad Kit. Includes 21 - 22. Touring 380 F.Brake Pad Kit. Includes 21 - 22. Touring 380 F.
-
22390409600 Pop Rivet 3/16''. Touring 380 F.Pop Rivet 3/16''. Touring 380 F.
-
23507020200 Release Spring. Touring 380 F.Release Spring. Touring 380 F.
-
24507021500 Lever. Touring 380 F.Lever. Touring 380 F.
-
25507009400 Ratchet Spring. Touring 380 F.Ratchet Spring. Touring 380 F.
-
26507029000 Brake Disk. Touring 380 F.Brake Disk. Touring 380 F.
-
27293550004 Dielectric Grease, 150 g. Touring 380 F.Dielectric Grease, 150 g. Touring 380 F.
-
28371901300 Circlip. Touring 380 F.Circlip. Touring 380 F.
-
29414460600 Spring. Touring 380 F.Spring. Touring 380 F.
-
30232561414 Elastic Stop Nut M6. Touring 380 F.Elastic Stop Nut M6. Touring 380 F.
-
31572073800 Brake Cover. Touring 380 F.Brake Cover. Touring 380 F.
-
32572086500 Brake Housing. Touring 380 F.Brake Housing. Touring 380 F.
-
33414473200 Self Tapping Screw. Touring 380 F.Self Tapping Screw. Touring 380 F.
-
34415085700 Brake Switch. Touring 380 F.Brake Switch. Touring 380 F.
-
35572086600 L.H. Plate. Touring 380 F.L.H. Plate. Touring 380 F.
-
36415085800 Dimmer Switch. Touring 380 F.Dimmer Switch. Touring 380 F.
-
37414440800 Set Screw. Touring 380 F.Set Screw. Touring 380 F.
-
38409204200 Male Terminal Housing (3 circuits). Touring 380 F.Male Terminal Housing (3 circuits). Touring 380 F.
-
39409209300 Male Terminal Housing (4 circuits). Touring 380 F.Male Terminal Housing (4 circuits). Touring 380 F.
-
40572025700 Brake Handle. Touring 380 F.Brake Handle. Touring 380 F.
-
41517229400 Pin. Touring 380 F.Pin. Touring 380 F.
-
42517229300 Spring. Touring 380 F.Spring. Touring 380 F.
-
43572025200 Brake Lever. Touring 380 F.Brake Lever. Touring 380 F.
-
44414729400 Spring Washer. Touring 380 F.Spring Washer. Touring 380 F.
-
45389804300 Push Nut. Touring 380 F.Push Nut. Touring 380 F.
-
46409210000 Male Terminal. Touring 380 F.Male Terminal. Touring 380 F.
-
47409204900 Female Terminal Housing (4 circuits). Touring 380 F.Female Terminal Housing (4 circuits). Touring 380 F.
-
48561503200 Female Terminal. Touring 380 F.Female Terminal. Touring 380 F.
-
49409204300 Female Terminal Housing (3 circuits). Touring 380 F.Female Terminal Housing (3 circuits). Touring 380 F.
-
50561503100 Female Terminal. Touring 380 F.Female Terminal. Touring 380 F.
