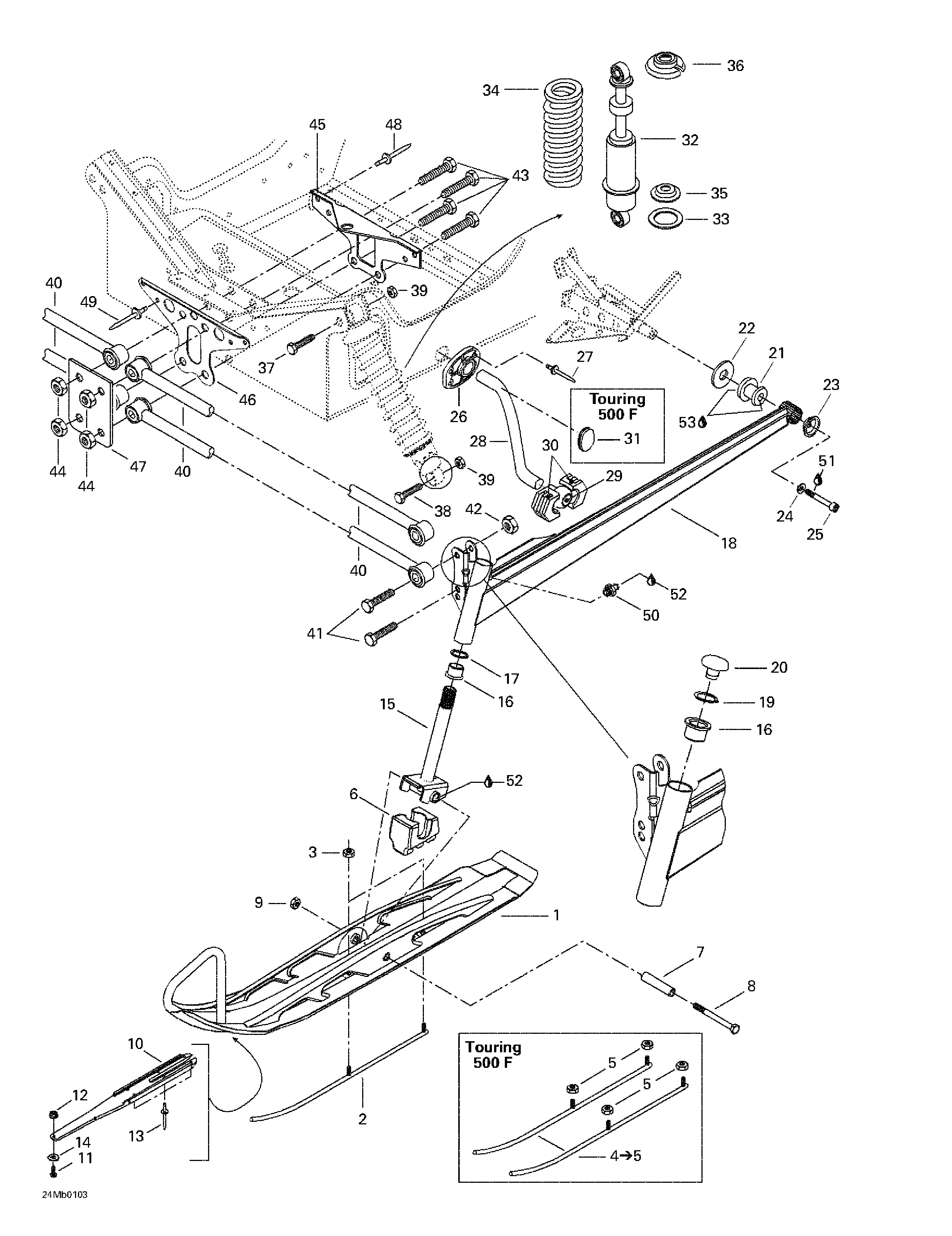

07- Front Suspension And Ski для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1505070370 SkiSki
-
2505070428 Runner. Touring 380 F.Runner. Touring 380 F.
-
3232581414 Elastic Stop Nut M8. Touring 380 F.Elastic Stop Nut M8. Touring 380 F.
-
4860502200 Runner Kit (Carbide). Includes 4 - 5. Touring 500 F.Runner Kit (Carbide). Includes 4 - 5. Touring 500 F.
-
5232581414 Elastic Stop Nut M8. Touring 500 F.Elastic Stop Nut M8. Touring 500 F.
-
6505070324 Ski StopperSki Stopper
-
7505070323 SpacerSpacer
-
8250000001 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
9233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
10505070087 Proactif ControlProactif Control
-
11205451646 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
12233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
13390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
14234061410 Flat Washer 6 mmFlat Washer 6 mm
-
15505070321 Ski LegSki Leg
-
16505070003 CushionCushion
-
17505070004 WasherWasher
-
18505070633 R.H. Swing ArmR.H. Swing Arm
-
505070634 L.H. Swing ArmL.H. Swing Arm
-
19371910400 CirclipCirclip
-
20572091300 CapCap
-
21570062200 DamperDamper
-
22503146700 WasherWasher
-
23506115800 CupCup
-
24234181401 Lock Washer 8 mmLock Washer 8 mm
-
25205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
26505070139 Bushing. Touring 500 F.Bushing. Touring 500 F.
-
27390402300 Pop Rivet 3/16''. Touring 500 F.Pop Rivet 3/16''. Touring 500 F.
-
28505070069 Stabilisator. Touring 500 F.Stabilisator. Touring 500 F.
-
29505070068 Ball Joint. Touring 500 F.Ball Joint. Touring 500 F.
-
30572069800 Sliding Block. Touring 500 F.Sliding Block. Touring 500 F.
-
31414916600 Nylon Plug. Touring 380 F.Nylon Plug. Touring 380 F.
-
32505070016 Shock. Touring 380 F.Shock. Touring 380 F.
-
505070395 Shock. Touring 500 F.Shock. Touring 500 F.
-
33503184400 Washer. Touring 380 F.Washer. Touring 380 F.
-
505070401 Washer. Touring 500 F.Washer. Touring 500 F.
-
34505070685 SpringSpring
-
35503165100 Spring Guide. Touring 380 F.Spring Guide. Touring 380 F.
-
503187500 Spring Guide. Touring 500 F.Spring Guide. Touring 500 F.
-
36503140600 Spring StopperSpring Stopper
-
37207006044 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
38207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
39233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
40580649700 Arm Ass'y (42'')Arm Ass'y (42'')
-
41207025044 Hex. Screw M12 x 50Hex. Screw M12 x 50
-
42232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
43230020044 Hex. Screw M12 x 100Hex. Screw M12 x 100
-
44232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
45517254900 Rear Link PlateRear Link Plate
-
46517254800 Front Link PlateFront Link Plate
-
47518306700 SupportSupport
-
49390404900 Pop Rivet 1/4''Pop Rivet 1/4''
-
50408200700 Grease FittingGrease Fitting
-
51293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
52219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
53293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
