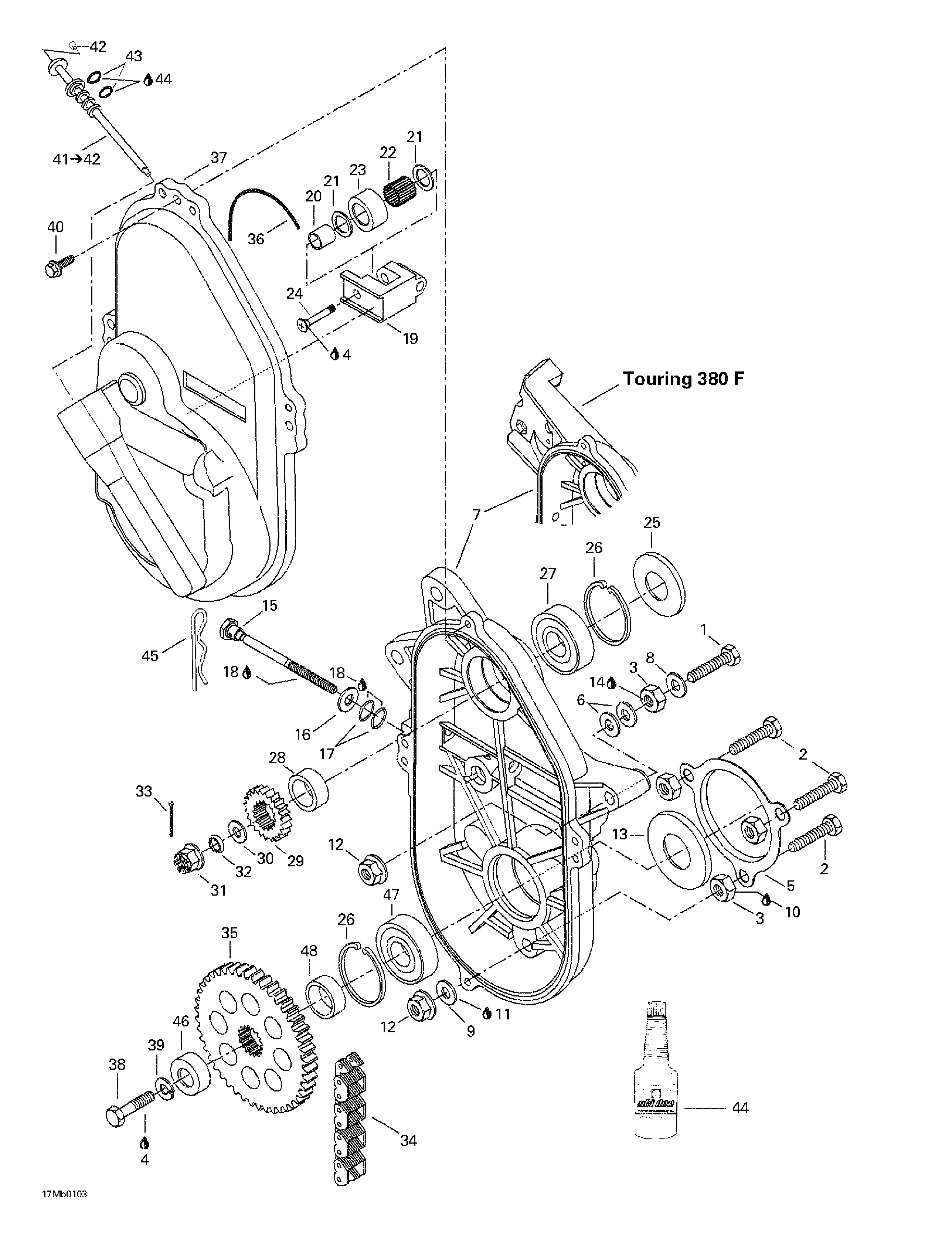

05- Chaincase для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1207107044 Hex. Screw M10 x 70Hex. Screw M10 x 70
-
2207104544 Hex. Screw M10 x 45Hex. Screw M10 x 45
-
3504083800 SpacerSpacer
-
4293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
5501022100 ProtectorProtector
-
6504073700 WasherWasher
-
7504151786 Chaincase. Touring 380 F.Chaincase. Touring 380 F.
-
504151785 Chaincase. Touring 500 F.Chaincase. Touring 500 F.
-
8503183800 WasherWasher
-
9234001460 Flat Washer 10 mm (Copper)Flat Washer 10 mm (Copper)
-
10293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
11413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
12233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
13581101700 Oil SealOil Seal
-
14293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
15732601311 Adjusting ScrewAdjusting Screw
-
16234001410 Flat Washer 10 mmFlat Washer 10 mm
-
17414484400 O-RingO-Ring
-
18219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
19504081000 TensionerTensioner
-
20504080200 SpacerSpacer
-
21504080300 WasherWasher
-
22405403000 Needle BearingNeedle Bearing
-
23414531300 RollerRoller
-
24732601144 ScrewScrew
-
25414882800 SealSeal
-
26371901700 Circlip (interior)Circlip (interior)
-
27504152006 Ball Bearing 6205Ball Bearing 6205
-
28504093400 ShimShim
-
29504070100 Sprocket (18 Tooth, Narrow)Sprocket (18 Tooth, Narrow)
-
30504087100 WasherWasher
-
31232210414 Castellated Nut M16Castellated Nut M16
-
32417000900 Spring WasherSpring Washer
-
33371801300 Cotter PinCotter Pin
-
34504151882 Driving Chain (70 Links-Narrow)Driving Chain (70 Links-Narrow)
-
35504070900 Sprocket Narrow (44 Tooth)Sprocket Narrow (44 Tooth)
-
36414362300 O-RingO-Ring
-
37080037100 Chaincase CoverChaincase Cover
-
38207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
39234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
40210263080 Hex. Forming Screw M6 x 30Hex. Forming Screw M6 x 30
-
41572092700 Filler Cap. Includes 41 - 42.Filler Cap. Includes 41 - 42.
-
42206540490 Set Socket Screw M4Set Socket Screw M4
-
43414969400 O-RingO-Ring
-
44413803300 Synthetic Chaincase Oil,. 12 x 355 mlSynthetic Chaincase Oil,. 12 x 355 ml
-
45414575600 Hair PinHair Pin
-
46501026200 CapCap
-
47504152006 Ball Bearing 6205Ball Bearing 6205
-
48504146400 SpacerSpacer
