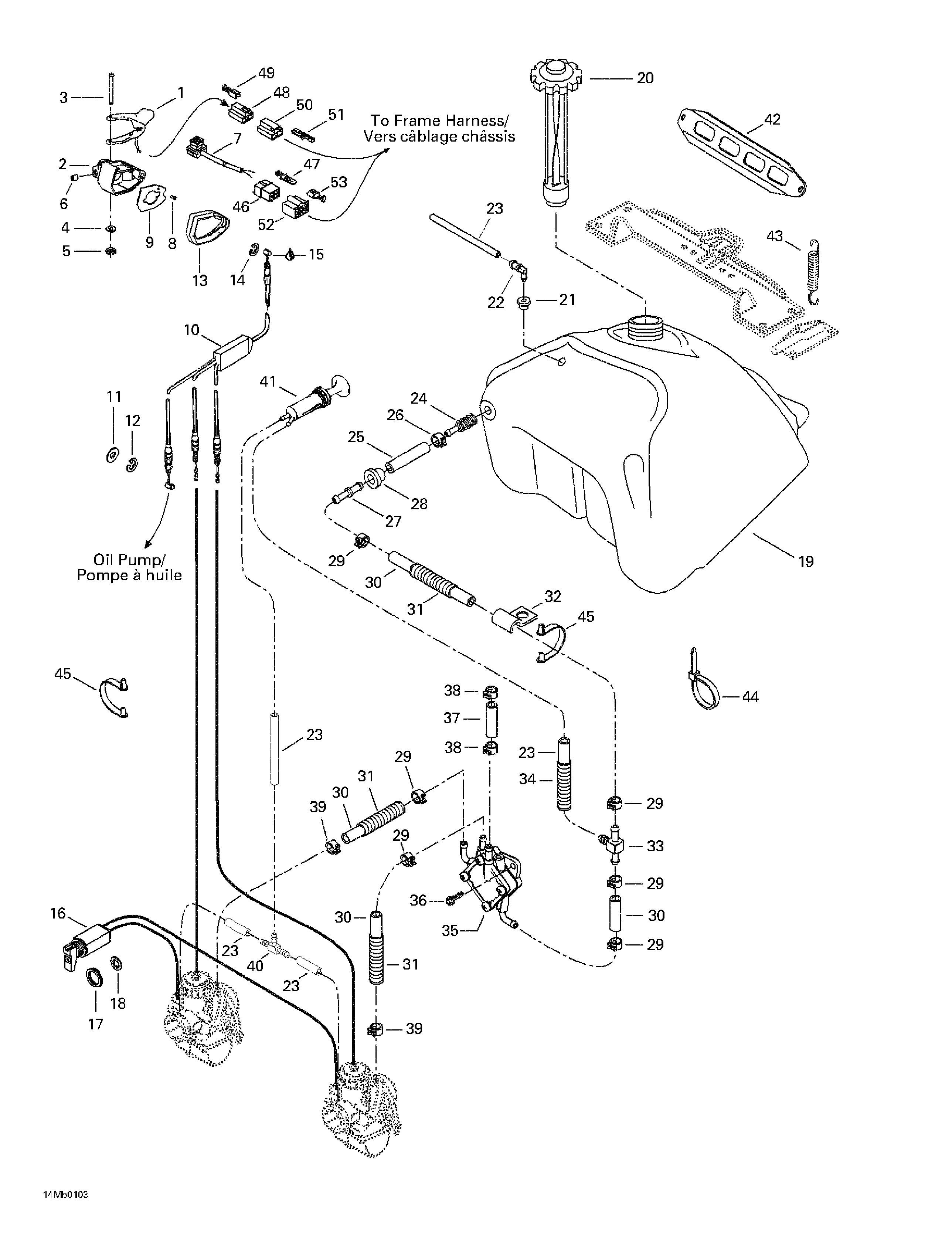

02- Fuel System для BRP Ski-Doo Touring 380 F/500F - 2001
-
№АртикулНазвание
-
1512059145 Heat Throttle Handle (30 mm). Touring 380 F.Heat Throttle Handle (30 mm). Touring 380 F.
-
512059144 Heat Throttle Handle (34 mm). Touring 500 F.Heat Throttle Handle (34 mm). Touring 500 F.
-
2512059334 Throttle Handle HousingThrottle Handle Housing
-
3414438700 Lever PinLever Pin
-
4414438900 WasherWasher
-
5414439000 CirclipCirclip
-
6414440800 Set Screw M8 x 10Set Screw M8 x 10
-
7512059146 Kill SwitchKill Switch
-
8414473200 Phillips ScrewPhillips Screw
-
9572099400 PlatePlate
-
10414883100 Throttle CableThrottle Cable
-
11414753300 WasherWasher
-
12414753500 CirclipCirclip
-
13572044600 Throttle CoverThrottle Cover
-
14414274500 CirclipCirclip
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
16414967000 Choke CableChoke Cable
-
17512059364 Plastic NutPlastic Nut
-
18394103300 Interior Tooth Lock WasherInterior Tooth Lock Washer
-
19572108900 Fuel TankFuel Tank
-
20572161200 Fuel CapFuel Cap
-
21570135100 GrommetGrommet
-
22414814100 Male ConnectorMale Connector
-
23415080100 Primer LinePrimer Line
-
24414865700 Fuel FilterFuel Filter
-
26513033011 ClampClamp
-
27414518500 Male ConnectorMale Connector
-
28570045500 GrommetGrommet
-
29414554800 Spring ClampSpring Clamp
-
30415080200 LineLine
-
31415079900 TubingTubing
-
32415018200 ClipClip
-
33414222500 T-FittingT-Fitting
-
34515175442 TubingTubing
-
35403801000 Fuel PumpFuel Pump
-
36210261680 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
37415079800 Rubber HoseRubber Hose
-
38414415200 Spring ClampSpring Clamp
-
39414420700 Spring ClampSpring Clamp
-
40414222400 T-FittingT-Fitting
-
41415060500 PrimerPrimer
-
42517249200 Fuel Tank SupportFuel Tank Support
-
43517182100 SpringSpring
-
44414115200 Tie RapTie Rap
-
45414379300 Cable ClipCable Clip
-
46409209300 Male Terminal Housing (4 circuits)Male Terminal Housing (4 circuits)
-
47409210000 Male TerminalMale Terminal
-
48409008500 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
49515175253 Female TerminalFemale Terminal
-
50409008600 Male Terminal Housing (3 circuits)Male Terminal Housing (3 circuits)
-
51409206100 Male TerminalMale Terminal
-
52409204900 Female Terminal Housing (4 circuits)Female Terminal Housing (4 circuits)
-
53561503200 Female TerminalFemale Terminal
